M5S SERIES - OIL FURNACE
SKU M5S
$0.00
SB-066-AW, SB-086-AW, SB-066-BW, SB-086-BW, SC-066-BW, SC-086-BW
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
M5S SERIES - OIL FURNACE
Product Details

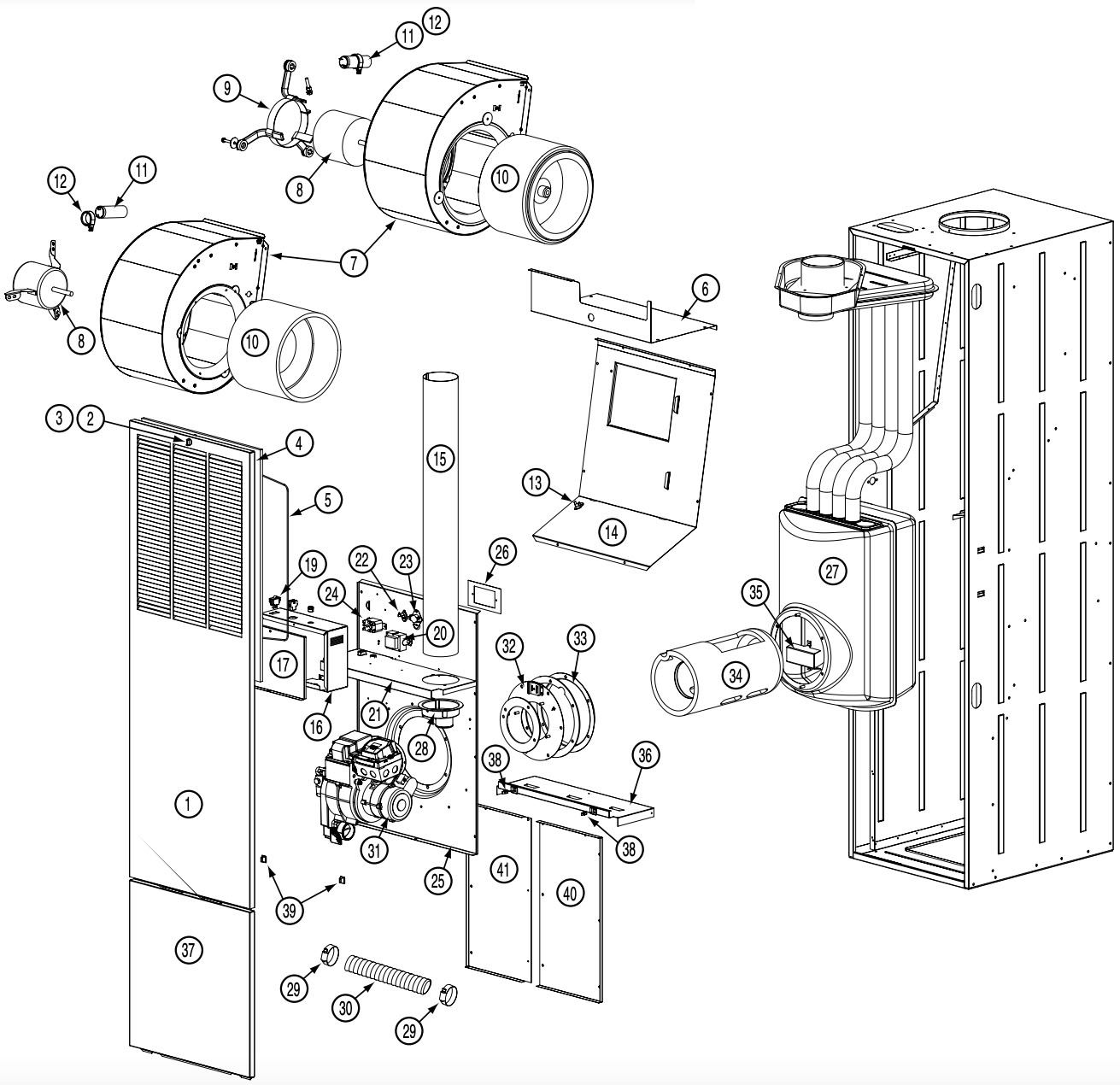

| # | DESCRIPTION | SB-066-AW | SB-086-AW | SB-066-BW | SB-086-BW | SC-066-BW | SC-086-BW | PART # | PRICE |
| 1 | Door - Louvered (White) | 903407 | 903407 | 903407 | 903407 | 903407 | 903407 | 233050 | $180.98 |
| 2 | Pawl - Latch | 618107 | 618107 | 618107 | 618107 | 618107 | 618107 | 233052 | $20.42 |
| 3 | Fastener - Pawl Latch |
606317 | 606317 | 606317 | 606317 | 606317 | 606317 | ||
| 4 | Filter - Air | 669064 | 669064 | 669064 | 669064 | 669064 | 669064 | P-2028 | $ 8.33 |
| 5 | Retainer - Filter Wire | 669065 | 669065 | 669065 | 669065 | 669065 | 669065 | 233055 | $21.92 |
| 6 | Upper Partition | 387220 | 387220 | 387220 | 387220 | 387220 | 387220 | - | |
| 7 | Blower Assembly | 903773 | 903773 | 903773 | 903773 | 903413 | 903413 | - | |
| 8 | Blower Motor | 903774 | 903774 | 903774 | 903774 | - | - | 233103 | $278.75 |
| Blower Motor | - | - | - | - | 903433 | 903433 | 233071 | $429.07 | |
| 9 | Mount Kit - Motor | Not Used | Not Used | Not Used | Not Used | 903489 | 903489 | - | |
| 10 | Blower Wheel | 667294 | 667294 | 667294 | 667294 | 667294 | 667294 | 233073 | $95.73 |
| 11 | Capacitor | 621435 | 621435 | 621435 | 621435 | 621435 | 621435 | 102120 | $ 5.12 |
| 12 | Strap - Capacitor | 606228 | 606228 | 606228 | 606228 | 606228 | 606228 | - | |
| 13 | Limit - Auxiliary | 626472 | 626472 | 626472 | 626472 | 626472 | 626472 | 233060 | $12.38 |
| 14 | Blower Deck | 495380 | 495380 | 495380 | 495380 | 495380 | 495380 | - | |
| 15 | Air Pipe | 386542 | 386542 | 386542 | 386542 | 386542 | 386542 | - | |
| 16 | Control Box | 264800 | 264800 | 264800 | 264800 | 264800 | 264800 | - | |
| 17 | Cover - Control Box | 264790 | 264790 | 264790 | 264790 | 264790 | 264790 | - | |
| 18 | Fuse - 3-AMP (Not Shown) | 632261 | 632261 | 632261 | 632261 | 632261 | 632261 | 233102 | $10.21 |
| 19 | Switch - On/Off | 632337 | 632337 | 632337 | 632337 | 632337 | 632337 | 233056 | $ 7.33 |
| 20 | Transformer | 621807 | 621807 | 621807 | 621807 | 621807 | 621807 | 233058 | $36.24 |
| 21 | Shelf - Close-off | 385280 | 385280 | 385280 | 385280 | 385280 | 385280 | - | |
| 22 | Limit - Air Temperature | 626469 | 626469 | 626469 | 626469 | 626469 | 626469 | 233065 | $13.98 |
| 23 | Switch - Fan Control | 626468 | 626468 | 626468 | 626468 | 626468 | 626468 | 233094 | $17.62 |
| 24 | Relay - Blower | 620537 | 620537 | 620537 | 620537 | 620537 | 620537 | - | |
| 25 | Air Casing - w/Insulation | 265020 | 265020 | 265020 | 265020 | 265020 | 265020 | - | |
| 26 | Shield - Insulation | 264541 | 264541 | 264541 | 264541 | 264541 | 264541 | - | |
| 27 | Heat Exchanger | 903422 | 921144 | 943422 | 921144 | 903422 | 921144 | - | |
| 28 | Coupling - Reducer | 669063 | 669063 | 669063 | 669063 | 669063 | 669063 | - | |
| 29 | Clamp - Hose | 606208 | 606208 | 606208 | 606208 | 606208 | 606208 | - | |
| 30 | Hose - Flexible | 663734 | 663734 | 663734 | 663734 | 663734 | 663734 | 238187 | $37.94 |
| 31 | Burner | 903945 | 903946 | 903945 | 903946 | 903945 | 903946 | - | |
| 32 | Plate - Burner | 383690 | 383690 | 383690 | 383690 | 383690 | 383690 | - | |
| 33 | Ring - Chamber | 383600 | 383600 | 383600 | 383600 | 383600 | 383600 | 233135 | $16.05 |
| 34 | Chamber - Combustion | 903423 | 903423 | 903423 | 903423 | 903423 | 903423 | - | |
| 35 | Bracket - Chamber | 383720 | 383720 | 383720 | 383720 | 383720 | 383720 | - | |
| 36 | Divider - Shelf | Not Used | Not Used | 355050 | 355050 | 355050 | 355050 | - | |
| 37 | Coil Door - (White) | Not Used | Not Used | 903094 | 903094 | 903094 | 903094 | 239844 | $91.28 |
| 38 | Strike - Coil Door | Not Used | Not Used | 668905 | 668905 | 668905 | 668905 | 231281 | $ 5.84 |
| 39 | Latch - Coil Door | Not Used | Not Used | 668420 | 668420 | 668420 | 668420 | 231280 | $ 6.53 |
| 40 | Plate - Right Close-off | Not Used | Not Used | 355490 | 355490 | 355490 | 355490 | - | |
| 41 | Plate - Left Close-off | Not Used | Not Used | 355490 | 355490 | 355490 | 355490 | - | |
| 42 | Gasket Kit - (Not Shown) | 730534 | 730534 | 730534 | 730534 | 730534 | 730534 | 233049 | $53.98 |
