M4RL SERIES FURNACE
SKU M4RL
$0.00
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
M4RL SERIES FURNACE
Product Details

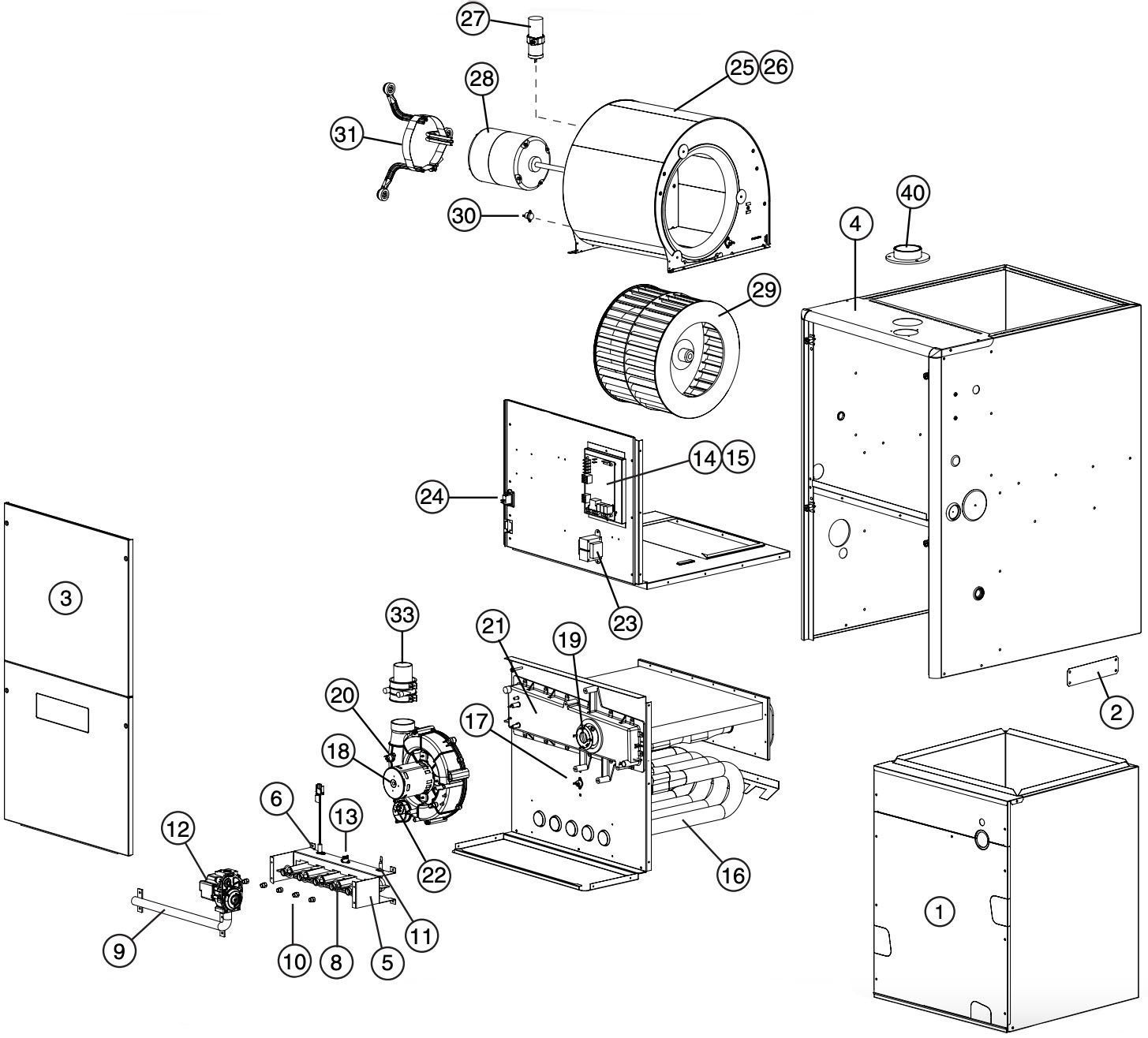

| # | DESCRIPTION | 090D-35C | PART# | PRICE |
| 1 | Cased Coil Wrapper | 920261 | 233147 | $503.34 |
| 2 | Attachment Bracket | 265450 | - | |
| 3 | Door Set | 904769 | - | |
| 4 | Top Panel | 2B3563R | - | |
| 5 | Burner Assembly | 904929 | - | |
| 6 | Ignitor Assembly - Nitride | 921074 | - | |
| 7 | Ignitor Bracket - (Not Shown) | 299261 | - | |
| 8 | Inshot Burner | 661134 | - | |
| 9 | Manifold - Burner Tube | 664240 | - | |
| 10 | Orifice - Main Burner (Nat) | 661047 | - | |
| Orifice - Main Burner (LP) | 661056 | 233169 | $12.08 | |
| 11 | Flame Sensor | 632484 | - | |
| 12 | Gas Valve | 624610 | 233105 | $135.15 |
| 13 | Roll-Out Switch | 626560 | - | |
| 14 | Control Board | 920915 | 233154 | $256.86 |
| 15 | Fuse | 632261 | 233102 | $10.21 |
| 16 | Heat Exchanger | 904871 | - | |
| 17 | Main Air Limit | 626562 | - | |
| 18 | Inducer Motor | 904798 | - | |
| 19 | Inducer Orifice | 669714 | - | |
| 20 | Inducer Limit | 626599 | 233162 | $13.89 |
| 21 | Outlet Header Box | 904803 | - | |
| 22 | Pressure Switch - (Inducer) | 632487 | - | |
| 23 | Transformer | 622341 | 233166 | $29.42 |
| 24 | Door Switch | 632125 | 233115 | $30.16 |
| 25 | Blower Assembly | 904684 | - | |
| 26 | Blower Housing Assembly | 297209R | - | |
| 27 | Capacitor | 622549 | - | |
| 28 | Motor - Blower | 904860 | - | |
| 29 | Wheel - Blower | 667280 | - | |
| 30 | Blower Limit | 626581 | - | |
| 31 | Motor Mount Kit - Repl. | 904951 | - | |
| 32 | Filter - 18" x 18" x 1" (Not Shown) | 669779 | - | |
| 33 | Inline Drain Assembly | 664435 | - | |
| 34 | Drain Tube - Soft 23" (Not Shown) | 664434 | - | |
| 35 | Drain Tube - Hard "J" (Not Shown) | 663706 | - | |
| 36 | Drain Tube - Soft "J" 30" (Not Shown) | 663707 | - | |
| 37 | Tube - Soft 5.5" (Not Shown) | 664520 | - | |
| 38 | Hose - High Temperature (Not Shown) | 263967 | - | |
| 39 | Set of Wires - (Not Shown) | M0036029 | - | |
| 40 | Finish Flange - Air Inlet | 664633 | - |
