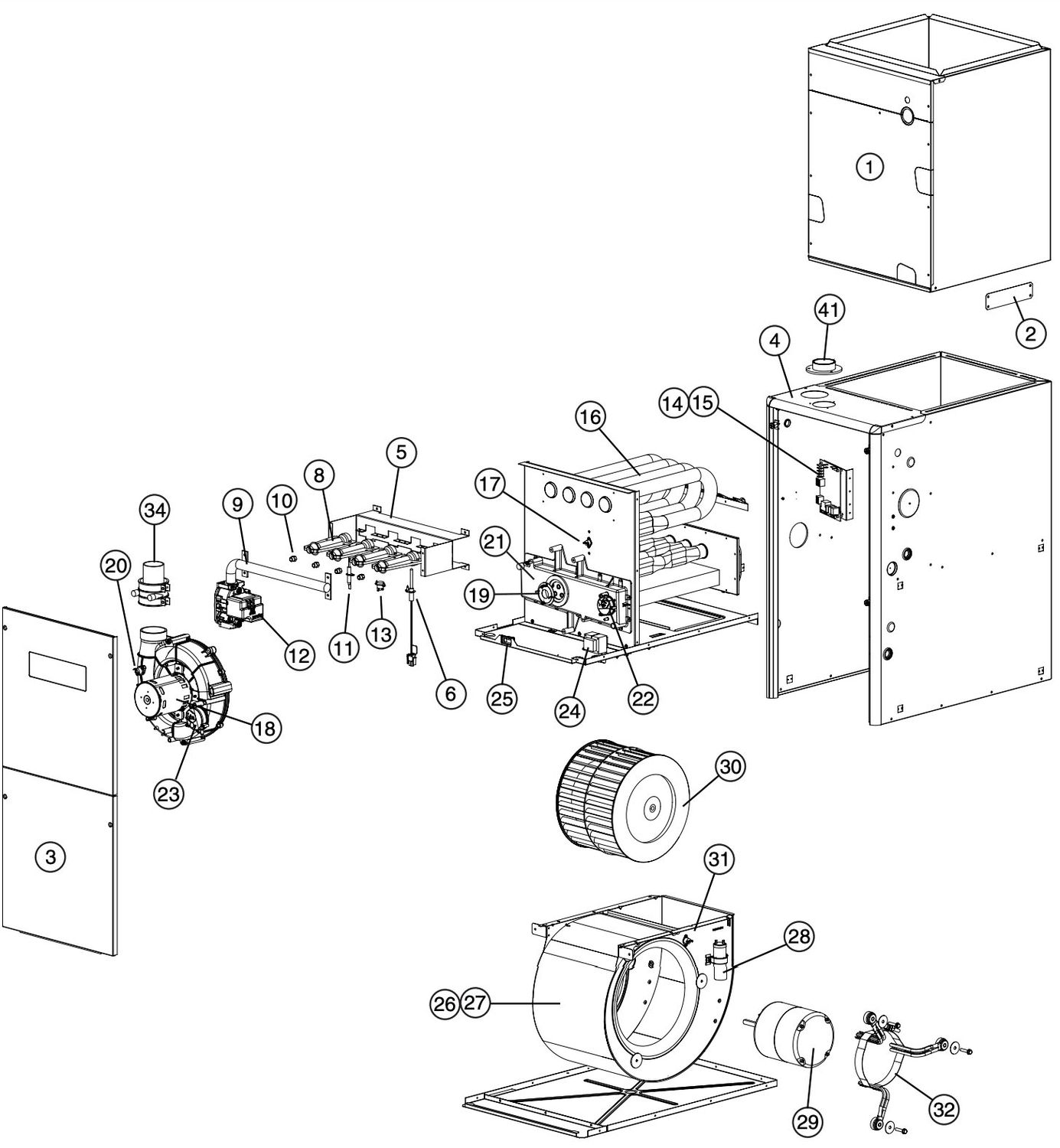

M4RC Furnace Diagram
+2

M4RC SERIES FURNACE - Upflow / Horizontal

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU M4RC
$0.00
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
M4RC SERIES FURNACE - Upflow / Horizontal
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
# DESCRIPTION 054D-24B 072-35C 090D-35C 108D-45D PART # PRICE
1 Cased Coil Wrapper
Cased Coil Wrapper
Cased Coil Wrapper
920259
-
-
-
920260
-
-
-
920261
-
920262
-
233146
-
233147
$406.80

$503.34
2 Attachment Bracket 265450 265450 265450 265450 -
3 Door Set 904768 904769 904769 904770 -
4 Top Panel 2B3552R 2B3553R 2B3553R 2B3554R -
5 Burner Assembly 904927 904928 904929 904930 -
6 Ignitor Assembly - Nitride 921074 921074 921074 921074 -
7 Ignitor Bracket - (Not Shown) 299261 299261 299261 299261 -
8 Inshot Burner 661134 661134 661134 661134 -
9 Manifold - Burner Tube 664238 664239 664240 664241 -
10 Orifice - Main Burner (Nat) 661047 661047 661047 661047 -
Orifice - Main Burner (LP) 661056 661056 661056 661056 233169 $12.08
11 Flame Sensor 632484 632484 632484 632484 -
12 Gas Valve 624610 624610 624610 624610 233105 $135.15
13 Roll-Out Switch
Roll-Out Switch
626558
-
-
626559
-
626559
-
626559
233170
-
$ 7.73
-
14 Control Board 920915 920915 920915 920915 233154 $256.86
15 Fuse 632261 632261 632261 632261 233102 $10.21
16 Heat Exchanger 904869 904870 904871 904791 -
17 Main Air Limit 626563 626563 626562 626563 -
18 Inducer Motor 904798 904798 904798 904798 -
19 Inducer Orifice
Inducer Orifice
669712
-
-
669715
-
669717
-
Not Used
233158
-
$ 6.78
-
20 Inducer Limit 626599 626599 626599 626599 233162 $13.89
21 Outlet Header Box 904802 904803 904803 904804 -
22 Pressure Switch - (condensate) 632491 632491 632491 632491 -
23 Pressure Switch - (Inducer) 632487 632493 632493 632493 -
24 Transformer 622341 622341 622341 622341 233166 $29.42
25 Door Switch 632125 632125 632125 632125 233115 $30.16
26 Blower Assembly 904682 904683 904684 904684 -
27 Blower Housing Assembly 297207R 297204R 297209R 297209R -
28 Capacitor 622545 622549 622549 622549 -
29 Motor - Blower
Motor - Blower
Motor - Blower
904858
-
-
-
904859
-
-
-
904860
-
-
904860
233150
233151
-
$439.54
$509.25
-
30 Wheel - Blower
Wheel - Blower
667258
-
-
667207
-
667280
-
667280
230257
-
$107.01
-
31 Blower Limit 626581 626581 626581 626581 -
32 Motor Mount Kit - Repl. 904951 904980 904951 904951 -
33 Filter - (Not Shown) 669784 669785 669785 669786 -
34 In-Line Drain Assembly 664435 664435 664435 664435 -
35 Drain Tube - Soft 23" (Not Shown) 664434 664434 664434 664434 -
36 Drain Tube - Hard "J" (Not Shown) 663706 663706 663706 663706 -
37 Drain Tube - Soft "J" 30" (Not Shown) 663707 663707 663707 663707 -
38 Drain Tube - Soft 6.5" (Not Shown) 663727 663727 663727 663727 -
38 Hose - High Temperature (Not Shown) 263967 263967 263967 263967 -
40 Set of Wires - (Not Shown) M0036003 M0036007 M0036007 M0036007 -
41 Finish Flange - Air Inlet 664633 664633 664633 664633 -
Show More
