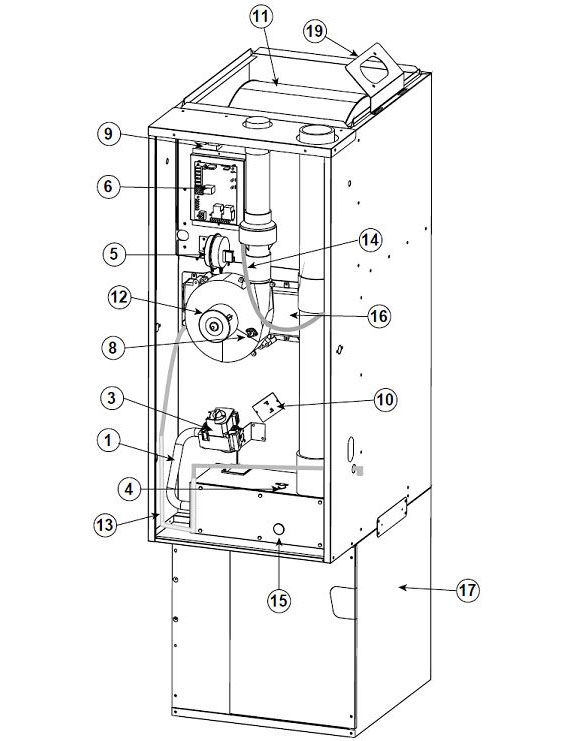

M2RL Furnace Diagram
+2

M2RL SERIES FURNACE

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU M2RL
$0.00
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
M2RL SERIES FURNACE
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
Brand: MILLER

Downflow Condensing Furnace

# DESCRIPTION 60,000 80,000 100,000 PART # PRICE
1 Manifold 663649 663649 663650 -
2 Flame Sensor (Not Shown) 632316 632316 632316 102880 $28.14
3 Gas Valve 624610 624610 624610 233105 $135.15
4 Limit Switch - Roll-Out (155°F) (Not Shown) 626422 626422 626422 -
5 Switch - Pressure 632252 632252 632252 239660 $31.15
6 Control Board - Intergrated 903106 903106 903106 102866 $353.36
7 Switch - Blower Door 632319 632319 632319 233115 $30.16
8 Limit Switch - Vent Safety (160°F) 626461 626461 626461 238273 $12.35
9 Transformer 621486 621486 621486 239600 $35.41
10 Limit Switch - (135°F) 626447 -
Limit Switch - (140°F) 626446 -
Limit Switch - (160°F) 626484 -
11 Blower Assembly 902815 902815 902815 238290 $382.98
12 Blower - Inducer (with gasket)* 903962 903962 903962 239661 $434.91
Blower - Inducer (with gasket) 902977 902977 902977 239661 $434.91
13 Tube - J Trap Hard 663706 663706 663706 -
14 Drain Assembly - In-Line 663714 663714 663714 233136 $80.19
15 Burner Box Assembly - (Nat. Gas Ready) D09425 -
Burner Box Assembly - (Nat. Gas Ready) D09421 D09423 -
Burner Box Assembly - (LP Gas Ready) D09426 -
Burner Box Assembly - (LP Gas Ready) D09422 D09424 -
16 Box - Header Outlet Plus Sealant 903104 903104 903104 -
17 Cased Coil Wrapper 914958 914958 914958 -
18 Filter - (18 x 20 x 1) (Not Shown) 668860 668860 668860 -
19 Bracket - VentilAire 265440 265440 265440 -
20 Bracket - Attachment 265450 265450 265450 -
21 Turbulator - (Not Shown) D01220 D01220 D01220 -
22 Limit Switch - Auxillary (120F) (Not Shown) 626444 626444 626444 -
23 Orifice - Inducer (Not Shown) 151884 151884 151888 -
24 Inshot Burner - (Not Shown) 660812 660812 -
Inshot Burner - (Not Shown) 660923 -
25 Orifice - Natural Gas #45 (Not Shown) 661045 (4) 661045 (5) 233080 $13.14
Orifice - Natural Gas #49 (Not Shown) 661049 661049 -
Orifice - LP Gas #55 (Not Shown) 661055 (4) 661055 (5) -
Orifice - LP Gas #56 (Not Shown) 661056 233169 $12.08
26 Ignitor - (Not Shown) 903110 903110 903110 233092 $64.43
27 Heat Exchanger - (Not Shown) D00603 D00603 D00604 -
28 Capacitor Assembly - 10 MFD, 370V (Not Shown) 621435 621435 621435 102120 $ 5.12
29 Blower Wheel - CCW (Not Shown) 667271 667271 667271 -
30 Motor - 1/2 H.P. (Not Shown) 902128 902128 902128 238290 $382.98
31 Access Door - (Not Shown) 903116 903116 903116 -
* Note: Effective Date: 09/01/01
