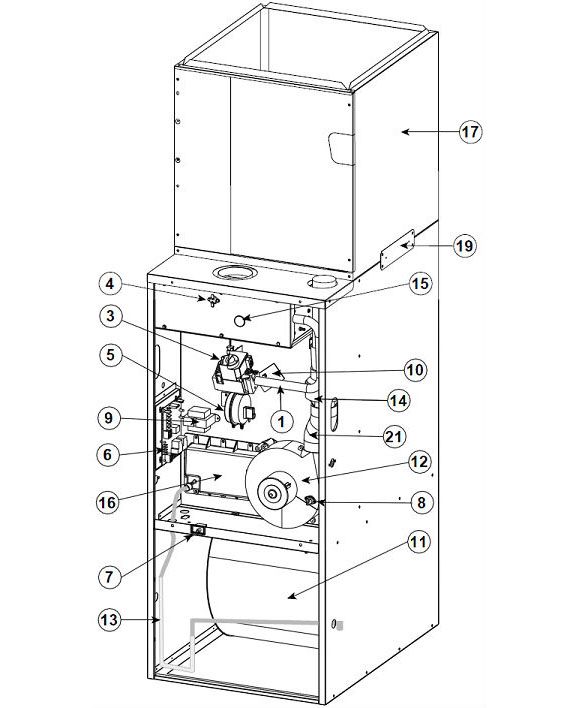

M2RC Furnace Diagram
+2

M2RC SERIES FURNACE - Upflow Condensing Furnace

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU M2RC
$0.00
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
M2RC SERIES FURNACE - Upflow Condensing Furnace
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

# DESCRIPTION 80,000
BTUH Input
100,000
BTUH Input
PART # PRICE
1 Manifold 663551 663552 -
2 Flame Sensor - (Not Shown) 632316 632316 102880 $28.14
3 Gas Valve 624610 624610 233105 $135.15
4 Roll-Out Limit Switch - (155°F) (Not Shown) 626422 626422 -
5 Pressure Switch 632252 632252 239660 $31.15
6 Control Board - Intergrated 903106 903106 102866 $353.36
7 Switch - Blower Door 632319 632319 233115 $30.16
8 Limit Switch - Vent Safety (160°F) 626461 626461 238273 $12.35
9 Transformer 621486 621486 239600 $35.41
10 Limit Switch - (210°F) 626425 238275 $16.99
Limit Switch - (195°F) 626419 -
11 Blower Assembly 902815 902815 238290 $382.98
12 Blower - Inducer (with gasket)* 903962 903962 239661 $434.91
Blower - Inducer (with gasket) 902977 902977 239661 $434.91
13 Tube - J Trap Hard 663706 663706 -
14 Drain Assembly - In-Line 663714 663714 233136 $80.19
15 Burner Box Assembly - (Nat. Gas Ready) D09391 D09393 -
Burner Box Assembly - (LP Gas Ready) D09392 D09394 -
16 Box - Header Outlet Plus Sealant 903104 903104 -
17 Cased Coil Wrapper 914958 914958 -
18 Filter - (18 5/8 x 26 1/2 x 1/4) (Not Shown) 669300 669300 -
19 Bracket - Attachment 265450 265450 -
20 Turbulator (Not Shown) D01220 D01220 -
21 Coupling - Neoprene 663709 663709 -
22 Orifice - Inducer (Not Shown) 151886 151884 -
23 Inshot Burner (Not Shown) 660812 660812 -
24 Orifice - Natural Gas #45 (Not Shown) 661045 (4) 661045 (5) 233080 $13.14
Orifice - LP Gas #55 (Not Shown) 661055 (4) 661055 (5) -
25 Ignitor (Not Shown) 903110 903110 233092 $64.43
26 Heat Exchanger Assembly (Not Shown) D04540 D04550 -
27 Capacitor Assembly - 10 MFD, 370V (Not Shown) 621435 621435 102120 $ 5.12
28 Blower Wheel - CCW (Not Shown) 667271 667271 -
29 Motor - 1/2 HP (4 Speed) (Not Shown) 902128 902128 238290 $382.98
30 Access Doors - Set (Not Shown) 903113 903113 -
* Note: Effective Date: 09/01/01
