M1S OIL BURNER
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

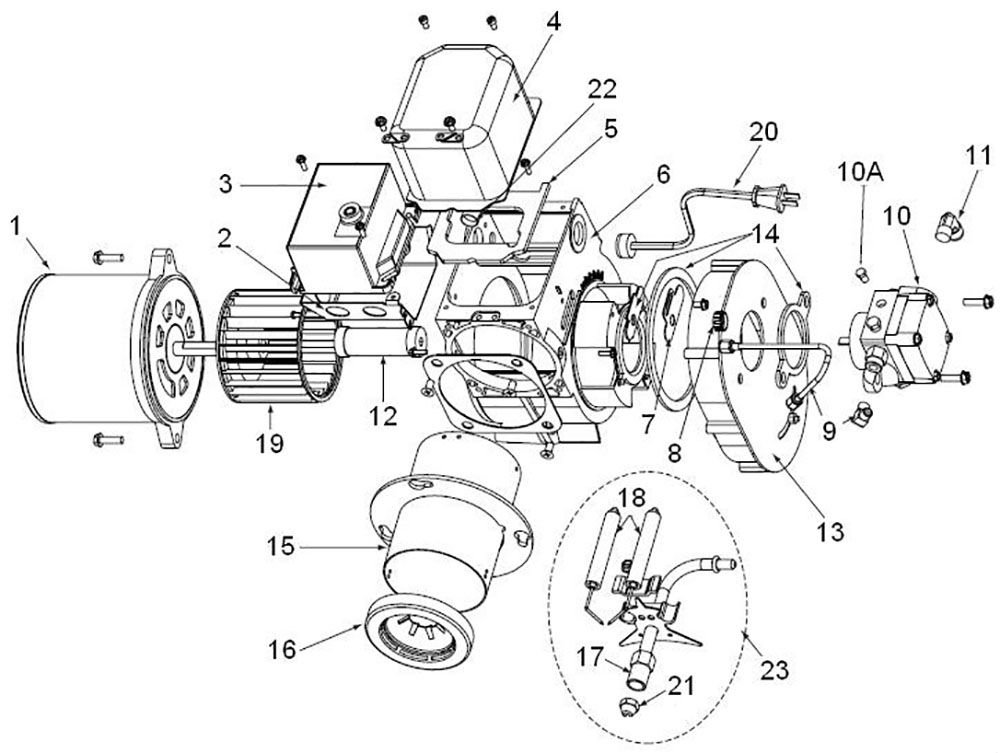

Parts List-AF-10 Beckett-Oil Burners
# Description Qty Part Part Number Price
1 Motor
Motor
1
1
621945
912541
-
-


2 Mounting Box 1 660591 -
3 Primary Control - HW, 74564
Primary Control - HW, 74554
Primary Control - WR
Primary Control - HW
1
1
1
1
624647
624629
624284
624503
231164
231160
-
-
$243.85
$240.82
-
-
4 Transformer - 517714
Transformer
1
1
621943
621607
238345
238344
$180.91
$161.31
5 Gasket Kit - (Transformer) 1 660914 -
6 Housing Assy - Burner 1 660282 -
7 Plate - Escutcheon 1 660592 -
8 Locknut 1 660593 -
9 Oil Line Kit 1 660594 230324 $173.26
10

10A
Fuel Pump - (Cleancut)
Fuel Pump
Solenoid Valve Kit
1
1
1
622090
660323
624648
-
239736
231166

$529.76
$29.31
11 Elbow - Street 1 660595 -
12 Coupling 1 660596 239814 $39.25
13 Inlet Air Box Assembly
Inlet Air Box Assembly
1
1
660928
356431
239813
-
$130.93
-
14 Gasket Kit - (Inlet Box) 1 660915 -
15 Air Tube Assembly 1 660918 -
16 Burner Head (66 & 86), F3 Head 1 660468 -
17 Nozzle Adapter 1 660059 -
18 Electode Kit 1 660917 -
19 Blower Wheel 1 660048 -
20 Cord - Power 1 660601 -
21 Nozzle - 66
Nozzle - 86
1
1
660606
660605
-
238336

$14.18
22 Flame Detector - WR
Flame Detector - HW
1
1
660602
660603
-
231373

$93.42
23 Gun Drawer Assembly 1 660916 -
