M1S,B SERIES

Name: M1S,B SERIES
SKU: M1SB
Availability: InStock

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS

SKU M1SB

$0.00

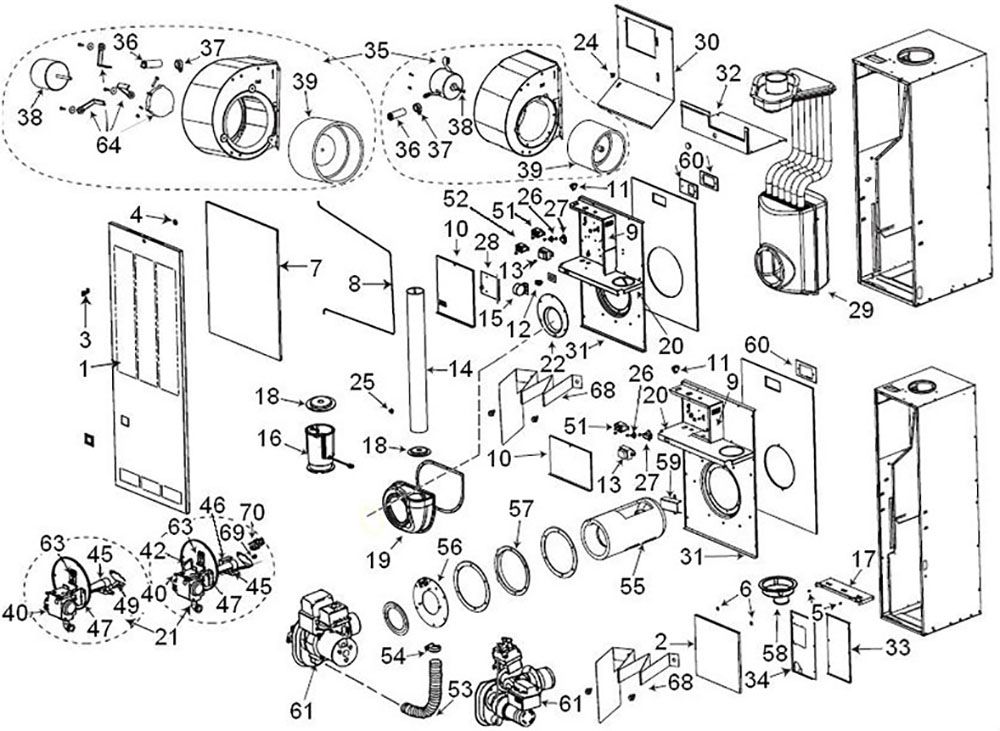

M1SA66, M1SB86, M1SC66, M1SC86, M1BA66, M1BB86, M1BC66, M1BC86

Available Components

(1) LOUVERED DOOR - (White) 233050

(2) DOOR - Coil (White) 239844

(3) PAWL LATCH 233052

(5) STRIKE - Door 231281

(6) LATCH - Door 231280

(7) FILTER - Air P-2028

(8) RETAINER WIRE - Filter 233055

(11) SWITCH - On/Off 233056

TRANSFORMER 233058

(24) LIMIT AUXILIARY 233060

(26) LIMIT - Air Temp 233065

(26) LIMIT - Air Temp 233063

(27) SWITCH - Fan Control 233094

(29) HEAT EXCHANGER 233096

(36) CAPACITOR 102120

(38) BLOWER MOTOR 239602

(38) BLOWER MOTOR 233103

(38) BLOWER MOTOR 233071

(39) BLOWER WHEEL 233073

(39) BLOWER WHEEL 231026

(39) BLOWER WHEEL 230257

(51) RELAY - Blower 231348

(55) COMBUSTION CHAMBER 233131

(57) RING - Chamber 233135

(61) BURNER - (Conversion) 231194

(66) FUSE - 3A (not shown) 233102

M1S,B SERIES

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS

Product Details

Direct Vent, Forced Air Gas & Oil Furnace

#	DESCRIPTION	M1SA 66	M1SB 86	M1SC		M1BA 66	M1BB 86	M1BC		PART #	PRICE
#	DESCRIPTION	M1SA 66	M1SB 86	66	86	M1BA 66	M1BB 86	66	86	PART #	PRICE
1	Louvered Door - (White)	903407	903407	903407	903407	903407	903407	903407	903407	233050	$180.98
2	Door - Coil (White)	903094	903094	903094	903094	903094	903094	903094	903094	239844	$91.28
3	Pawl Latch	632330	632330	632330	632330	632330	632330	632330	632330	233052	$20.42
4	Fastener - Pawl Latch	606243	606243	606243	606243	606243	606243	606243	606243	-
5	Strike - Door	668905	668905	668905	668905	668905	668905	668905	668905	231281	$ 5.84
6	Latch - Door	668420	668420	668420	668420	668420	668420	668420	668420	231280	$ 6.53
7	Filter - Air	669064	669064	669064	669064	669064	669064	669064	669064	P-2028	$ 8.33
8	Retainer Wire - Filter	669065	669065	669065	669065	669065	669065	669065	669065	233055	$21.92
9	Control Box	264800	264800	264800	264800	264800	264800	264800	264800	-
10	Cover - Control Box	264790	264790	264790	264790	264790	264790	264790	264790	-
11	Switch - On/Off	632337	632337	632337	632337	632337	632337	632337	632337	233056	$ 7.33
13	Transformer	621807	621807	621807	621807	621807	621807	621807	621807	233058	$30.16
14	Air Pipe	386542	386542	386542	386542	386542	386542	386542	386542	-
17	Shelf Divider	355050	355050	355050	355050	355050	355050	355050	355050	-
20	Shelf Divider	385280	385280	385280	385280	385280	385280	385280	385280	-
23	Gasket Kit	730054	730054	730054	730054	730054	730054	730054	730054	-
24	Limit Auxillary	626472	626472	626472	626472	626472	626472	626472	626472	233060	$12.38
26	Limit - Air Temp	626469	626469	626469	626469	-	-	-	-	233065	$13.98
26	Limit - Air Temp	-	-	-	-	626470	626470	626470	626470	233063	$13.89
27	Switch - Fan Control	626468	626468	626468	626468	626468	626468	626468	626468	233094	$17.62
29	Heat Exchanger Heat Exchanger	903421 -	- 903422	903421 -	- 903422	903421 -	- 903422	903421 -	- 903422	- 233096	$1135.86
30	Blower Deck	495380	495380	495380	495380	495380	495380	495380	495380	-
31	Air Casing	265020	265020	265020	265020	265020	265020	265020	265020	-
32	Partition - Upper	387220	387220	387220	387220	387220	387220	387220	387220	-
33	Right Close-off Plate	355490	355490	355490	355490	355490	355490	355490	355490	-
34	Left Close-off Plate	355480	355480	355480	355480	355480	355480	355480	355480	-
35	Blower Assembly	903410	903773	903413	903413	903410	903773	903413	903413	-
36	Capacitor	-	621435	621435	621435	-	621435	621435	621435	102120	$ 5.12
37	Capacitor Strap	-	606228	606228	606228	-	606228	606228	606228	-
38	Blower Motor	901873	-	-	-	901873	-	-	-	239602	$287.20
	Blower Motor	-	903774	-	-	-	903774	-	-	233103	$278.75
	Blower Motor	-	-	903433	903433	-	-	903433	903433	233071	$429.07
39	Blower Wheel	667294	-	-	-	667294	-	-	-	233073	$95.73
	Blower Wheel	-	667037	-	-	-	667037	-	-	231026	$101.92
	Blower Wheel	-	-	667258	667258	-	-	667258	667258	230257	$107.01
51	Relay - Blower	620537	620537	620537	620537	620537	620537	620537	620537	231348	$26.19
53	Hose - Flexible	663734	663734	663734	663734	663734	663734	663734	663734	-
54	Clamp - Hose (2)	606208	606208	606208	606208	606208	606208	606208	606208	-
55	Combustion Chamber	903423	903423	903423	903423	903423	903423	903423	903423	233131	$274.37
56	Plate - Burner	383690	383690	383690	383690	383690	383690	383690	383690	-
57	Ring - Chamber	383600	383600	383600	383600	383600	383600	383600	383600	233135	$16.05
58	Coupling - Reducer	669063	669063	669063	669063	669063	669063	669063	669063	-
59	Bracket - Chamber	383720	383720	383720	383720	383720	383720	383720	383720	-
60	Sheild - Insulation	264541	264541	264541	264541	264541	264541	264541	264541	-
61	Burner - (Conversion) Burner - (Conversion)	903945 -	903946 -	- 903426	903427 -	903427 -	903427 -	- 903426	903427 -	- 231194	$1603.90
66	Fuse - 3A (not shown)	632261	632261	632261	632261	632261	632261	632261	632261	233102	$10.21
