M1GH SERIES (GAS & OIL FURNACE)

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU M1GH
$0.00
M1GH056, M1GH070, M1GH077, M1GH090
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
M1GH SERIES (GAS & OIL FURNACE)
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
Brand: MILLER

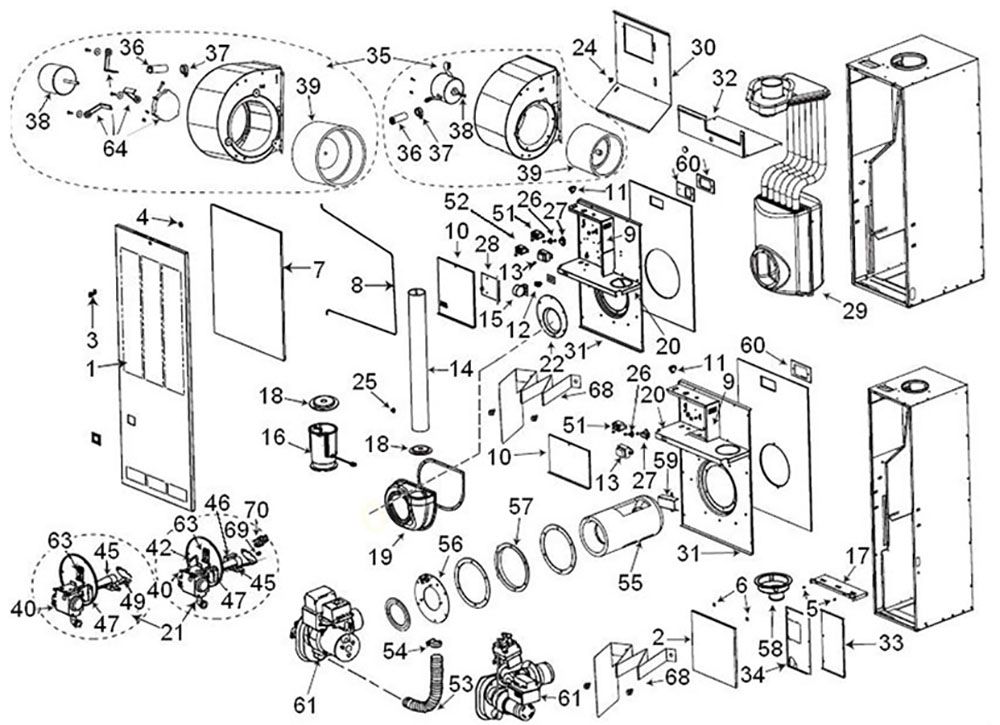

# DESCRIPTION M1GH PART # PRICE
056 070 077 090
1 Door - Louvered (White) 903407 903407 903407 903407 233050 $180.98
2 Door - Coil (White) 903094 903094 903094 903094 239844 $91.28
3 Pawl Latch 632330 632330 632330 632330 233052 $20.42
4 Fastener - Pawl Latch 606243 606243 606243 606243 -
5 Strike - Door 668905 668905 668905 668905 231281 $ 5.84
6 Latch - Door 668420 668420 668420 668420 231280 $ 6.53
7 Filter - Air 669064 669064 669064 669064 P-2028 $ 8.33
8 Retainer Wire - Filter 669065 669065 669065 669065 233055 $21.92
9 Control Box 386720 386720 386720 386720 -
10 Cover - Control Box 264800 264800 264810 264810 -
11 Switch - On/Off 632337 632337 632337 632337 233056 $ 7.33
12 Switch - Fan Auto/On 632338 632338 632338 632338 -
13 Transformer 621807 621807 621807 621807 233058 $36.24
14 Air Pipe 386543 386543 387210 387210 -
15 Switch - Pressure - - 632332 632332 233048 $34.86
16 Blower Assy. - Combustion - - 903404 903404 233047 $151.86
17 Shelf Divider 355050 355050 355050 355050 -
18 Flange - Air Orifice 267112 267114 267115 267117 -
19 Air Box - Lower D06120 D06120 D06120 D06120 -
20 Shelf Divider 385220 385220 385220 385220 -
21 Burner - (less Orifice) 903405 903405 903405 903405 -
22 Plate - Entry-Gas 383610 383610 383610 383610 -
23 Gasket Kit 730534 730534 730534 730534 233049 $53.98
24 Limit Auxiliary 626472 626472 626472 626472 233060 $12.38
25 Limit - Flame Roll-out 626375 626375 - - 233061 $12.35
26 Limit - Air Temp (F/056) 626482 - - - -
Limit - Air Temp (F/070 - 077) - 626470 626481 - 233063 $13.89
Limit - Air Temp (F/090) - - - 626470 233065 $13.98
27 Switch - Fan Control 626468 626468 626468 626468 233094 $17.62
29 Heat Exchanger 903415 903417 903415 903416 -
30 Blower Deck 495380 495380 495380 495380 -
31 Air Casing 265010 265010 265010 265010 -
32 Partition - Upper 387220 387220 387220 387220 -
33 Plate - Right Close-off 355490 355490 355490 355490 -
34 Plate - Left Close-off 355480 355480 355480 355480 -
35 Blower Assembly
Blower Assembly
Blower Assembly - (C unit)
Blower Assembly - (1650 CFM)
Blower Assembly - (D unit)
-
903409
-
-
-
-
903410
-
-
-
903411
-
-
-
-
903411
-
-
-
-
239603
-
-
-
-
$620.27



36 Capacitor
Capacitor
- (C unit)
Capacitor - (D unit)
-
-
-
-
-
-
621434
-
-
621434
-
-
238098
-
-
$ 5.07

37 Strap - Capacitor - - 606228 606228 -
38 Blower Motor 902042 - - - 231052 $546.48
Blower Motor - 901873 - - 239602 $287.20
Blower Motor - - 901874 901874 239603 $620.27
Blower Motor - (C unit) - - - - -
Blower Motor - (D unit) - - - - -
39 Blower Wheel 667294 667294 - - 233073 $95.73
Blower Wheel - - 667037 667037 231026 $101.92
Blower Wheel - (C ton) - - - - -
Blower Wheel - (D ton) - - - - -
40 Gas Valve - (Robert Shaw) 624583 624583 624583 624583 231335 $376.45
Gas Valve - (Honeywell) 624609 624609 624609 624609 -
41 Thermocouple (not shown) 631132 631132 631132 631132 231350 $40.50
42 Pilot Tube 903435 903435 903435 903435 -
43 Orifice - Natural Gas (not shown) 661029 - - - 233076 $13.14
Orifice - Natural Gas (not shown) - 661024 - - 233077 $12.08
Orifice - Natural Gas (not shown) - - 661021 - 233078 $12.27
Orifice - Natural Gas (not shown) - - - 661017 233079 $12.08
44 Orifice - LP Gas (not shown) 661045 - - - 233080 $13.14
Orifice - LP Gas (not shown) - 661042 - - 233081 $12.08
Orifice - LP Gas (not shown) - - 661040 - 233082 $12.08
Orifice - LP Gas (not shown) - - - 661036 233083 $12.19
45 Venturi Assy. 660886 660886 660886 660886 -
46 Shield - Pilot 264550 264550 264550 264550 -
47 Valve Support - (if R'shaw)
Valve Support - (if H'well)
385210
386460
385210
386460
385210
386460
385210
386460
-
-
48 Conversion Kit - HSI (not shown) 903428 903428 903428 903428 -
50 Pilot Lighter Rod (not shown) 618020 618020 618020 618020 -
51 Relay - Blower - - - - -
52 Relay - Combustion Blower - - 620537 620537 231348 $26.19
60 Sheild - Insulation 264541 264541 264541 264541 -
62 H'Well Elbow Assy (not shown) 624612 624612 624612 624612 -
63 Door Assy. - Observation 264080 264080 264080 264080 -
64 Mount Kit - Motor (C unit) - - - - -
65 Piezo Ignightor Kit (not shown) 903458 903458 903458 903458 233087 $120.00
66 Fuse - 3A (not shown) 632261 632261 632261 632261 233102 $10.21
67 Burner Spud - (not shown) 663699 663699 663699 663699 -
68 Baffle Kit - Combustion 903722 903722 903722 903722 -
69 Pilot Orifice 660791 660791 660791 660791 230130 $12.40
70 Burner Assembly - Pilot 660911 660911 660911 660911 -
