M1B(*) 066 & 086 GAS BURNER
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

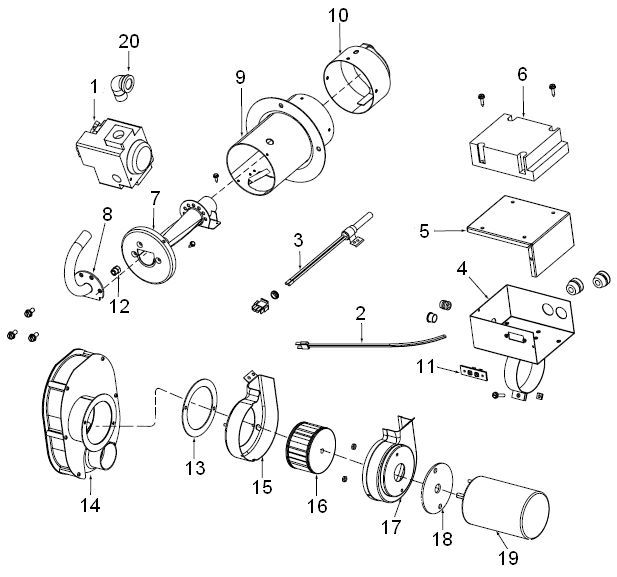

Parts List-Direct Ignition Gas Burners
# Description Qty MFG # Part # Price
1 Gas Valve - (Robert Shaw)
Gas Valve - (Honeywell)
1
1
624490
624610
239616
233105
$454.48
$135.15
2 Cord - Power Supply 1 634568 -
3 Ignitor 1 902661 239635 $76.91
4 Electric Box Assembly 1 157490 -
5 Cover - Electric Box 1 352930 -
6 HSI Control 1 626421 239624 $236.42
7 Venturi 1 *M0013601 -
8 Manifold Assembly 1 157450 -
9 Tube Assembly 1 265361 -
10 Air Cone Assembly 1 248750 231122 $110.93
11 Terminal Board 1 632083 -
12 Orifice - Burner (NAT. 86) #18
Orifice - Burner (LPG. 86) #37
Orifice - Burner (NAT. 66) #26
Orifice - Burner (LPG. 66) #43
1
1
1
1
661018
661037
661026
661043
-
-
-
231093



$12.08
13 Gasket - Adapter Burner 1 689032 -
14 Inlet Air Box Assy - Gas Gun 1 388382 -
15 Blower Assembly - Left 1 265130 -
16 Blower Wheel 1 667185 230203 $26.19
17 Blower Assembly - Right 1 352880 -
18 Gasket - Motor Mounting 1 689589 -
19 Motor 1 621077 230202 $435.46
20 Elbow - Street 1 662095 -
