G7SM SERIES FURNACE - Uplflow/Horizontal
SKU G7SM
$0.00
054D-24B, 072D-35C, 090D-35C, 118D-45D
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
G7SM SERIES FURNACE - Uplflow/Horizontal
Product Details

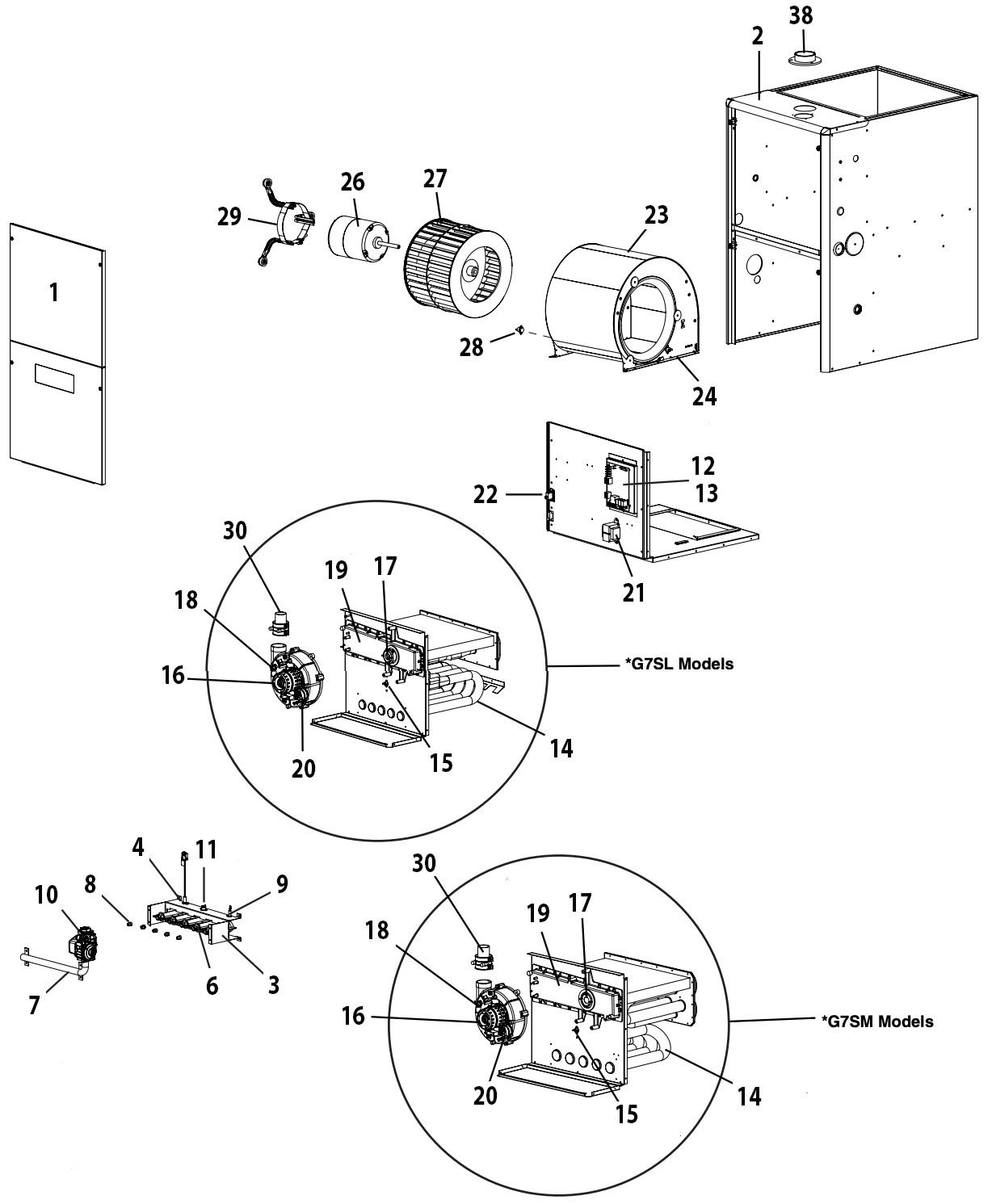

| # | DESCRIPTION | 054D- 24B |
072D- 35C |
090D- 35C |
118D- 45D |
PART # | PRICE |
| 1 | Door Set | 904768 | 904769 | 904769 | 904770 | - | |
| 2 | Top Panel | 2B3562R | 2B3563R | 2B3563R | 2B3564R | - | |
| 3 | Burner Assembly | 905026 | 905022 | 905023 | 905027 | - | |
| 4 | Ignitor Assembly - Nitride | 921074 | 921074 | 921074 | 921074 | - | |
| 5 | Igintor Bracket - (Not Shown) | 299261 | 299261 | 299261 | 299261 | - | |
| 6 | Inshot Burner | 661128 | 661128 | 661128 | 661128 | - | |
| 7 | Manifold - Burner Tube | 664611 | 664243 | 664244 | 664245 | - | |
| 8 | Orifice - Main Burner (Nat Gas) | 661047 | 661047 | 661047 | 661046 | - | |
| 9 | Flame Sensor | 632484 | 632484 | 632484 | 632484 | - | |
| 10 | Gas Valve | 624657 | 624657 | 624657 | 624657 | - | |
| 11 | Roll-Out Switch | 626610 | 626610 | 626610 | 626610 | - | |
| 12 | Control Board | 920915 | 920915 | 920915 | 920915 | 233154 | $256.86 |
| 13 | Fuse | 632261 | 632261 | 632261 | 632261 | 233102 | $10.21 |
| 14 | Heat Exchanger | 904869 | 904788 | 904871 | 904791 | - | |
| 15 | Main Air Limit Main Air Limit |
626601 - |
- 626617 |
- 626613 |
- 626613 |
233163 - |
$ 9.26 - |
| 16 | Inducer Motor | 904798 | 904798 | 904798 | 904798 | - | |
| 17 | Inducer Orifice | 669718 | 669719 | 669734 | 669717 | - | |
| 18 | Inducer Limit | 626606 | 626606 | 626606 | 626606 | 233162 | $13.89 |
| 19 | Outlet Header Box | 904802 | 904803 | 904803 | 904804 | - | |
| 20 | Pressure Switch - (Inducer) | 632487 | 632487 | 632487 | 632571 | - | |
| 21 | Transformer | 622341 | 622341 | 622341 | 622341 | 233166 | $29.42 |
| 22 | Door Switch | 632125 | 632125 | 632125 | 632125 | 233115 | $30.16 |
| 23 | Blower Assembly | 904682 | 904684 | 904684 | 904684 | - | |
| 24 | Blower Housing Assembly | 297207R | 297209R | 297209R | 297209R | - | |
| 25 | Capacitor | 622545 | 622549 | 622549 | 622549 | - | |
| 26 | Motor - Blower Motor - Blower |
- 904858 |
904860 - |
904860 - |
904860 - |
- 233150 |
$439.54 |
| 27 | Wheel - Blower Wheel - Blower |
- 667258 |
667280 - |
667280 - |
667280 - |
- 230257 |
$107.01 |
| 28 | Blower Limit/Blower Deck Limit | 626611 | 626611 | 626611 | 626611 | - | |
| 29 | Motor Mount Kit - Repl. | 904951 | 904951 | 904951 | 904951 | - | |
| 30 | In-Line Drain Assembly | 664435 | 664435 | 664435 | 664435 | - | |
| 31 | Drain Tube - Soft, 23" (Not Shown) | 664434 | 664434 | 664434 | 664434 | - | |
| 32 | Drain Tube - Hard, "J" (Not Shown) | 663706 | 663706 | 663706 | 663706 | - | |
| 33 | Drain Tube - Soft, "J" 30" (Not Shown) | 663707 | 663707 | 663707 | 663707 | - | |
| 34 | Tube - Soft, 5.5" (Not Shown) | 664520 | 664520 | 664520 | 664520 | - | |
| 35 | Hose - High Temperature (Not Shown) | 263967 | 263967 | 263967 | 263967 | - | |
| 36 | Set of Wires - (Not Shown) | M0036004 | M0036029 | M0036029 | M0036029 | - | |
| 38 | Finish Flange - Inlet Air | 664633 | 664633 | 664633 | 664633 | - |
