G7SK SERIES FURNACE - Downflow
SKU G7SK
$0.00
054-23A, 072-24B, 090-24B, 108-35C, 126-45D
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
G7SK SERIES FURNACE - Downflow

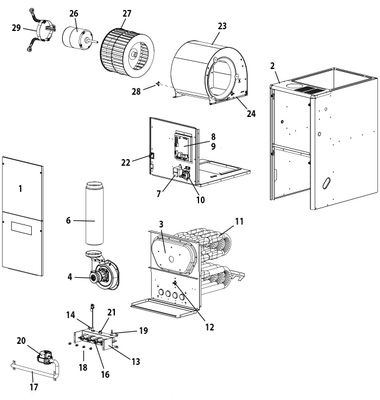

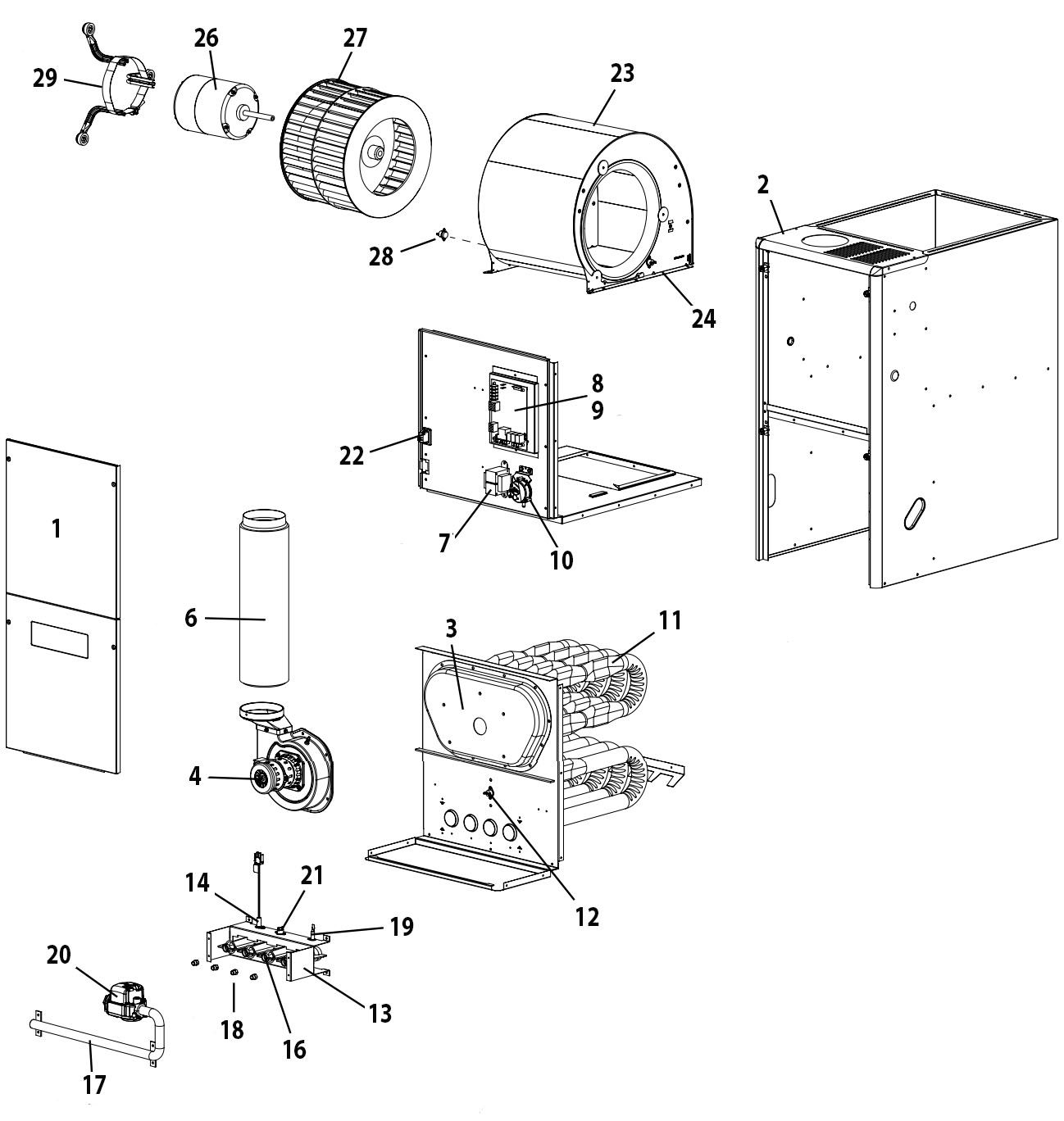

Product Details
| # | DESCRIPTION | 054- 23A |
072- 24B |
090- 24B |
108- 35C |
126- 45D |
PART # | PRICE |
| 1 | Door Set | 904767 | 904768 | 904768 | 904769 | 904770 | - | |
| 2 | Top Panel | 295911R | 295912R | 295912R | 295913R | 295914R | - | |
| 3 | Collector Pan - w/Gasket | 904901 | 904806 | 904921 | 904902 | 904811 | - | |
| 4 | Inducer Motor | 904796 | 904796 | 904796 | 904796 | 904796 | - | |
| 5 | Inducer Gasket - (Not Shown) | 689988 | 689988 | 689988 | 689988 | 689988 | - | |
| 6 | Combustion Tube | 299291 | 299291 | 299291 | 299291 | 299291 | - | |
| 7 | Transformer | 622341 | 622341 | 622341 | 622341 | 622341 | 233166 | $29.42 |
| 8 | Control Board | 920915 | 920915 | 920915 | 920915 | 920915 | 233154 | $256.86 |
| 9 | Fuse | 632261 | 632261 | 632261 | 632261 | 632261 | 233102 | $10.21 |
| 10 | Pressure Switch | 632488 | 632489 | 632489 | 632488 | 632488 | - | |
| 11 | Heat Exchanger | 904779 | 904780 | 904781 | 904868 | 904785 | - | |
| 12 | Main Air Limit Main Air Limit |
626601 - |
626601 - |
- 626617 |
- 626616 |
- 626617 |
233163 - |
$ 9.26 - |
| 13 | Burner Assembly | 904820 | 904822 | 904824 | 904826 | 904828 | - | |
| 14 | Igintor Assembly - Nitride | 921074 | 921074 | 921074 | 921074 | 921074 | - | |
| 15 | Ignitor Bracket - (Not Shown) | 299261 | 299261 | 299261 | 299261 | 299261 | - | |
| 16 | Inshot Burner | 661134 | 661134 | 661134 | 661134 | 661134 | - | |
| 17 | Manifold - Burner Tube | 664228 | 664229 | 664230 | 664231 | 664232 | - | |
| 18 | Orifice - Main Burner (Natural Gas) | 661047 | 661047 | 661047 | 661047 | 661047 | - | |
| 19 | Flame Sensor | 632484 | 632484 | 632484 | 632484 | 632484 | - | |
| 20 | Gas Valve | 624657 | 624657 | 624657 | 624657 | 624657 | - | |
| 21 | Roll-out Switch Roll-out Switch |
626610 - |
626610 - |
626610 - |
- 626609 |
- 626609 |
- 233165 |
$11.90 |
| 22 | Door Switch | 632125 | 632125 | 632125 | 632125 | 632125 | 233115 | $30.16 |
| 23 | Blower Assembly | 904681 | 904682 | 904682 | 904684 | 904684 | - | |
| 24 | Blower Housing Assembly | 297200R | 297207R | 297207R | 297209R | 294209R | - | |
| 25 | Capacitor | 622599 | 626545 | 626545 | 622549 | 622549 | - | |
| 26 | Motor - Blower Motor - Blower |
904857 - |
- 904858 |
- 904858 |
904860 - |
904860 - |
- 233150 |
$439.54 |
| 27 | Wheel - Blower Wheel - Blower |
667251 - |
- 667258 |
- 667258 |
667280 - |
667280 - |
- 230257 |
$107.01 |
| 28 | Blower Limit | 626611 | 626611 | 626611 | 626611 | 626611 | - | |
| 29 | Motor Mount Kit - Repl. | N/A | 904951 | 904951 | 904951 | 904951 | - | |
| 30 | Hose - High Temperature (Not Shown) | 263967 | 263967 | 263967 | 263967 | 263967 | - | |
| 31 | Set of Wires - (Not Shown) | M0036035 | M0036038 | M0036038 | M0036030 | M0036030 | - |
