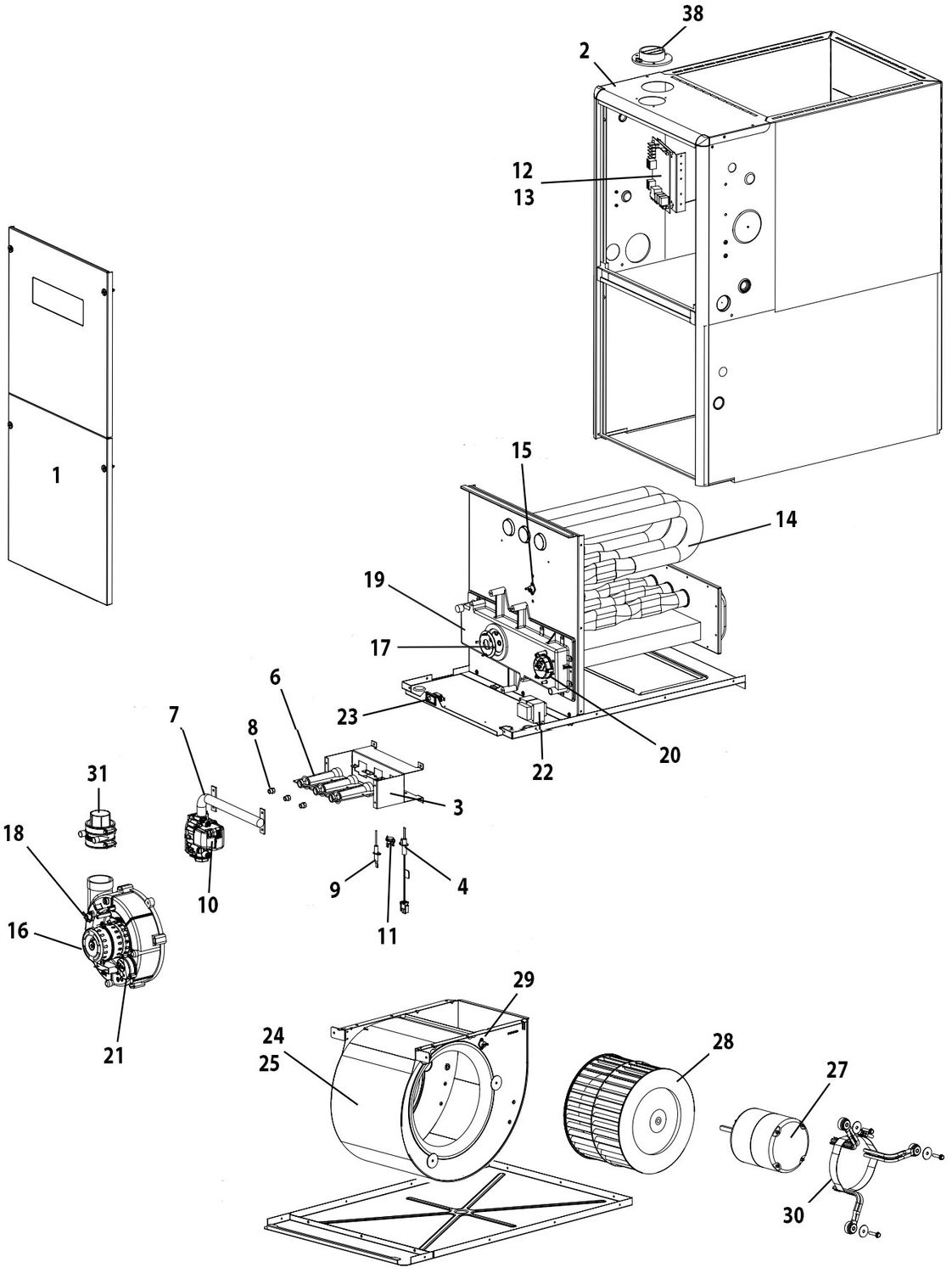

G7SD Furnace Diagram
+2

G7SD SERIES FURNACE - Upflow/Horizontal

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU G7SD
$0.00
038D-23B, 054D-24B, 072D-35C, 090D-35C, 108D-45D, 120D-45D
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
G7SD SERIES FURNACE - Upflow/Horizontal
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
# DESCRIPTION 038D-
23B
054D-
24B
072D-
35C
090D-
35C
108D-
45D
120D-
45D
PART # PRICE
1 Door Set 904768 904768 904769 904769 904770 904770 -
2 Top Panel 2A9512R 2A9512R 2A9513R 2A9513R 2A9514R 2A9514R -
3 Burner Assembly 905020 905021 905022 905023 905024 905025 -
4 Ignitor Assembly - Nitride 921074 921074 921074 921074 921074 921074 -
5 Igintor Bracket - (Not Shown) 299261 299261 299261 299261 299261 299261 -
6 Inshot Burner 661128 661128 661128 661128 661128 661128 -
7 Manifold - Burner Tube 664473 664473 664243 664244 664245 664245 -
8 Orifice - Main Burner (Nat Gas)
Orifice - Main Burner (Nat Gas)
-
661051
-
661047
-
661047
-
661047
-
661046
661045
-
233080
-
$13.14
-
9 Flame Sensor 632484 632484 632484 632484 632484 632484 -
10 Gas Valve 624657 624657 624657 624657 624657 624657 -
11 Roll-Out Switch
Roll-Out Switch
-
626609
626610
-
626610
-
626610
-
626610
-
626610
-
-
233165

$11.90
12 Control Board 920915 920915 920915 920915 920915 920915 233154 $256.86
13 Fuse 632261 632261 632261 632261 632261 632261 233102 $10.21
14 Heat Exchanger 904792 904792 904793 904794 904795 904795 -
15 Main Air Limit 626603 626598 626598 626612 626612 626612 -
16 Inducer Motor 904798 904798 904798 904798 904798 904798 -
17 Inducer Orifice 669927 669718 669719 669734 669715 669717 -
18 Inducer Limit 626606 626606 626606 626606 626606 626606 233162 $13.89
19 Outlet Header Box 904802 904802 904803 904803 904804 904804 -
20 Pressure Switch - (condensate) 632492 632493 632595 632624 632622 632622 -
21 Pressure Switch - (inducer) 632571 632487 632487 632487 632571 632571 -
22 Transformer 622341 622341 622341 622341 622341 622341 233166 $29.42
23 Door Switch 632125 632125 632125 632125 632125 632125 233115 $30.16
24 Blower Assembly 904682 904682 904683 904684 904684 904684 -
25 Blower Housing Assembly 297207R 297207R 297204R 297209R 297209R 297209R -
26 Capacitor 622545 622545 622549 622549 622549 622549 -
27 Motor - Blower
Motor - Blower
Motor - Blower
-
904858
-
-
904858
-
-
-
904859
904860
-
-
904860
-
-
904860
-
-
-
233150
233151

$439.54
$509.25
28 Wheel - Blower
Wheel - Blower
-
667258
-
667258
667207
-
667280
-
667280
-
667280
-
-
230257

$107.01
29 Blower Limit 626611 626611 626611 626611 626611 626611 -
30 Motor Mount Kit - Repl. 904951 904951 904980 904951 904951 904951 -
31 In-Line Drain Assembly 664435 664435 664435 664435 664435 664435 -
32 Drain Tube - Soft, 23" (Not Shown) 664434 664434 664434 664434 664434 664434 -
33 Drain Tube - Hard, "J" (Not Shown) 663706 663706 663706 663706 663706 663706 -
34 Drain Tube - Soft, "J" 30" (Not Shown) 663707 663707 663707 663707 663707 663707 -
35 Tube - Soft, 6.5" (Not Shown) 663727 663727 663727 663727 663727 663727 -
36 Hose - High Temperature (Not Shown) 263967 263967 263967 263967 263967 263967 -
37 Set of Wires - (Not Shown) M0036003 M0036003 M0036007 M0036007 M0036007 M0036007 -
38 Finish Flange - Inlet Air 664633 664633 664633 664633 664633 664633 -
39 PVC Trap - (Not Shown) 664659 664659 664659 664659 664659 664659 -
