G7SC SERIES FURNACE - Uplflow/Horizontal

Name: G7SC SERIES FURNACE - Uplflow/Horizontal
SKU: G7SC
Availability: InStock

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS

SKU G7SC

$0.00

038D-23A, 045D-24B, 072D-24B, 072D-35C, 090D-35C, 108D-45D, 120D-45D

Available Components

(8) ORIICE - Main Burner (Nat Gas) 233080

(11) ROLL-OUT SWITCH - 233170

(11) ROLL-OUT SWITCH - 233165

(12) CONTROL BOARD - 233154

(13) FUSE - 233102

(17) ORIFICE RING - 233158

(18) INDUCER LIMIT - 233162

(22) TRANSFORMER - 233166

(23) DOOR SWITCH - 233115

(27) MOTOR - Blower 233150

(27) MOTOR - Blower 233151

(28) WHEEL - Blower 230257

G7SC SERIES FURNACE - Uplflow/Horizontal

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS

Product Details

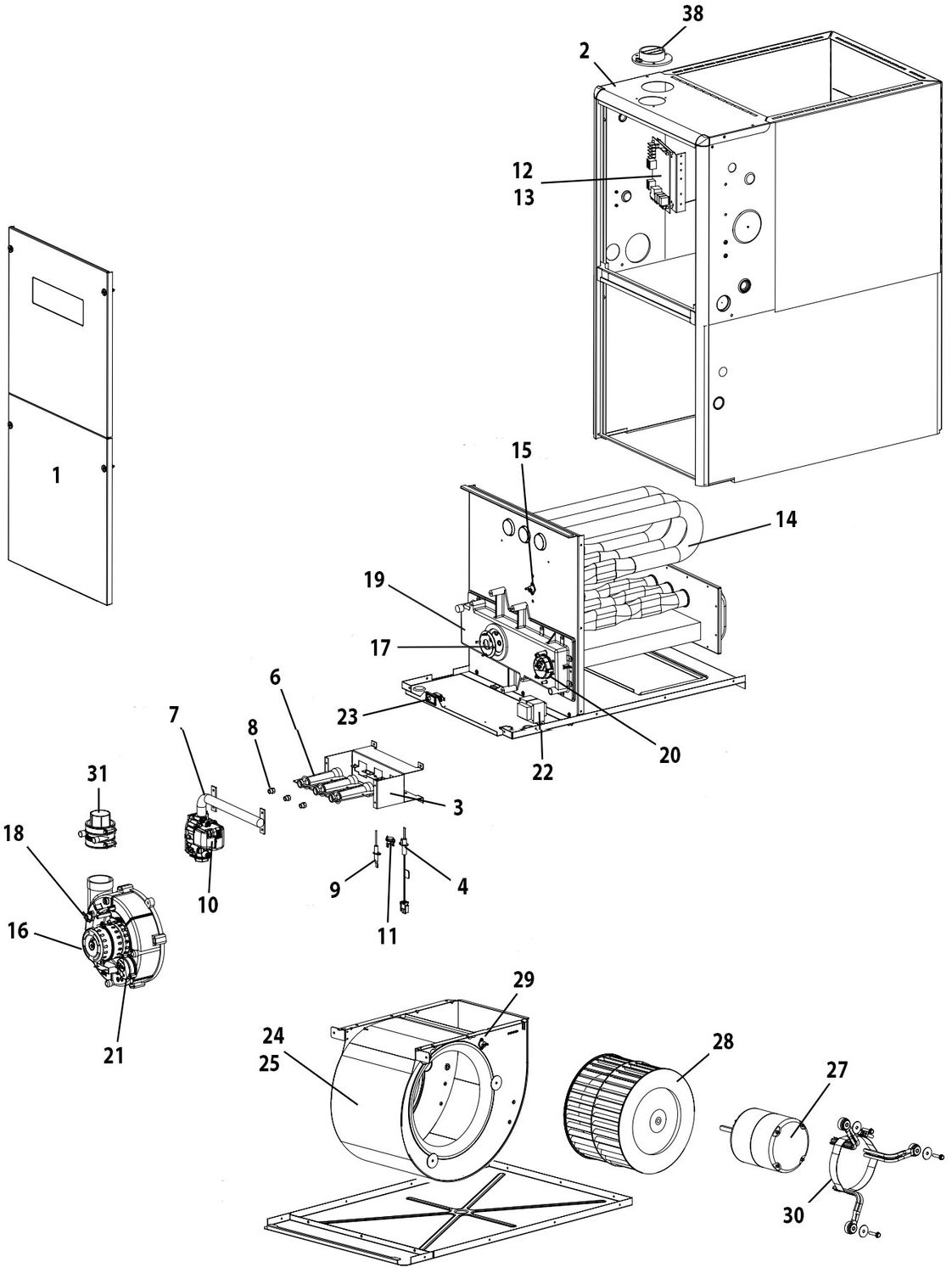

#	DESCRIPTION	038D- 32A	054D- 24B	072D- 24B	072D- 35C	090D- 35C	108D- 45D	120D- 45D	PART #	PRICE
1	Door Set	904767	904768	904768	904769	904769	904770	904770	-
2	Top Panel	2B3551R	2B3552R	2B3552R	2B3553R	2B3553R	2B3554R	2B3554R	-
3	Burner Assembly	904818	904821	904823	904823	904825	904827	904977	-
4	Ignitor Assembly - Nitride	921074	921074	921074	921074	921074	921074	921074	-
5	Igintor Bracket - (Not Shown)	299261	299261	299261	299261	299261	299261	299261	-
6	Inshot Burner	661134	661134	661134	661134	661134	661134	661134	-
7	Manifold - Burner Tube	664237	664238	664239	664239	664240	664241	664241	-
8	Orifice - Main Burner (Nat Gas) Orifice - Main Burner (Nat Gas)	661045 -	- 661047	- 661047	- 661047	- 661047	- 661047	661045 -	233080 -	$13.14 -
9	Flame Sensor	632484	632484	632484	632484	632484	632484	632484	-
10	Gas Valve	624657	624657	624657	624657	624657	624657	624657	-
11	Roll-Out Switch Roll-Out Switch	626608 -	626608 -	- 626609	- 626609	- 626609	- 626609	626608 -	233170 233165	$ 7.73 $11.90
12	Control Board	920915	920915	920915	920915	920915	920915	920915	233154	$256.86
13	Fuse	632261	632261	632261	632261	632261	632261	632261	233102	$10.21
14	Heat Exchanger	904786	904869	904788	904870	904771	904791	904791	-
15	Main Air Limit	626598	626614	626613	626614	626613	626614	626614	-
16	Inducer Motor	904798	904798	904798	904798	904798	904798	904798	-
17	Inducer Orifice Orifice Ring	669719 -	- 669712	669713 -	669715 -	669717 -	Not Used	Not Used	- 233158	$ 6.78
18	Inducer Limit	626606	626606	626606	626606	626606	626606	626606	233162	$13.89
19	Outlet Header Box	904801	904802	904802	904803	904803	904804	904804	-
20	Pressure Switch - (condensate)	632585	632491	632571	632491	632491	632491	632491	-
21	Pressure Switch - (inducer)	632585	632487	632495	632493	632493	632493	632493	-
22	Transformer	622341	622341	622341	622341	622341	622341	622341	233166	$29.42
23	Door Switch	632125	632125	632125	632125	632125	632125	632125	233115	$30.16
24	Blower Assembly	904681	904682	904682	904683	904684	904684	904684	-
25	Blower Housing Assembly	297200R	297207R	297207R	297204R	297209R	297209R	297209R	-
26	Capacitor	622599	622545	622545	622549	622549	622549	622549	-
27	Motor - Blower Motor - Blower Motor - Blower	904857 - -	- 904858 -	- 904858 -	- - 904859	904860 - -	904860 - -	904860 - -	- 233150 233151	$439.54 $509.25
28	Wheel - Blower Wheel - Blower	667251 -	- 667258	- 667258	667207 -	667280 -	667280 -	667280 -	- 230257	$107.01
29	Blower Limit	626611	626611	626611	626611	626611	626611	626611	-
30	Motor Mount Kit - Repl.	N/A	904951	904951	904980	904951	904951	904951	-
31	In-Line Drain Assembly	664435	664435	664435	664435	664435	664435	664435	-
32	Drain Tube - Soft, 23" (Not Shown)	664434	664434	664434	664434	664434	664434	664434	-
33	Drain Tube - Hard, "J" (Not Shown)	663706	663706	663706	663706	663706	663706	663706	-
34	Drain Tube - Soft, "J" 30" (Not Shown)	663707	663707	663707	663707	663707	663707	663707	-
35	Tube - Soft, 6.5" (Not Shown)	663727	663727	663727	663727	663727	663727	663727	-
36	Hose - High Temperature (Not Shown)	263967	263967	263967	263967	263967	263967	263967	-
37	Set of Wires - (Not Shown)	M0036009	M0036003	M0036003	M0036007	M0036007	M0036007	M0036007	-
38	Finish Flange - Inlet Air	664633	664633	664633	664633	664633	664633	664633	-
