G7SA SERIES FURNACE - Upflow / Horizontal

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU G7SA
$0.00
045-23A, 054-23A, 072-24B, 090-24B, 072-35C, 090-35C, 108-35C, 126-45D
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
G7SA SERIES FURNACE - Upflow / Horizontal
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

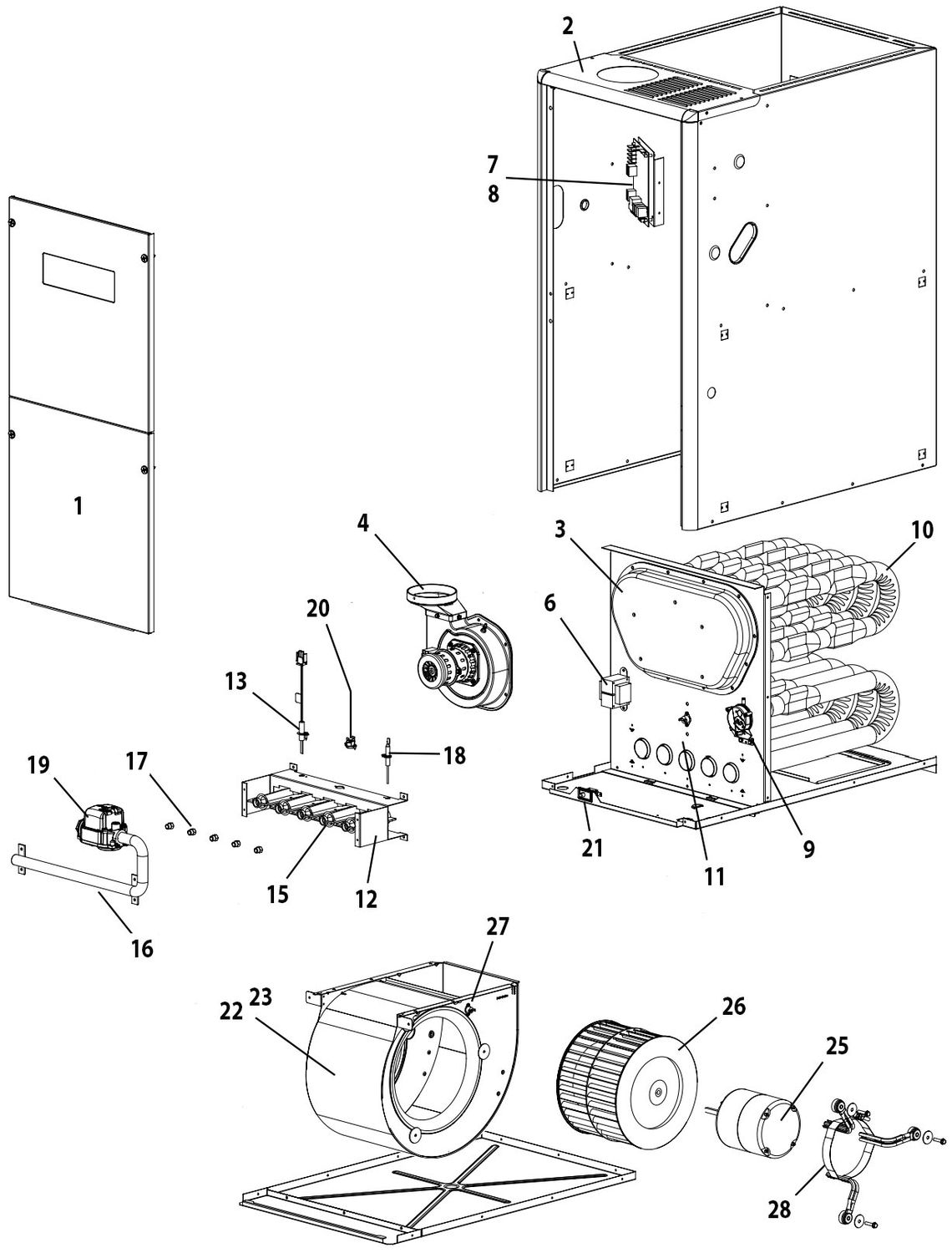

# DESCRIPTION 045-
23A
054-
23A
072-
24B
090-
24B
072-
35C
090-
35C
108-
35C
126-
45D
PART # PRICE
1 Door Set 904767 904767 904767 904767 904767 904767 904767 904770 -
2 Top Panel 295911R 295911R 295912R 295912R 295913R 295913R 295913R 295914R -
3 Collector Pan - w/Gasket 904805 904812 904806 904807 904808 904809 904810 904811 -
4 Inducer Motor 904796 904796 904796 904796 904796 904796 904796 904796 -
5 Inducer Gasket - (Not Shown) 689988 689988 689988 689988 689988 689988 689988 689988 -
6 Transformer 622341 622341 622341 622341 622341 622341 622341 622341 233166 $29.42
7 Control Board 920915 920915 920915 920915 920915 920915 920915 920915 233154 $256.86
8 Fuse 632261 632261 632261 632261 632261 632261 632261 632261 233102 $10.21
9 Pressure Switch 632499 632489 632489 632489 632489 632489 632488 632520 -
10 Heat Exchanger 904779 904779 904780 904781 904782 904783 904868 904785 -
11 Main Air Limit 626614 626614 626612 626613 626615 626613 626612 626598 -
12 Burner Assembly 904819 904820 904822 904824 904822 904824 904826 904828 -
13 Ignitor Assembly - Nitride 921074 921074 921074 921074 921074 921074 921074 921074 -
14 Igintor Bracket - (Not Shown) 299261 299261 299261 299261 299261 299261 299261 299261 -
15 Inshot Burner 661134 661134 661134 661134 661134 661134 661134 661134 -
16 Manifold - Burner Tube 664228 664228 664229 664230 664229 664230 664231 664232 -
17 Orifice - Main Burner (Nat Gas) 661049 661047 661047 661047 661047 661047 661047 661047 -
18 Flame Sensor 632484 632484 632484 632484 632484 632484 632484 632484 -
19 Gas Valve 624657 624657 624657 624657 624657 624657 624657 624657 -
20 Roll-Out Switch
Roll-Out Switch
626610
-
626610
-
626610
-
626610
-
626610
-
-
626609
626610
-
626610
-
-
233165

$11.90
21 Door Switch 632125 632125 632125 632125 632125 632125 632125 632125 233115 $30.16
22 Blower Assembly 904681 904681 904682 904682 904683 904683 904684 904684 -
23 Blower Housing Assembly 297200R 297200R 297207R 297207R 297204R 297204R 297209R 297209R -
24 Capacitor 622599 622599 622545 622545 622549 622549 622549 622549 -
25 Motor - Blower
Motor - Blower
Motor - Blower
904857
-
-
904857
-
-
-
904858
-
-
904858
-
-
-
904859
-
-
904859
904860
-
-
904860
-
-
-
233150
233151

$439.54
$509.25
26 Wheel - Blower
Wheel - Blower
667251
-
667251
-
-
667258
-
667258
667207
-
667207
-
667280
-
667280
-
-
230257

$107.01
27 Blower Limit 626611 626611 626611 626611 626611 626611 626611 626611 -
28 Motor Mount Kit - Repl. N/A N/A 904951 904951 904980 904980 904951 904951 -
29 Hose - High Temp (Not Shown) 263967 263967 263967 263967 263967 263967 263967 263967 -
30 Set of Wires - (Not Shown) M0036001 M0036001 M0036001 M0036001 M0036005 M0036005 M0036005 M0036005 -
