FE(-)B SERIES ELECTRIC FURNACE
Product Details

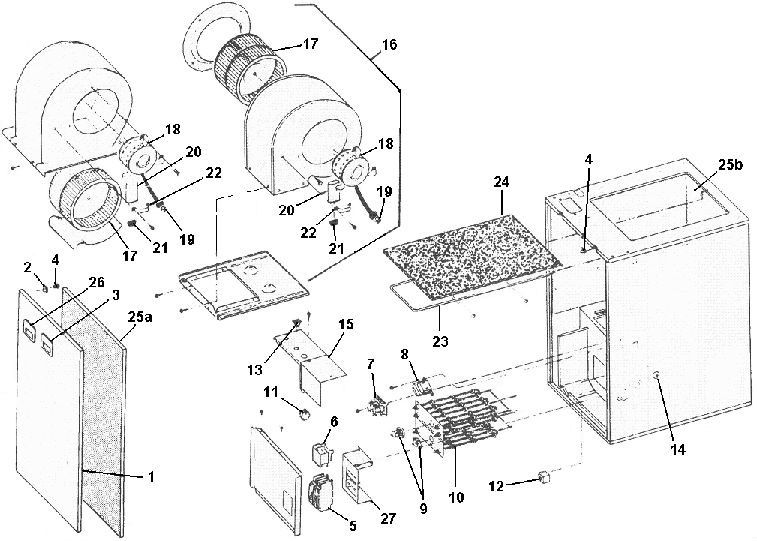

| # | DESCRIPTION | 240v SINGLE PHASE | MFG # | PART # | PRICE | |||||
| 010 | 012 | 015 | 017 | 020 | 023 | |||||
| 1 | Panel Door - Gray (Specify Brand) -Complete | 1 | 1 | 1 | 1 | 1 | 1 | 901856 | - | |
| 2 | Receptable - Latch | 2 | 2 | 2 | 2 | 2 | 2 | 668420 | 231280 | $ 6.53 |
| 3 | Decorative Insert - Door | 4 | 4 | 4 | 4 | 4 | 4 | 668772 | - | |
| 4 | Strike - Latch | 4 | 4 | 4 | 4 | 4 | 4 | 668905 | 231281 | $ 5.84 |
| 5 | Circuit Breaker - 60A, 2-Pole | 1 | 2 | 2 | 2 | 2 | 2 | 632226 | 238099 | $70.03 |
| 6 | Adapter Kit - Single Circuit (optional on all but 012) |
n/a | 1 | 913350 | 101039 | $25.26 | ||||
| 7 | Sequencer - 2 Pole | 1 | 1 | 621451 | 239766 | $41.97 | ||||
| Sequencer - 3 Pole | 1 | 1 | 621452 | 239763 | $84.62 | |||||
| Sequencer - 4 Pole | 1 | 1 | 621453 | 239764 | $89.60 | |||||
| 8 | Transformer - 20 VA | 1 | 1 | 1 | 1 | 1 | 1 | 620857 | ||
| Transformer - 30 VA (standard on FEBB) | 620859 | - | ||||||||
| 9 | Limit - D.P./145*F (1): | 1 | 1 | 1 | 1 | 1 | 1 | 626261 | 238229 | $30.43 |
| Limit - S.P./140*F (1): | 1 | 1 | 626259 | 238228 | $32.27 | |||||
| Limit - D.P./140*F (1): | 1 | 1 | 626260 | 238227 | $61.76 | |||||
| 10 | Element Assembly - 5.0 KW @ 240V | 1 | 432731 | 239828 | $148.22 | |||||
| Element Assembly - 5.4 KW @ 240V | 1 | 432732 | 239830 | $168.30 | ||||||
| Element Assembly - 10.0 KW @ 240V | 1 | 1 | 2 | 1 | 432721 | 239831 | $270.02 | |||
| Element Assembly - 10.8 KW @ 240V | 1 | 432722 | 239835 | $303.55 | ||||||
| Element Assembly - 11.6 KW @ 240V | 1 | 1 | 432723 | 239836 | $303.55 | |||||
| 11 | Connector - Receptacle (12 Socket) | 1 | 1 | 1 | 1 | 1 | 1 | 631727 | - | |
| 12 | Lug - Ground | 1 | 1 | 1 | 1 | 1 | 1 | 632206 | - | |
| 13 | Switch - SPDT ("ON/"AUTO) | 1 | 1 | 1 | 1 | 1 | 1 | 631677 | - | |
| 14 | Bushing | 1 | 1 | 1 | 1 | 1 | 1 | 631781 | - | |
| 15 | Cover Raceway | 1 | 1 | 1 | 1 | 1 | 1 | 225550 | - | |
| 16 | Blower - Multi-Speed/240V COMPLETE (Incl. #17-22) |
1 | 1 | 1 | 1 | 1 | 1 | 901282 | 103063 | $658.35 |
| 17 | Wheel - Air Circulator f/2-Speed Blowers | 1 | 1 | 1 | 1 | 1 | 1 | 667117 | 230253 | $118.88 |
| Wheel - Air Circulator: F/Multi-Speed Blowers | 1 | 1 | 1 | 1 | 1 | 1 | 667037 | 231026 | $101.92 | |
| 18 | Motor - 1/4HP, 2-Speed (No. 621449) | 1 | 1 | 1 | 1 | 1 | 1 | 902512 | 238097 | $582.34 |
| Motor - 1/3HP, 4-Speed (No. 620810) | 1 | 1 | 1 | 1 | 1 | 1 | 901838 | 238039 | $335.50 | |
| 19 | Connector - Plug 12-Pin Included with Item 18 | 1 | 1 | 1 | 1 | 1 | 1 | 631756 | - | |
| 20 | Capacitor 10/370 | 1 | 1 | 1 | 1 | 1 | 1 | 621434 | 238098 | $ 5.07 |
| 21 | Boot - Capacitor | 1 | 1 | 1 | 1 | 1 | 1 | 632232 | - | |
| 22 | Strap - Capacitor | 1 | 1 | 1 | 1 | 1 | 1 | 249090 | - | |
| 23 | Retainer - Filter | 1 | 1 | 1 | 1 | 1 | 1 | 668412 | - | |
| 24 | Filter - Return Air (FB-1620) | 1 | 1 | 1 | 1 | 1 | 1 | 668347 | 2488626 | $ 2.99 |
| 25 | Insulation Kit - Cabinet | 1 | 1 | 1 | 1 | 1 | 1 | 901682 | - | |
| 26 | Plate Assembly - Intertherm Logo | 1 | 1 | 1 | 1 | 1 | 1 | 687012 | - | |
| Plate Assembly - Miller Logo | 1 | 1 | 1 | 1 | 1 | 1 | 687013 | - | ||
| 27 | Bracket - Breaker | 1 | 1 | 1 | 1 | 1 | 1 | 370220 | - | |
