FE Furnace Diagram
+2

FE "A" SERIES

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU FEA
$0.00
FEH HA & HA-C, FEB HA & HA-C, FEY HA & HA-C
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
FE "A" SERIES
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

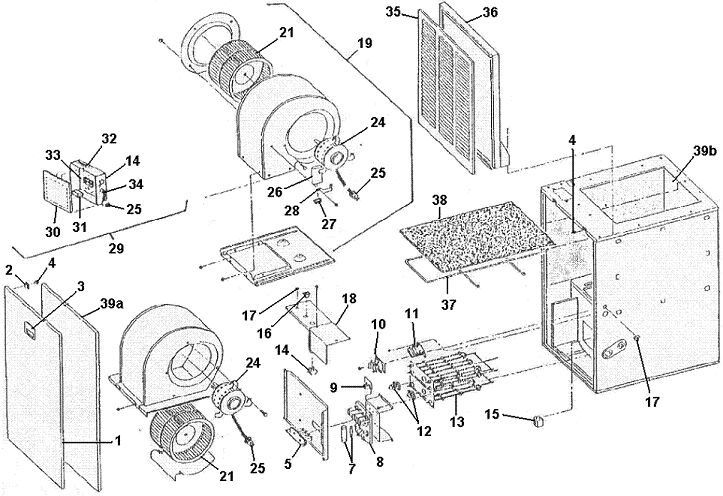

# DESCRIPTION MFG # PART # PRICE
1 Panel Door - New Style (Includes Items 2,3 & 4) 901856- -
Panel Door - Old Style (Includes Items 2,3 & 4) 901074- -
2 Receptacle - Latch 668420- 231280 $ 6.53
3 Handle - Door (Intertherm) 668739- -
Handle - Door (Miller) 668740- -
4 Strike - Latch 668421- 231281 $ 5.84
5 DELETED -
6 Interlock - Safety - Old Style (Straight, 2-pole) 620540- -
Interlock - Safety - New Style (Horseshoe, 2-pole) 621036- -
Interlock - Safety - Old Style (4-pole) 620541- -
Interlock - Safety - New Style: After 1990 (4-pole) 621035- -
7 Fuse - 60 Amp 631755- -
Fuse - 40 Amp 631754- -
Fuse - 40 Amp 631753- -
8 Conversion Kit - Circuit Breaker (2-Pole) 010 902513- 239820 $321.07
Retro Fit Kit - f/ 012, 015 and 017 902514 239821 $401.44
Retro Fit Kit - f/ 020, and 023 902514 239821 $401.44
Conversion Kit - Circuit Breaker (4-Pole)4 902514 239821 $401.44
9 Lugs - Bussing (sold per each) 900965- -
10 Sequencer - Replacement (2 & 3 Stage) 901075- 239763 $84.62
Sequencer - Replacement (4 Stage) 901076- 239764 $89.60
11 Transformer - 20 VA 620857- -
12 Limit - D.P. / 145*D (1): All Models 626261- 238229 $30.43
Limit - S.P. / 140*D (1): -015 & -017 626259- 238228 $32.27
Limit - D.P. / 140*D (1): -020 & -023 626260- 238227 $61.76
13 Element Assembly - 5.0 kw, @ 240 V 432731- 239828 $148.22
Element Assembly - 5.0 kw, Old Style (FEC -015) 631690- 239828 $148.22
Element Assembly - 5.4 kw, @ 240 V 432732- 239830 $168.30
Element Assembly - 5.4 kw, Old Style (FEC -017) 631691- 239830 $168.30
Element Assembly - 10.0 kw, @ 240 V 432721- 239831 $270.02
Element Assembly - 10.0 kw, Old Style (FEC -010, 015, 023 & -020) 631692- 239831 $270.02
Element Assembly - 10.8 kw, @ 240 V 432722 -
Element Assembly - 10.8 kw, Old Style (FEC -017) 631693- 239835 $303.55
Element Assembly - 11.6 kw, @ 240 V 432723- 239836 $303.55
Element Assembly - 11.6 kw, Old Style (FEC -012, -023) 631694- 239836 $303.55
14 Connector Receptacle - (12 Socket) 631727- -
15 Lug - Ground 631638- -
16 Switch - APSR ("ON"/"AUTO") 631677- -
17 Bushing 631460- -
18 Cover - Raceway 225550- -
19 Blower - Multi-Speed/240 V, COMPLETE (Includes Items 20-28) 901282- 103063 $658.35
20 DELETED -
21 Wheel - Air Circulator: For Single-Speed Blowers 667117- 230253 $118.88
Wheel - Air Circulator: For Multi-Speed Blowers 667037- 231026 $101.92
22 DELETED -
23 DELETED -
24 Motor - 1 SP. (No. 620700-) -010 & -012 901292- 238097 NLA
Motor - 1 SP. (No. 620710-) -010-C, -012-C, -015 & -017 901293- 238097 NLA
Motor - 1 SP. (No. 620720-) -017-C, -020-C, -020 & -023 901294- 238097 NLA
Motor - 4 SP. (No. 620810-) For older models, w/resilient mount 901295- -
Motor - 4 SP. Current model used, as pictured 901838- 238039 $335.50
25 Connector - Plug (12 Pin): Included with item 24 631756- -
26 Capacitor - 7.5 / 370 620271- 102114 $ 3.34
27 Boot - Capacitor 631330- -
28 Strap - Capacitor 118380- -
29 Relay-Control - Air Conditioning COMPLETE (Incl Items 14, 25, 30-33) 901245- -
30 Cover - Relay Box, A/C 334440- -
31 Relay - D.P. (Blower) 620537- 231348 $26.19
32 Board - Terminal L.V. 631777- -
33 Board - Terminal Speed Selector 631774- -
34 Strain Relief 656332- -
35 Panel - Return Air Louvered - Gray 450043- -
36 Frame - Support Assembly - Gray 348963- -
37 Retainer - Filter 668412- -
38 Filter - Return Air (FB-1620) 668347 2488626 $ 2.99
39 Insulation Kit - Cabinet 901682- -
