E7EM SERIES - ELECTRIC FURNACE
SKU E7EM
$0.00
E7EM-010, E7EM-012, E7EM-015, E7EM-017, E7EM-020, E7EM-023
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
E7EM SERIES - ELECTRIC FURNACE
Product Details

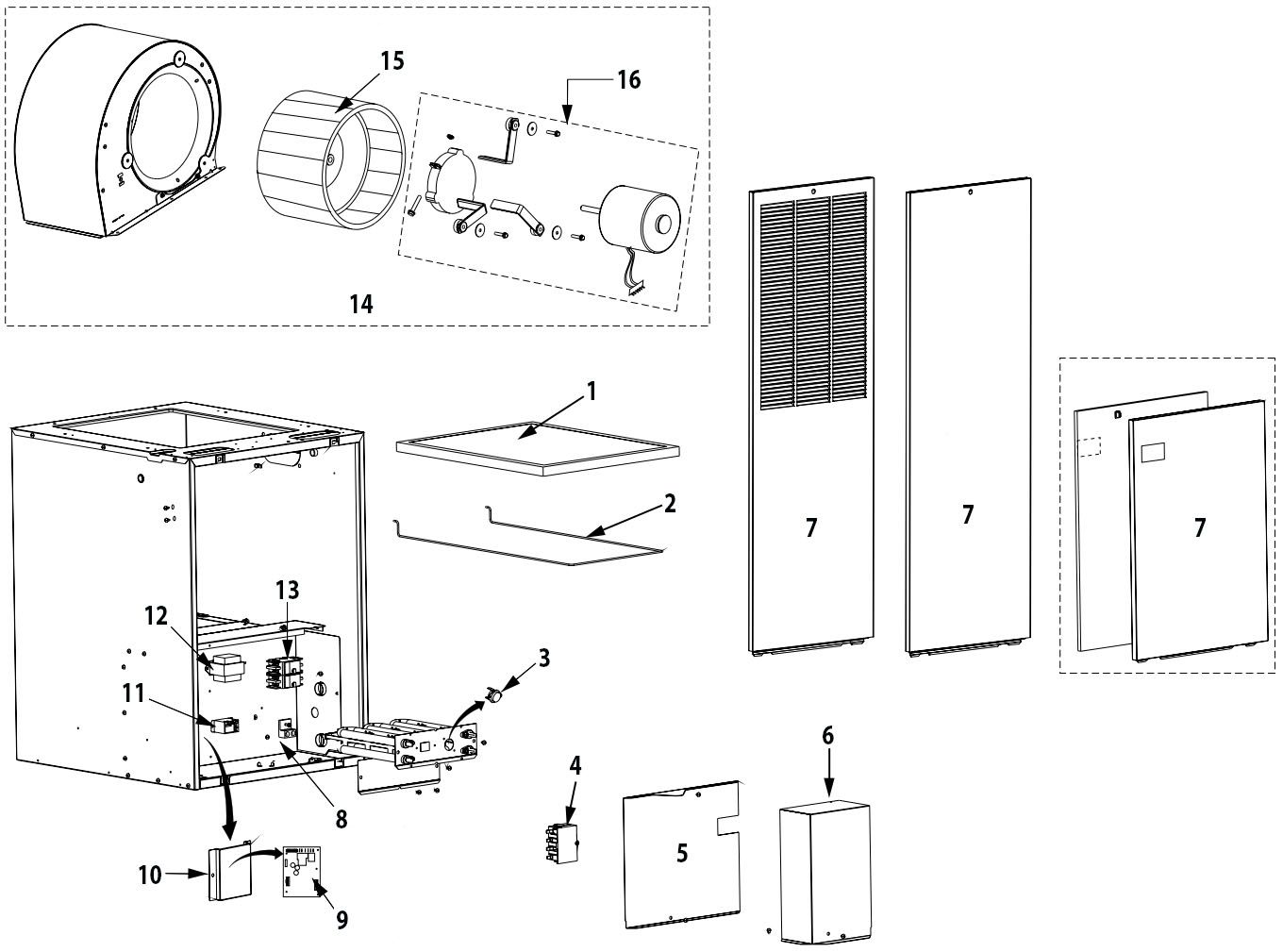

| # | DESCRIPTION | MODEL KW | PART # | PRICE | |||||
| -010 | -012 | -015 | -017 | -020 | -023 | ||||
| 1 | Filter - (20" x 18") | 668860R | 668860R | 668860R | 668860R | 668860R | 668860R | - | |
| Filter - (Front, 18" x 30") | 1007623R | 1007623R | 1007623R | 1007623R | 1007623R | 1007623R | - | ||
| 2 | Retainer - Filter | - | |||||||
| 3 | Limit - (1 Pole) | - | - | 626459R | 626459R | - | - | - | |
| Limit - (2 Pole) | 626458R | 626458R | 626458R | 626458R | 626458R | - | 239636 | $27.81 | |
| Limit - (2 Pole) | - | - | - | - | - | 626540R | 239646 | $28.85 | |
| 4 | Jumper - Circuit Breaker | - | |||||||
| 5 | Control Door - (Left - 10 kW) | D00721R | - | - | - | - | - | - | |
| Control Door - (Left - 10-23 kW) | - | D00722R | D00722R | D00722R | D00722R | D00722R | - | ||
| 6 | Control Door - Right | D00740R | D00740R | D00740R | D00740R | D00740R | D00740R | - | |
| 7 | Door - (Louvered - E7ED Models) | 101480702 R |
101480702 R |
101480702 R |
101480702 R |
101480702 R |
101480702 R |
- | |
| Door - (Solid - E7EM Models) | 917260 | 917260 | 917260 | 917260 | 917260 | 917260 | 239839 | $107.01 | |
| Door - (Solid - E7EU Models) | 101480701 R |
101480701 R |
101480701 R |
101480701 R |
101480701 R |
101480701 R |
- | ||
| 8 | Ground Lug | 632235R | 632235R | 632235R | 632235R | 632235R | 632235R | - | |
| 9 | Control Board | 1006801R | 1006801R | 1006801R | 1006801R | 1006801R | 1006801R | 238146 | $269.25 |
| 10 | Bracket - Control Board | 280671R | 280671R | 280671R | 280671R | 280671R | 280671R | - | |
| 11 | DC Relay | 1025375R | 1025375R | 1025375R | 1025375R | 1025375R | 1025375R | - | |
| 12 | Transformer - (40 VA) | 622762R | 622762R | 622762R | 622762R | 622762R | 622762R | - | |
| 13 | Circuit Breaker - (6-AMP, 2-Pole) | 1034963R | 1034963R | 1034963R | 1034963R | 1034963R | 1034963R | 238099 | $70.03 |
| 14 | Blower Asm | - | |||||||
| 15 | Blower Wheel - (10 x 8) | 667037R | 667037R | 667037R | 667037R | 667037R | 667037R | 231026 | $101.92 |
| 16 | Blower Motor - (1/2 HP, PWM) | 622686 | 622686 | 622686 | 622686 | 622686 | 622686 | ||
| 17 | Element Asm - (5.0 kW @ 240V) | - | - | 902818 | - | - | - | 239828 | $148.22 |
| Element Asm - (5.4 kW @ 240V) | - | - | - | 902820 | - | - | 239830 | $168.30 | |
| Element Asm - (10.0 kW @ 240V) | 902821 | - | 902821 | - | 902821 | 902821 | 239831 | $270.02 | |
| Element Asm - (10.8 kW @ 240V) | - | - | - | 902823 | - | - | 239835 | $303.55 | |
| Element Asm - (11.6 kW @ 240V) | - | 902824 | - | - | - | 902824 | 239836 | $303.55 | |
| 18 | Fuse - (3-AMP - Not Shown) | 632261R | 632261R | 632261R | 632261R | 632261R | 632261R | 233102 | $10.21 |
| 19 | Plug - Hole (1/2") | 632307R | 632307R | 632307R | 632307R | 632307R | 632307R | - | |
| Plug - Hole (3/4") | 632308R | 632308R | 632308R | 632308R | 632308R | 632308R | - | ||
| 20 | Adapter Kit - Single Circuit (Standard on -012 Models)(Optional on -015-23 Models) | - | 913874 | - | - | - | - | 238019 | $41.07 |
