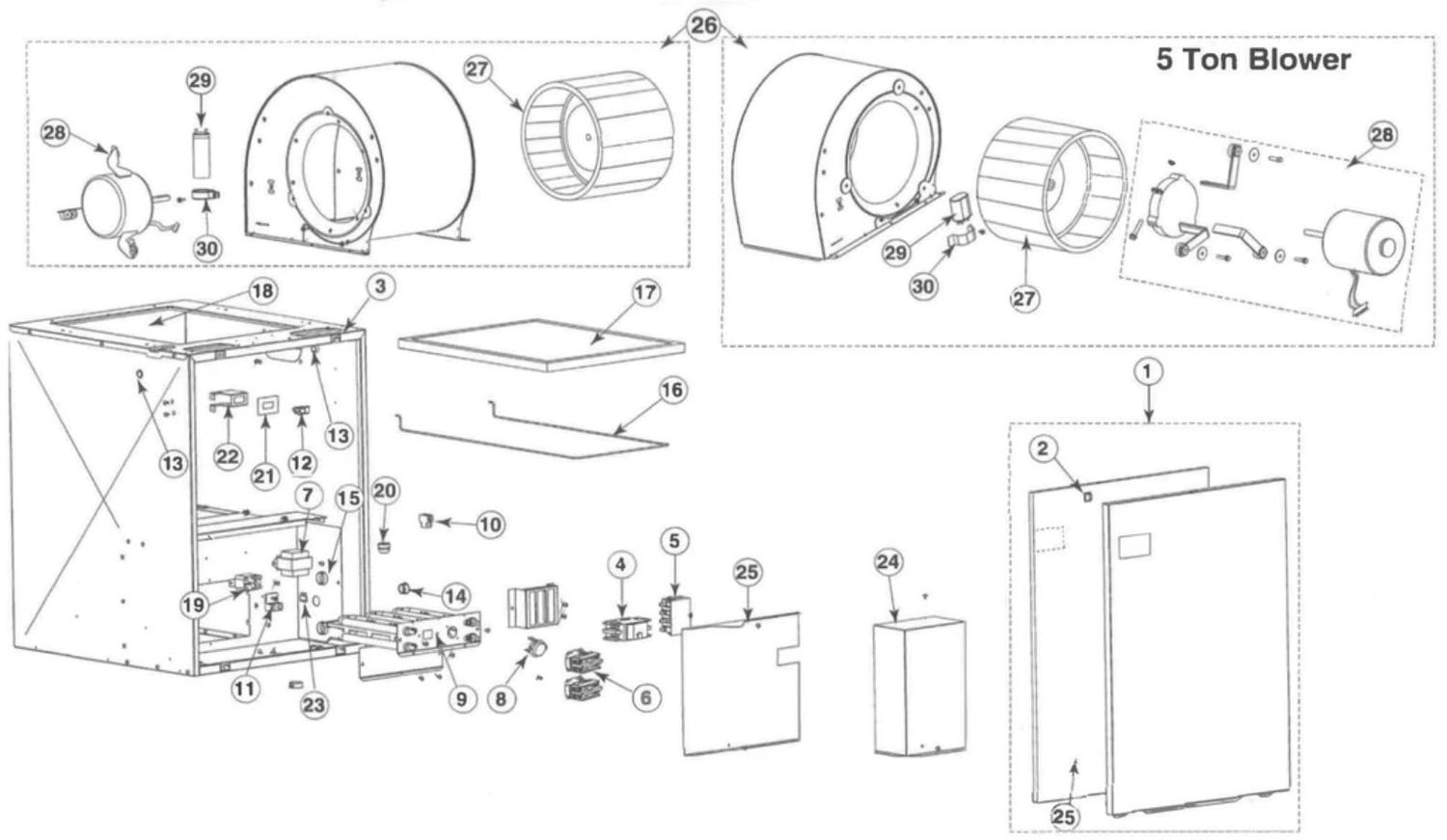

E3 Furnace Diagram
+2

E3 SERIES - ELECTRIC FURNACE

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU E3SERIES
$0.00
-010, -012, -015, -017,-020, -023
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
E3 SERIES - ELECTRIC FURNACE
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
# DESCRIPTION MODEL KW PART # PRICE
-010 -012 -015 -017 -020 -023 5
Ton
E3EX
1 Panel Door - White (incl. insulation) 917260 917260 917260 917260 917260 917260 - - 239839 $107.01
2 Receptacle - Latch 668420 668420 668420 668420 668420 668420 - - 231280 $ 6.53
3 Strike - Latch 668905 668905 668905 668905 668905 668905 - - 231281 $ 5.84
4 Circuit Breaker- 60A, 2 Pole 632249 632249 632249 632249 632249 632249 - - 238099 $70.03
5 Adapter Kit- Single Circuit (Standard 012 Models, Optional on 015-023 Models) - 913874 - - - - - - 238019 $41.07
6 Contactor - 1 Pole - - 621957 621957 - - - - 239777 $21.63
Contactor - 2 Pole 621958 621958 621958 621958 621958 621958 - - 239778 $35.02
7 Transformer - 30 VA 621814 621814 621814 621814 621814 621814 - - 238265 $30.58
8 Limit - 1-Pole - - 626459 626459 - - - - 239637 $17.62
Limit - 2-Pole
Limit - 2-Pole
626458
-
626458
-
626458
-
626458
-
626458
-
-
626540
- - 239636
239646
$27.81
$28.85
9 Element Assembly - 5.0kw @ 240V - - 902818
*btm
- - - - - 239828 $148.22
Element Assembly - 5.4kw @ 240V - - - 902820


*btm
- - - - 239830 $168.30
Element Assembly - 10.0 KW @240V 902821
#top
- 902821
#top
- 902821 902821
*btm
- - 239831 $270.02
Element Assembly - 10.8kw @ 240V - - - 902823
#top
- - - - 239835 $303.55
Element Assembly - 11.6kw @ 240V - 902824
#top
- - - 902824
#top
- - 239836 $303.55
10 Connector - Cap 6-Pin Matrix 631728 631728 631728 631728 631728 631728 - - -
11 Ground Lug 632235 632235 632235 632235 632235 632235 - - -
12 Switch - SPDT (ON/AUTO):EH Models Only 632338 632338 632338 632338 632338 632338 - - -
13 Bushing 631781 631781 631781 631781 631781 631781 - - -
14 Hole Plug - (1/2") EB Uses 3 Each 632307 632307 632307 632307 632307 630307 - - -
15 Hole Plug - (3/4") 632308 632308 632308 630308 632308 632308 - - -
16 Filter Retainer 669053 669053 669053 669053 669053 669053 - - -
17 Filter 668934 668934 668934 668934 668934 668934 - - 238167 $26.26
18 Insulation Kit - standard in EB models, optional in EH models 902991 902991 902991 902991 902991 902991 - - -
19 Blower Relay - Used in EB models only 621867 621867 621867 621867 621867 621867 - - -
20 Bushing - Strain Relief 631758 631758 631758 631758 631758 631758 - - -
21 Gasket - Decorative Black: EH Models only 689588 689588 689588 689588 689588 689588 - - -
22 Switch Bracket - EH Models only 264920 264920 264920 264920 264920 264920 - - -
23 Fuse - 3 Amp 632261 632261 632261 632261 632261 632261 - - 233102 $10.21
24 Right Control Door D00740 D00740 D00740 D00740 D00740 D00740 - - -
25 Left Control Door - 10kW D00721 - - - - - - - -
Left Control Door - 12-23kW - D00722 D00722 D00722 D00722 D00722 - - -
26 Blower - 2 Speed, Standard in EH Models (incl items 27-30) 903074 903074 903074 903074 903074 903074 - - -
Blower - 4 Speed, Standard in EB Models (Optional in EH Models, Incl. 27-30) 902993 902993 902993 902993 902993 902993 - - 102102 $318.03
Blower - 4-Speed, Standard in 5 Ton Units (Optional in EH & EB Models, Incl. items 27-30) - - - - - - 902985 - 101092 $435.14
Blower Conversion Kit - Converts EB Models or Replacement For EX Models, Multi-Speed Variable Torque X13 Motor - - - - - - - 904619 -
27 Wheel - Blower (10 x 8) 667037 667037 667037 667037 667037 667037 - 667037 231026 $101.92
Wheel - Blower (11 x 8) - - - - - - 667258 - 230257 $107.01
28 Motor - 1/5 HP 2 Speed 903076 903076 903076 903076 903076 903076 - - 238141 $528.32
Motor - 1/3 HP 4 Speed 903075 903075 903075 903075 903075 903075 - - 102102 $318.03
Motor - 3/4 HP 4 Speed - - - - - - 903096 - 101092 $435.14
Motor - Programmed for E3EX, 3/4 HP Multi-Speed - - - - - - - M002
9201
-
29 Capacitor - 7.5 MFD 370V 621434 621434 621434 621434 621434 621434 - - -
Capacitor - 20MFD 370V - - - - - - 621377 - -
30 Strap - Capacitor 606228 606228 606228 606228 606228 606228 - - -
Strap - Capacitor - - - - - - 249090 - -
top* = top element in downflow position unit in the picture
btm* = bottom element in downflow position unit in the picture
