E2EH-xxx-HB & E2EB-xxx-HP SERIES
SKU E2EHB
$0.00
E2EH-xxx-HB, E2EB-xxx-HB
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
E2EH-xxx-HB & E2EB-xxx-HP SERIES
Product Details

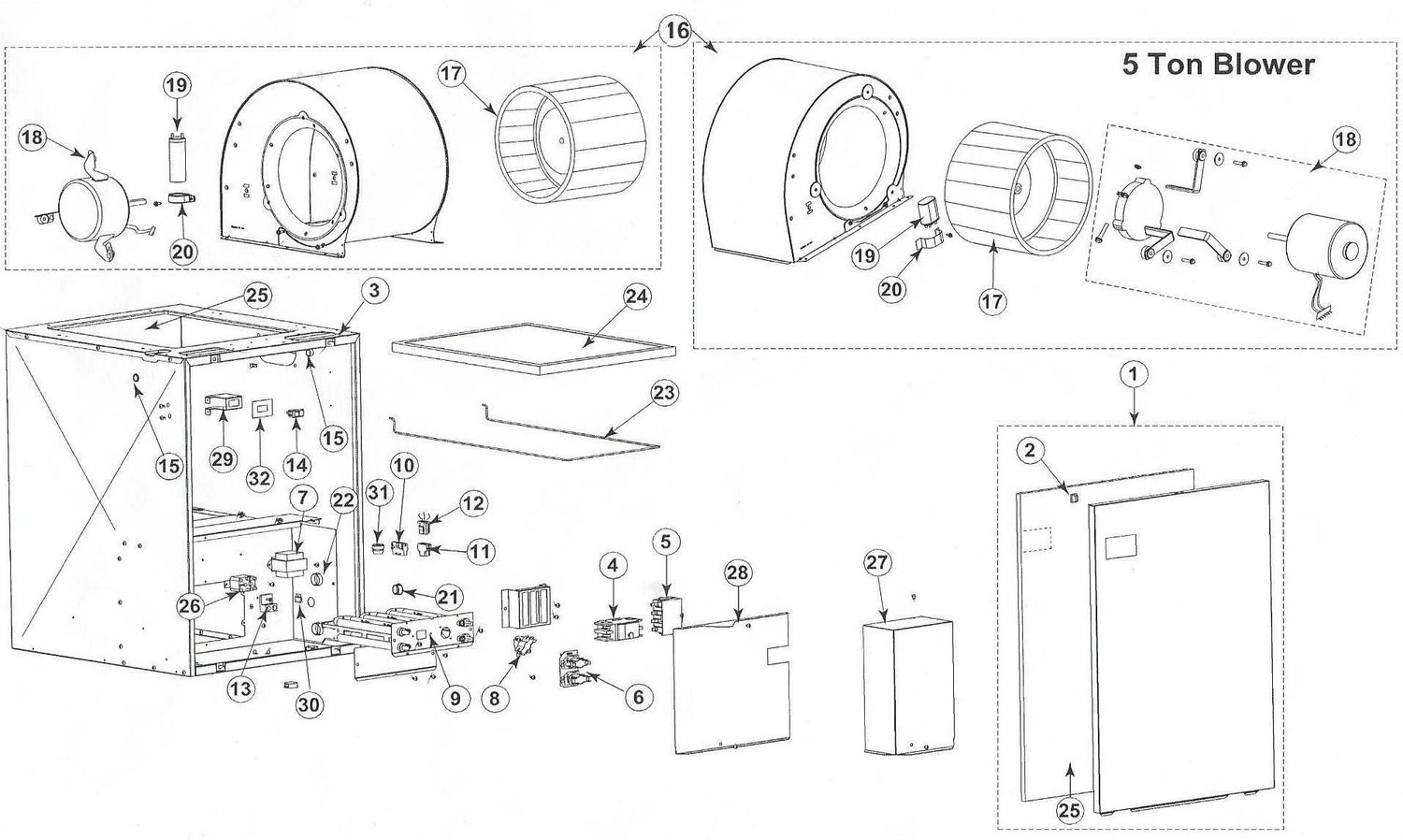

| # | DESCRIPTION | 240v Single Phase | MFG # | PART # | PRICE | |||||||
| 010 | 012 | 015 | 015HR | 017 | 020 | 023 | 5 Ton |
|||||
| 1 | Panel Door - White (includes insulation) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 239839 | $107.01 | |
| 2 | Receptacle - Latch | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 668420 | 231280 | $ 6.53 | |
| 3 | Strike - Latch | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 668905 | 231281 | $ 5.84 | |
| 4 | Circuit Breaker- 60A, 2 Pole | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 632249 | 238099 | $70.03 | |
| 5 | Adapter Kit- Single circuit (standard 012 models, Optional on 015-023 models) |
n/a | 1 | 913874 | 238019 | $41.07 | ||||||
| 6 | Contactor - 1 Pole, 25FLA/35 Res |
1 | 1 | 621908 | 239777 | $21.63 | ||||||
| Contactor - 2 Pole, 25FLA/30 Res |
1 | 1 | 1 | 1 | 1 | 2 | 2 | 621909 | 239778 | $35.02 | ||
| 7 | Transformer - 30 VA | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 621814 | 238265 | $30.58 | |
| 8 | Limit - 1-Pole, 1/2" | 1 | 2 | 2 | 626511 | 239639 | $26.21 | |||||
| Limit - 1-Pole, 1/2" | 1 | 1 | 626513 | 239640 | $11.20 | |||||||
| Limit - 1-Pole, 1/2" | 2 | 2 | - | - | ||||||||
| 9 | Element Assembly - 5.4kw @ 240V |
1 btm* |
1 btm* |
903902 | 239850 | $143.55 | ||||||
| Element Assembly - 10.0kw @ 240V |
1 top* |
2 | 1 btm* |
903903 | 239851 | $309.42 | ||||||
| Element Assembly - 10.8KW @240V |
1 top* |
1 top* |
903904 | 239852 | $312.53 | |||||||
| Element Assembly - 11.6kw @ 240V |
1 top* |
1 top* |
903905 | 239853 | $307.92 | |||||||
| Element Assembly - 15.0kw @ 240V |
1 top* |
903906 | 239854 | $338.64 | ||||||||
| 12 | Thermostat Plug Assembly - E(-)EH |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 389810 | - | ||
| Thermostat Plug Assembly - E(-)EB |
389820 | - | ||||||||||
| 13 | Lug - Ground | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 632235 | - | ||
| 14 | Switch - SPDT (ON/AUTO) EH Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 632338 | - | ||
| 15 | Bushing | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 631781 | - | ||
| 16 | Blower - 2-Speed (incl. items 17-20) EH Models only | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903074 | - | ||
| Blower - 3-Speed (Incl. #17-22) optional in E2EH models, standard in E2EB models | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903907 | - | |||
| Blower - Multi Speed/240v (incl. items 17-20) optional in EH and EB models, standard in 5 ton units | 1 | 902985 | 101092 | $435.14 | ||||||||
| 17 | Wheel - Blower (10 x 8) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 667037 | 231026 | $101.92 | |
| Wheel - Blower (11 x 8) | 1 | 667258 | 230257 | $107.01 | ||||||||
| 18 | Motor - 1/5 HP, 2-Speed EH Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 903076 | 238141 | $528.32 | |
| Motor - 1/3 HP 3-Speed EB Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 903075 | 102102 | $318.03 | ||
| Motor - 3/4 HP (4 Speed) with mounting band and legs |
1 | 903096 | 101092 | $435.14 | ||||||||
| 19 | Capacitor - 10 MFD 370v EH & EB Models |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 621434 | 238098 | $ 5.07 | |
| Capacitor - 20MF/370V | 1 | 621377 | - | |||||||||
| 20 | Strap - Capacitor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 606228 | - | ||
| Strap - Capacitor | 1 | 249090 | - | |||||||||
| 21 | Hole Plug - (1/2"): EB Units use 3 each |
2 | 2 | 2 | 2 | 2 | 2 | 2 | 632307 | - | ||
| 22 | Hole Plug - (3/4") | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 632308 | - | ||
| 23 | Filter Retainer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 669053 | - | ||
| 24 | Filter | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 668934 | 2488626 | $ 2.99 | |
| 26 | Blower Relay NO: - EB Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 621898 | 231346 | $11.78 | |
| Blower Relay NC: - EB Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 621899 | 231347 | $11.68 | ||
| 27 | Right Control Door | 1 | 1 | 1 | 1 | 1 | 1 | 1 | D00740 | - | ||
| 28 | Left Control Door - 10kW | 1 | D00721 | - | ||||||||
| Left Control Door - 12-23 kW | 1 | 1 | 1 | 1 | 1 | 1 | D00722 | - | ||||
| 29 | Switch - Bracket: EH Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 264920 | - | ||
| 30 | Fuse - 3-Amp | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 632261 | 233102 | $10.21 | |
| 31 | Bushing - Strain Relief: EH Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 631758 | - | ||
| 32 | Gasket - Decorative, Black: EH Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 689588 | - | ||
| 32 | Wire Harness - (not pictured) EH Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | D12541R | - | ||
| Wire Harness - (not pictured) EB Models only |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | D12581R | - | ||
btm = bottom element in specified unit in the position pictured
