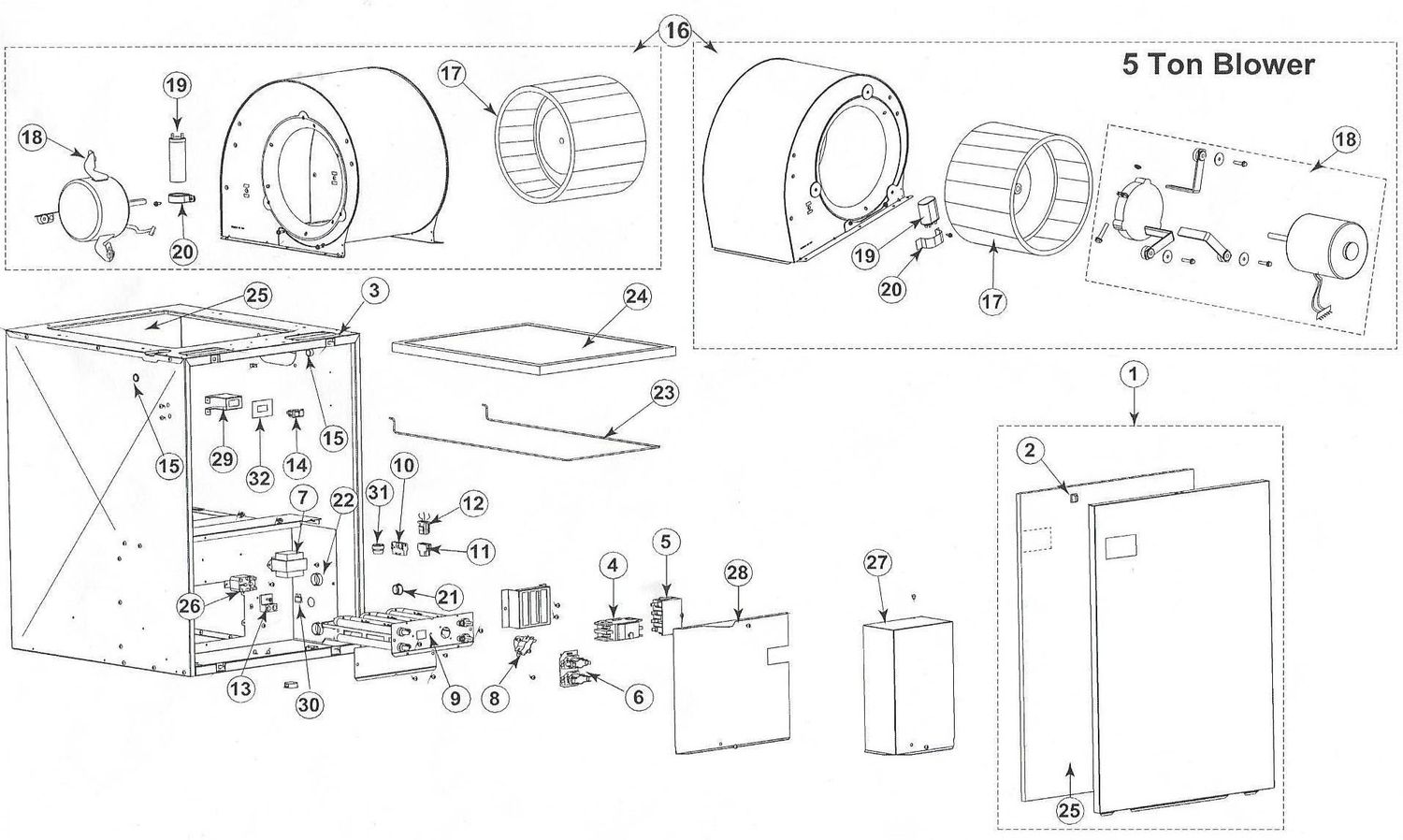

E2E Furnace Diagram
+2

E2E(H,B) SERIES - ELECTRIC FURNACE

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU E2E
$0.00
Beginning SN #9901, E2EH, E2EB
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
E2E(H,B) SERIES - ELECTRIC FURNACE
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
# DESCRIPTION 240v Single Phase MFG # PART # PRICE
010 012 015 017 020 023 5
Ton
1 Panel Door - White (incl. insulation) 1 1 1 1 1 1 917260 239839 $107.01
Panel Door - White (incl. insulation) 1 1 1 1 1 1 917261 -
2 Receptacle - Latch 2 2 2 2 2 2 668420 231280 $ 6.53
3 Strike - Latch 4 4 4 4 4 4 668905 231281 $ 5.84
4 Circuit Breaker- 60A, 2 Pole 1 2 2 2 2 2 632249 238099 $70.03
5 Adapter Kit- Single circuit (standard 012 models, Optional on 015-023 models) n/a 1 913874 238019 $41.07
6 Sequencer - E2# 10 & 12 kw 1 1 621696 239773 $23.02
Sequencer - E2# 15 & 17 kw 1 1 621678 239774 $34.93
Sequencer - E2# 20 & 23 kw 1 1 621679 239767 $76.98
7 Transformer - 30 VA 1 1 1 1 1 1 621814 238265 $30.58
8 Limit - 2-Pole 1 1 1 1 2 2 626458 239636 $27.81
Limit - 1-Pole 1 1 626459 239637 $17.62
9 Element Assembly - 5.0kw @ 240V 1
btm*
902818 239828 $148.22
Element Assembly - 5.4kw @ 240V 1
btm*
902820 239830 $168.30
Element Assembly - 10.0 KW @240V 1
top*
1
top*
2 1
btm*
902821 239831 $270.02
Element Assembly - 10.8kw @ 240V 1
top*
902823 239835 $303.55
Element Assembly - 11.6kw @ 240V 1
top*
1
top*
902824 239836 $303.55
10 Connector - Cap 6-Pin Inline 1 1 1 1 1 1 632275 -
11 Connector - Cap 6-Pin Matrix 1 1 1 1 1 1 631728 -
12 Plug Assembly - Thermostat E(-)EH 1 1 1 1 1 1 389810 -
Plug Assembly - Thermostat E(-)EB 389820 -
13 Lug - Ground 1 1 1 1 1 1 632235 -
14 Switch - SPDT (ON/AUTO) EH Models only 1 1 1 1 1 1 632338 -
15 Bushing 2 2 2 2 2 2 631781 -
16 Blower - 2-Speed (incl. items 17-20) 1 1 1 1 1 1 903074 -
Blower - Multi Speed (Incl. #17-22) optional in EH and EB models, standard in 5 ton units 1 902985 -
Blower - 4-Speed/240v (incl. items 17-20) optional in E2E models, standard in E2EB models 1 1 1 1 1 1 902993 -
17 Wheel - Blower (10 x 8) 1 1 1 1 1 1 667037 231026 $101.92
Wheel - Blower (11 x 8) 1 667258 230257 $107.01
18 Motor - 1/5 HP, 2-Speed 1 1 1 1 1 1 903076 238141 $528.32
Motor - 1/3 HP 4-Speed 903075 102102 $318.03
Motor - 3/4 HP (4 Speed) with mounting band and legs 1 903096 101092 $435.14
19 Capacitor - 7.5 MFD 370v 1 1 1 1 1 1 621434 238098 $ 5.07
Capacitor - 20MF/370V 1 621377 -
20 Strap - Capacitor 1 1 1 1 1 1 606228 -
Strap - Capacitor 1 249090 -
21 Hole Plug - (1/2"): EB Units use 3 each 2 2 2 2 2 2 632307 -
22 Hole Plug - (3/4") 4 4 4 4 4 4 632308 -
23 Retainer - Filter 1 1 1 1 1 1 669053 -
24 Filter 1 1 1 1 1 1 668934 2488626 $ 2.99
25 Insulation Kit - optional in E2EH models, standard in E2EB models 1 1 1 1 1 1 902991 -
26 Blower Relay - used in E(-)EB models only 1 1 1 1 1 1 620537 231348 $26.19
27 Control Door - Right 1 1 1 1 1 1 D00740 -
28 Control Door - 10kW Left 1 D00721 -
Control Door - 12-23kW Left 1 1 1 1 1 D00722 -
29 Switch - Bracket: EH Models only 1 1 1 1 1 1 264920 -
30 Fuse - 3-Amp 1 1 1 1 1 1 632261 233102 $10.21
31 Bushing - Strain Relief: EH Models only 1 1 1 1 1 1 631758 -
32 Gasket - Decorative, Black: EH Models only 1 1 1 1 1 1 689588 -
*top = top element in specified unit in the position pictured
btm = bottom element in specified unit in the position pictured
