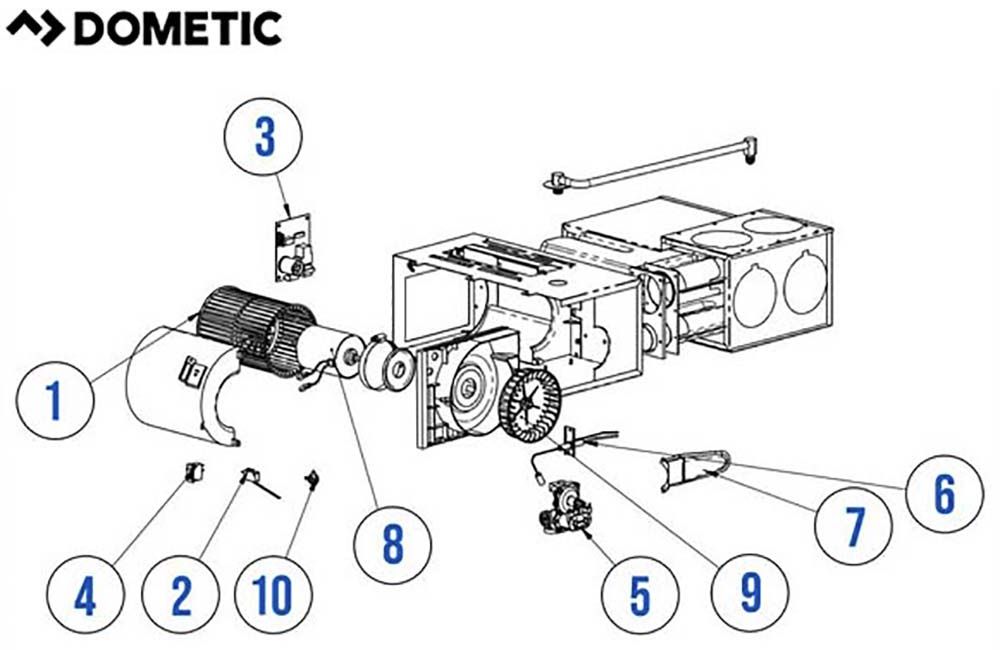

8525-III Diagram
+2

DOMETIC (HYDROFLAME) 8525-III

Home/Store/RV CATALOG/APPLIANCES/Furnace Diagrams
SKU 8525-III
$0.00
8525-III
Item
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DOMETIC (HYDROFLAME) 8525-III
Home/Store/RV CATALOG/APPLIANCES/Furnace Diagrams
Product Details
Brand: Dometic
# Description MFG # Part # Price
1 Wheel - Blower 33126 350010 $25.64
2 Sail Switch - (No Longer Available) 35054 -
3 Control Board - (Replaces 38676) 31501 350001 $247.81
4 Breaker - Circuit 33780 -
5 Valve - Gas (S/N After #0654747) 31150 350021 $96.53
Valve - Gas (No Longer Available) 31155 -
6 Electrode - (No Longer Available) 36999 -
7 Burner - (No Longer Available) 33842 -
8 Motor - Kit 37358 -
9 Wheel - Combustion 33128 350047 $11.11
10 Switch - Limit (190 Degree) 37022 350005 $22.91
Show More
You May Also Like
31501 Board
FURNACE IGNITION CONTROL AND ADAPTER BOARD
FURNACE IGNITION CONTROL AND ADAPTER BOARD
Atwood Ignition Control Modular Board (31501). Adapter board is now sold separate (35325).
SKU 350001
$247.81
31150 Gas Valve
GAS VALVE - SIDE PORT
GAS VALVE - SIDE PORT
Atwood White Rodger DC Valve.
SKU 350021
$96.53
33126 Blower Wheel
FURNACE BLOWER WHEEL
FURNACE BLOWER WHEEL
Atwood Blower Wheel and Clamp, plastic (10CS)
SKU 350010
$25.64
33128 Combustion Wheel
COMBUSTION WHEEL WITH CLAMP
COMBUSTION WHEEL WITH CLAMP
This works on furnace model #s: 85-IV 16, 85-IV 20, 85-IV 25, 85-IV 31, 85-IV 35, 85-III 16-20, 85-III 25, 85-III 31-35, 85-II 16-20, 85-II 25, 85-II 31-35, 85-I 31-35, 89-I DC, 89-I AC, 89-II AC, 89-II DC, 89-III DC, 89-III AC.
SKU 350047A
$11.11

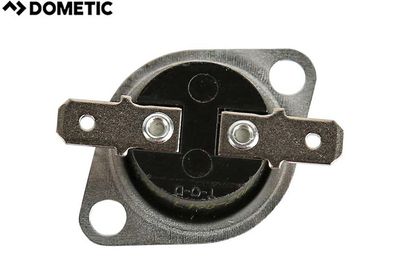

37022 Limit Switch
LIMIT SWITCH - 170 DEGREE (ATWOOD)
LIMIT SWITCH - 170 DEGREE (ATWOOD)
190 Degree 36TXV11, L190 (10CS)
SKU 350005
$22.91
