8525-II Diagram
+2

DOMETIC (HYDROFLAME) 8525-II

Home/Store/RV CATALOG/APPLIANCES/Furnace Diagrams
SKU 8525-II
$0.00
8525-II
Item
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DOMETIC (HYDROFLAME) 8525-II
Home/Store/RV CATALOG/APPLIANCES/Furnace Diagrams
Product Details
Brand: Dometic

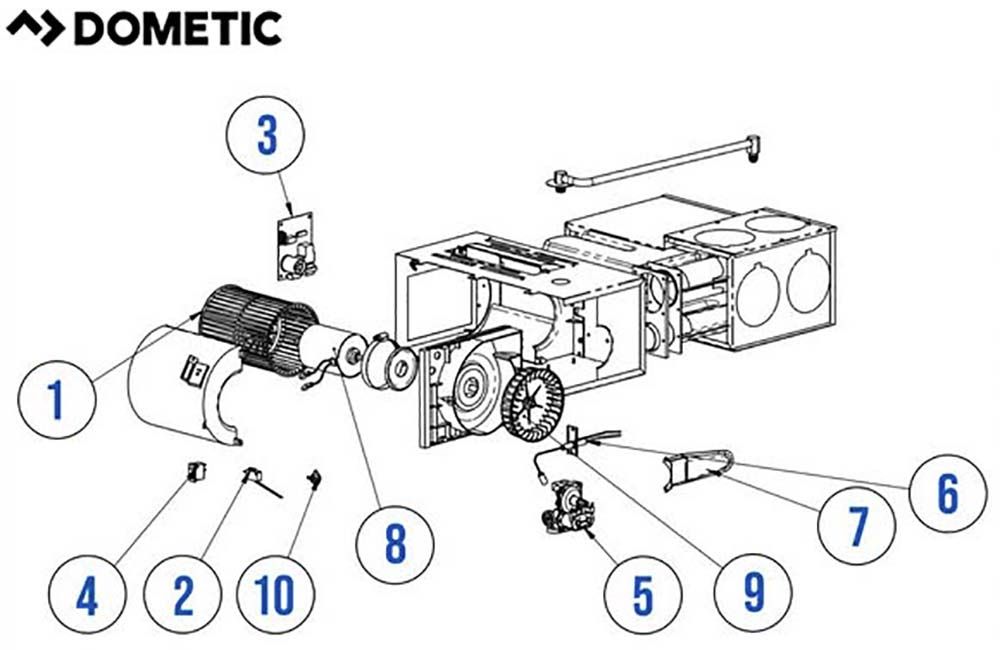

# Description MFG # Part # Price
1 Wheel - Blower (No Longer Available) 33618 -
2 Sail Switch - (No Longer Available) 35054 -
3 Control Board - (Replaces 38676) 31501 350001 $247.81
4 Breaker - Circuit (Replaces 33751) 33780 -
5 Valve - Gas (No Longer Available) 31155 -
6 Electrode - (No Longer Available) 36999 -
7 Burner - (No Longer Available) 33842 -
8 Motor - Kit 30130 -
9 Wheel - Combustion 33128 350047 $11.11
10 Switch - Limit (190 Degree) 35132MC

35132MC

$39.73
Show More
You May Also Like
31501 Board
FURNACE IGNITION CONTROL AND ADAPTER BOARD
FURNACE IGNITION CONTROL AND ADAPTER BOARD
Atwood Ignition Control Modular Board (31501). Adapter board is now sold separate (35325).
SKU 350001
$247.81
33128 Combustion Wheel
COMBUSTION WHEEL WITH CLAMP
COMBUSTION WHEEL WITH CLAMP
This works on furnace model #s: 85-IV 16, 85-IV 20, 85-IV 25, 85-IV 31, 85-IV 35, 85-III 16-20, 85-III 25, 85-III 31-35, 85-II 16-20, 85-II 25, 85-II 31-35, 85-I 31-35, 89-I DC, 89-I AC, 89-II AC, 89-II DC, 89-III DC, 89-III AC.
SKU 350047A
$11.11

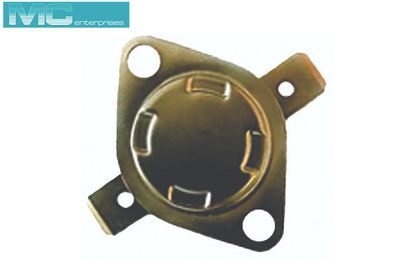

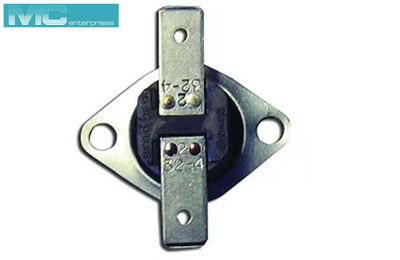

LIMIT SWITCH - F/85II 89I L130
LIMIT SWITCH - F/85II 89I L130
LIMIT SWITCH - F/85II 89I L130
F/85II 89I L130.
SKU 35132MC
$39.73
