8520-IV Diagram
+2

DOMETIC (HYDROFLAME) 8520-IV

Home/Store/RV CATALOG/APPLIANCES/Furnace Diagrams
SKU 8520-IV
$0.00
8020-IV
Item
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
DOMETIC (HYDROFLAME) 8520-IV
Home/Store/RV CATALOG/APPLIANCES/Furnace Diagrams
Product Details
Brand: Dometic

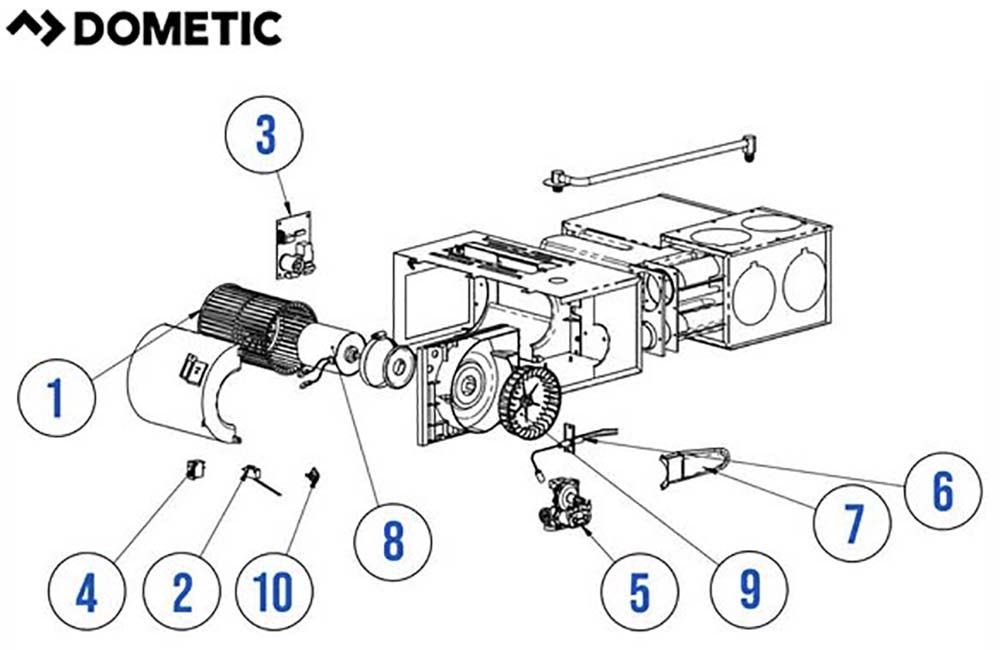

# Description MFG # Part # Price
1 Wheel - Blower 33126 350010 $25.64
2 Sail Switch - (Replaces 36680 & 37716) 31377 -
3 Control Board - (Replaces 38676) 31501 350001 $247.81
4 Breaker - Circuit (Replaces 33751) 33780 -
5 Valve - Gas (Replaces 36035 & 37383) 31150 350021 $96.53
6 Electrode - (Replaces 37057) 34570 350233 $26.34
7 Burner Head - (Replaces 36043) 30268 350018 $34.13
8 Motor - (Replaces 37696) 37359 -
9 Wheel - Combustion 33128 350047 $11.11
10 Switch - Limit (190 Degree) 37022 350005 $22.91
Show More
You May Also Like
31501 Board
FURNACE IGNITION CONTROL AND ADAPTER BOARD
FURNACE IGNITION CONTROL AND ADAPTER BOARD
Atwood Ignition Control Modular Board (31501). Adapter board is now sold separate (35325).
SKU 350001
$247.81
31150 Gas Valve
GAS VALVE - SIDE PORT
GAS VALVE - SIDE PORT
Atwood White Rodger DC Valve.
SKU 350021
$96.53
30268 Burner
ATWOOD GAS BURNER ASSEMBLY
ATWOOD GAS BURNER ASSEMBLY
Burner head for Hydro Flame furnaces.
SKU 350018
$34.13
33126 Blower Wheel
FURNACE BLOWER WHEEL
FURNACE BLOWER WHEEL
Atwood Blower Wheel and Clamp, plastic (10CS)
SKU 350010
$25.64
33128 Combustion Wheel
COMBUSTION WHEEL WITH CLAMP
COMBUSTION WHEEL WITH CLAMP
This works on furnace model #s: 85-IV 16, 85-IV 20, 85-IV 25, 85-IV 31, 85-IV 35, 85-III 16-20, 85-III 25, 85-III 31-35, 85-II 16-20, 85-II 25, 85-II 31-35, 85-I 31-35, 89-I DC, 89-I AC, 89-II AC, 89-II DC, 89-III DC, 89-III AC.
SKU 350047A
$11.11
37022 Limit Switch
LIMIT SWITCH - 170 DEGREE (ATWOOD)
LIMIT SWITCH - 170 DEGREE (ATWOOD)
190 Degree 36TXV11, L190 (10CS)
SKU 350005
$22.91
