DGAM, DGAT & DLAS DD SERIES - COLEMAN FURNACE
Product Details

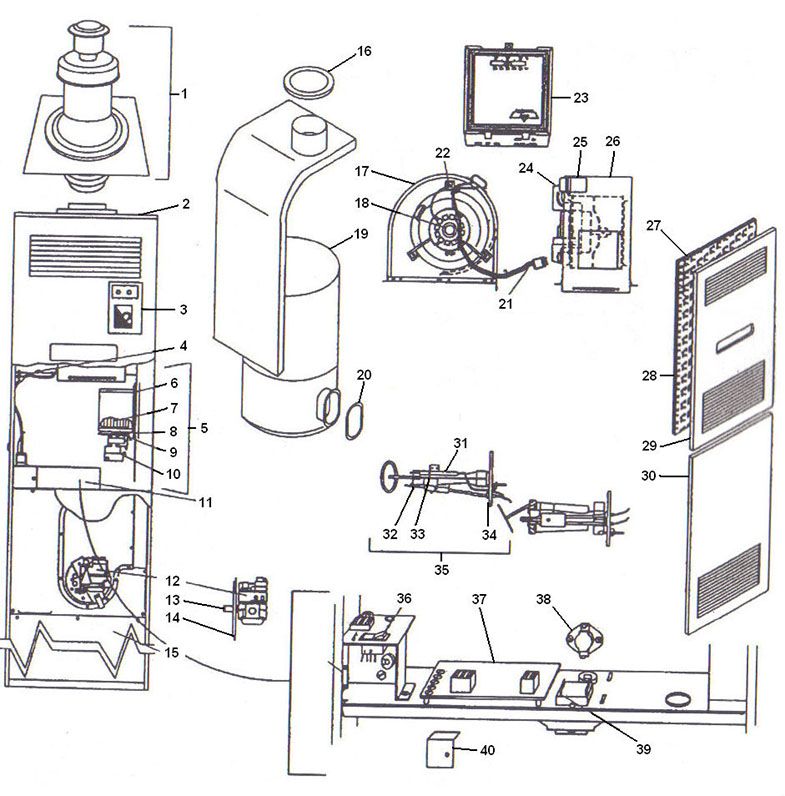

| # | DESCRIPTION | NO. REQ. |
USED ON MODEL |
NUMBER | PART # | PRICE |
| 1 | Roof Jack | 1 | All | 4000 Series | - | |
| 2 | Casing Top | 1 | All | 7945A5721 | - | |
| 3 | Audio Tape Pkg. | 1 | All | 7990-398 | - | |
| 4 | Limit Switch - Upper (180° manual reset) | 1 | All | 7624A3591 | 232111 | $25.06 |
| 5 | Booster Assembly - (Includes 6-10) | 1 | All | 7990-6451 | 232270 | $698.46 |
| 6 | Gasket - Booster | 1 | All | 7995A386 | - | |
| 7 | Impellor - (3-13/16 x 1-7/8 x 3/8) | 1 | All | 8865-3611 | - | |
| 8 | Mount Plate - Booster Motor | 1 | All | 2900-147 | - | |
| 9 | Gasket - Motor Mount Plate | 1 | All | 7990-300 | - | |
| 10 | Booster Motor - 3000 RPM | 1 | All | 7990-317P | - | |
| 11 | Cover - Control Box | 1 | All | 7945A1351 | - | |
| 12 | Gas Valve - (24V .5 Amp 1/2" x 3/8") | 1 | All | S1-02543267000 | 232228 | $293.74 |
| 13 | See Chart - for Burner Orifice Number | 1 | All | -- | - | |
| 14 | Bracket - Valve | 1 | All | 7945B5151 | - | |
| 15 | Panel - (Coil Cavity 19-13/16") | 1 | DGAM, DGAT | 7656A5201 | - | |
| 16 | Gasket Pkg. - Heat Exchanger | 1 | All | 7945-3011 | - | |
| 17 | Scroll | 7966A530 | - | |||
| 18 | Motor - This motor is a new "high efficiency" replacement. It is a permanent split capacitor (PCS) design for the previously produced shaded pole design. This motor will use less electricity (lower AMP draw) but produce enough torque for the fan to do the work that is required. To make installation similar, we have provided the capacitor with the motor so that you only have to work with similar leads to the original motor. | DGAT, DLAS | 7966-311P | 232258 | $315.40 | |
| Motor - 056, 070 & 075 | DGAM | 1468-2209 | - | |||
| Motor - 090 | DGAT, DLAS | 1468-2129 | - | |||
| 19 | Heat Exchanger - (w/Gaskets) | 1 | All | 7995-5751 | - | |
| 20 | Gasket Pkg. - Heat Exchanger | 1 | All | 7945-3011 | - | |
| 21 | Connector Plug | 7680-348 | - | |||
| 22 | Mount - Motor (3/pk) | 7670-3551 | 232276 | $41.38 | ||
| 23 | Thermostat - (Adj. Ant.) | 1 | All | 7670-368P/A | 103001 | $66.93 |
| 24 | Clamp - Motor | 7670-6391 | - | |||
| 25 | Run Capacitor - 090* | 1499-4461
(7.5 Mfd. 370V.) |
102114 | $ 3.34 | ||
| 26 | Blower Wheel - (10-5/8 dia. x 7-1/8 x 1/2) | 1472-2751 | - | |||
| 27 | Retainer - Filter | 2 | All | 7970-3451 | R-20 | $ 4.83 |
| 28 | Filter - (19-3/8 x 35-3/4 x 1/4) | 1 | All | 7660-3401 | F-20 | $11.60 |
| Filter Kit - (Includes filter and two retainers) | 1 | All | K-20 | $22.24 | ||
| 29 | Panel - Upper
Panel - Upper |
1
1 |
DLAS, DGAT
DGAM |
7990-1561 7675-1561 |
-
- |
|
| 30 | Panel - Lower
Panel - Lower |
1
1 |
DGAM, DGAT
DLAS |
7956-1571 7956-1631 |
-
- |
|
| 31 | Remote Sensor | 1 | All | 7975-3881 | 232310 | $129.60 |
| 32 | Ignitor - Hot Surface | 1 | All | 1474-0521 | 232280 | $82.32 |
| 33 | Sheild - Ignitor | 1 | All | 7970-179 | - | |
| 34 | Plate - Mounting (Burner) | 1 | All | 7945-1631 | - | |
| 35 | Burner Assy. - (Less Gas Valve - Incl. 32, 33, 34) | 1 | All | 7970-5851/A | - | |
| 36 | Switch - System | 1 | All | 7681-3301 | - | |
| 37 | Integrated Control
Integrated Control |
1
1 |
056, 070
075, 090 |
7956-319P 7990-319P |
232269
232269 |
$385.66
$385.66 |
| 38 | Limit Switch - (Open--140° Close--110°)
Limit Switch - (Open--145° Close--115°) Limit Switch - (Open--150° Close--120°) |
1
1 1 |
056
070, 075 090 |
7945-3281 7970-3281 7995-3381 |
232287
- - |
$26.94
- - |
| 39 | Transformer - (115-24V 40VA) | 1 | All | 2940A3541 | - | |
| 40 | Cover - Junction Box | 1 | All | 7956-1121 | - |
