DGAM, DGAT & DLAS DC SERIES - COLEMAN FURNACE
Product Details

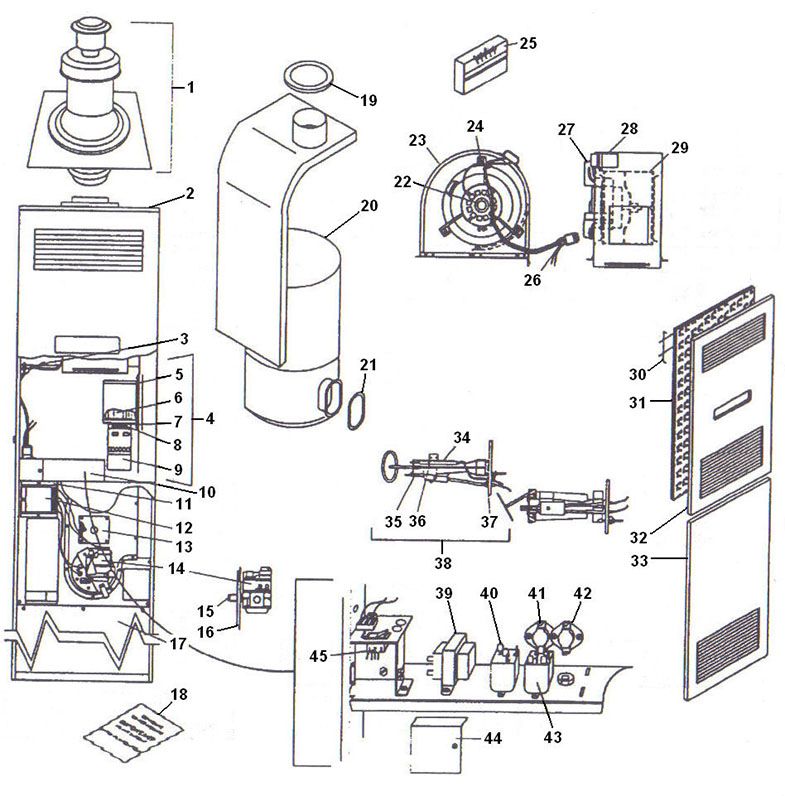

| # | DESCRIPTION | NO. REQ. |
USED ON MODEL |
MFG # | PART # | PRICE |
| 1 | Roof Jack - (See Furnace Wiring Dia.) | 1 | All | 4000 Series | - | |
| 2 | Casing - Top | 1 | All | 7945A5721 | - | |
| 3 | Upper Limit Switch - (0-180° Manual Reset) | 1 | All | 7624A3591 | 232111 | $25.06 |
| 4 | Booster Assembly - (Includes 5-9) | 1 | All | 7990-6451 | 232270 | $698.46 |
| 5 | Gasket - Booster | 1 | All | 7995A386 | - | |
| 6 | Impellor - (3-13/16 x 1-7/8 x 3/8) | 1 | All | 8865-3611 | - | |
| 7 | Mount Plate - Booster Motor | 1 | All | 8865A1471 | - | |
| 8 | Motor Mount - Rubber (4/pkg.) | 1 | All | 8865B1281 | - | |
| 9 | Booster Motor - 3000 RPM | 1 | All | 7995-3169 | 232257 | $311.38 |
| 10 | Cover - Control Box | 1 | All | 7945A1351 | - | |
| 11 | Mounting Plate - Ignition Module | 1 | All | 7970-120 | - | |
| 12 | Ignition Module - Triple Try | 1 | All | 1474-0061 | 232279 | $418.43 |
| 13 | Plate - Observation w/Gasket Gasket - Observation Plate |
1 1 |
All | 7706-5251 7706-3251 |
- - |
|
| 14 | Gas Valve - 24V .5 Amp 1/2" x 3/8" | 1 | All | 7707-3261 | 232228 | $293.74 |
| 15 | Note: See Chart for Burner Orifice # | All | - | |||
| 16 | Bracket - Valve | 1 | All | 7945B5151 | - | |
| 17 | Panel - (Coil Cavity 19-13/16") | 1 | All | 7656A5201 | - | |
| 18 | Customer Envelope | 1 | All | 1973-072/A | - | |
| 19 | Gasket Pkg. - Heat Exchanger | 1 | All | 7945-3011 | - | |
| 20 | Heat Exchanger - w/Gaskets Heat Exchanger - w/Gaskets Heat Exchanger - w/Gaskets |
1 |
056 070, 075 095 |
7956-5751 7975-5751 7995-5751 |
- - - |
|
| 21 | Gasket Pkg. - Heat Exchanger | 1 | All | 7945-3011 | - | |
| 22 | Motor - This motor is a new "high efficiency" replacement. It is a permanent split capacitor (PCS) design for the previously produced shaded pole design. This motor will use less electricity (lower AMP draw) but produce enough torque for the fan to do the work that is required. To make installation similar, we have provided the capacitor with the motor so that you only have to work with similar leads to the original motor. |
DGAT, DLAS | 7966-311P | 232258 | $315.40 | |
| Motor - 056, 070 & 075 | DGAM | 1468-2209 | - | |||
| Motor - 095 | DGAT, DLAS | 1468-2129 | - | |||
| Motor - 095 | DGAM | 1468-2209 | - | |||
| 23 | Scroll | 7966A530 | - | |||
| 24 | Mount - Motor (3/pk) | 7670-3551 | 232276 | $41.38 | ||
| 25 | Thermostat - (Adj. Ant.) | 1 | All | 7670-368P | 103001 | $66.93 |
| 26 | Connector - Plug | 7680-348 | - | |||
| 27 | Clamp - Motor | 7670-5391 | - | |||
| 28 | Run Capacitor - 095* (7.5 Mfd. 370V.) | 1499-4461 | 102114 | $ 3.34 | ||
| 29 | Blower Wheel - (10-5/8 dia. x 7-1/8 x 1/2) | 1472-2751 | - | |||
| 30 | Retainer - Filter | 2 | All | 7970-3451 | R-20 | $ 4.83 |
| 31 | Filter - (19-3/8 x 35-3/4 x 1/4) | 1 | All | 7660-3401 | F-20 | $11.60 |
| Filter Kit - (Incl. filter and two retainers) | 1 | All | K-20 | $22.24 | ||
| 32 | Panel -Upper Panel - Upper |
1 1 |
DGAM DGAT, DLAS |
7975-1561 7956-5231 |
- - |
|
| 33 | Panel - Lower Panel - Lower |
1 | DGAM, DGAT DLAS |
7956-1571 7956-1631 |
- - |
|
| 34 | Remote Sensor | 1 | All | 7975-3881 | 232310 | $129.60 |
| 35 | Ignitor - Hot Surface | 1 | All | 1474-0521 | 232280 | $82.32 |
| 36 | Sheild - Ignitor | 1 | All | 7970-179 | - | |
| 37 | Plate - Mounting (Burner) | 1 | All | 7945-1631 | - | |
| 38 | Burner Assy - (Less Gas Valve)(Inc. 12, 13 16) | 1 | All | 7970-5851/A | - | |
| 39 | Transformer - (115 - 24V 40VA) Transformer - (115 - 24V 15VA) |
1 | DGAM, DGAT DLAS |
2940A3541 7945-3551 |
- - |
|
| 40 | Booster Relay | 1 | All | 7956-3671 | - | |
| 41 | Fan Switch - (C - 110° - 90°) | 1 | All | 7975-3281 | 232142 | $32.85 |
| 42 | Limit Switch - (Open--140° Close--110°) Limit Switch - (Open--145° Close--115°) Limit Switch - (Open--150° Close--120°) |
1 1 1 |
056 070, 075 090 |
7945-3281 7970-3281 7995-3281 |
232287 - - |
$26.94 - - |
| 43 | Relay - A/C | 1 | All | 7975-3771 | - | |
| 44 | Cover - Junction Box | 1 | All | 7956-1121 | - |
