CMH SERIES

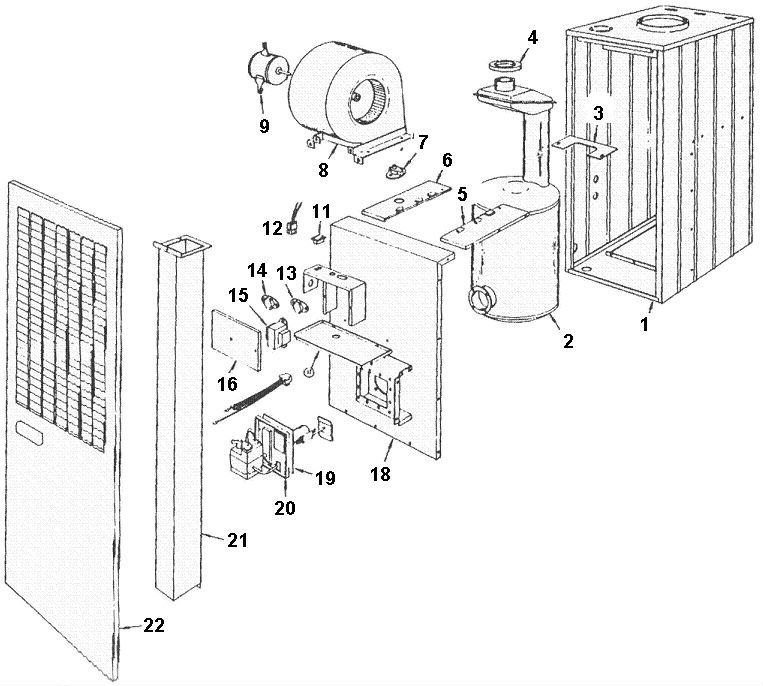

CMH Furnace Diagram

+2

CMH SERIES

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS

Product Details

#	DESCRIPTION	MFG. #	PART #	PRICE
1	Cabinet Assembly	105102000-	-
2	Heat Exchanger - 80,000 BTUH	105035002-	-
	Heat Exchanger - 72,000 BTUH	105035003-	-
	Heat Exchanger - 65,000 BTUH	105035004-	-
	Heat Exchanger - 55,000 BTUH	105035005-	-
	Heat Exchanger - 45,000 BTUH	105035006-	-
3	Filler	105002000-	-
4	Gasket - Flue	105113000-	-
5	Blower Deck - RH	105019001-	-
6	Blower Deck - LH	105019000-	-
7	Limit Switch - Manual Reset	105115000-	-
8	Blower Housing & Wheel - 80MBTUH	105046000-	-
	Blower Housing & Wheel - 72-45 MBTUH	104952001-	-
	Blower Wheel Only - 80MBTUH	105046001-	-
	Blower Wheel Only - 72-45 MBTUH	104703001-	230253	$118.88
9	Motor - 80 MBTUH	105242000-	-
	Motor - 65 & 72 MBTUH	105242001-	-
	Motor - 45 & 55 MBTUH	105242002-	-
10	Blower Rail - RHP	104998002	-
10	Blower Rail - LHP	104998003	-
11	Switch	104993000-	-
12	Electrical Box	105032000-	-
13	Limit Switch	300609025-	-
14	Fan Switch	305283001-	-
15	Transformer - 10VA	105013000-	-
15	Transformer - 20VA	104993000-	-
16	Door - Elect. Box	105003000-	-
17	Vestibule Divider	105016000-	-
18	Division Panel Assy.	105101000-	-
19	Gasket - Burner	105004000-	-
20	See Burner List	Burner	-
21	Air Tube - Combustion	105033000-	-
22	Door	105023006-	-
23*	Filter & Retainer - (Optional)	105238000-	-
24*	Filters Only	102957040-	-
25*	Coil Cabinet - (Optional)** /	105094000-/	-
26*	Thermostat - Heat Only	103634001-	-
26*	Thermostat - Heat & Cool	914154-	103001	$66.93
