CMF95 Furnace Diagram
+2

CMF95 SERIES DOWNFLOW FURNACE

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU CMF95
$0.00
045T PG, 072T PG
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
CMF95 SERIES DOWNFLOW FURNACE
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

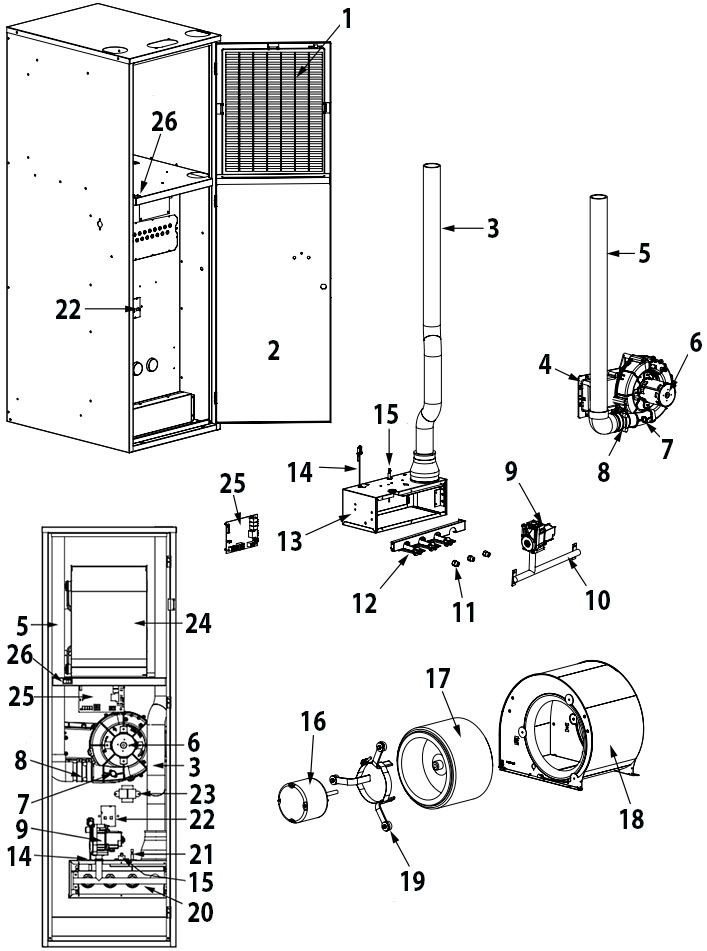

# DESCRIPTION 045T PG 072T PG PART # PRICE
1 Filter 669925R 669925R -
2 Door - Assembly 921489 921489 -
3 Air Pipe - Combustion 664645R 664645R -
4 Header Box - Outlet 904802 904802 -
5 Vent Pipe 664644R 664644R -
6 Inducer Motor - (with Gasket) 921494 921494 233155 $484.54
Inducer Orifice - (Not Shown) 669927R 669926R -
7 Limit Switch - Vent 626599R 626599R 233162 $13.89
8 Drain Assembly - Inline 664435R 664435R -
9 Gas Valve 903596 903596 233105 $135.15
10 Manifold 664639R 664640R -
11 Orifice - (LP) 661057R - 233119 $12.19
Orifice - (LP) - 661056R 233169 $12.08
Orifice - (Natural Gas) 661049R - -
Orifice - (Natural Gas) - 661047R -
12 Inshot Burner 661135R 661135R 233045 $15.90
13 Burner Box - - -
View Port - Burner (Not Shown) 632216R 632216R -
14 Ignitor 1016290S 1016290S 233167 $65.47
15 Limit Switch - Roll Out 626609R 626609R 233165 $11.90
16 Blower Motor - Fan & Limit 1032131R 1032133R -
17 Blower Wheel 667258R 667258R 230257 $107.01
18 Blower Housing 297217R 297217R -
19 Mount Kit - Motor 904951 904951 -
20 Burner Assembly - Gas Manifold 921495 921496 -
21 Sensor - Flame 903600 903600 102880 $28.14
22 Limit Switch - Main Air 1018776R 1018776R -
23 Transformer 622341R 622341R 233166 $29.42
24 Blower Assembly - - -
25 Control Board 1021573R 1021573R -
26 Switch - On/Off Door 632337R 632337R 233056 $ 7.33
27 Limit Switch - Blower Deck (Not Shown) 626602R 626602R 233153 $ 9.26
28 Drain Tube - (Soft, 42")(Not Shown) 664278R 664278R -
Drain Tube - (Hard J)(Not Shown) 663706R 663706R -
29 Fuse - (Not Shown) 632261R 632261R 233102 $10.21
