CMF2 SERIES DOWNFLOW FURNACE - CMF80 Convertible and CMF 100

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU CMF2
$0.00
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
CMF2 SERIES DOWNFLOW FURNACE - CMF80 Convertible and CMF 100
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

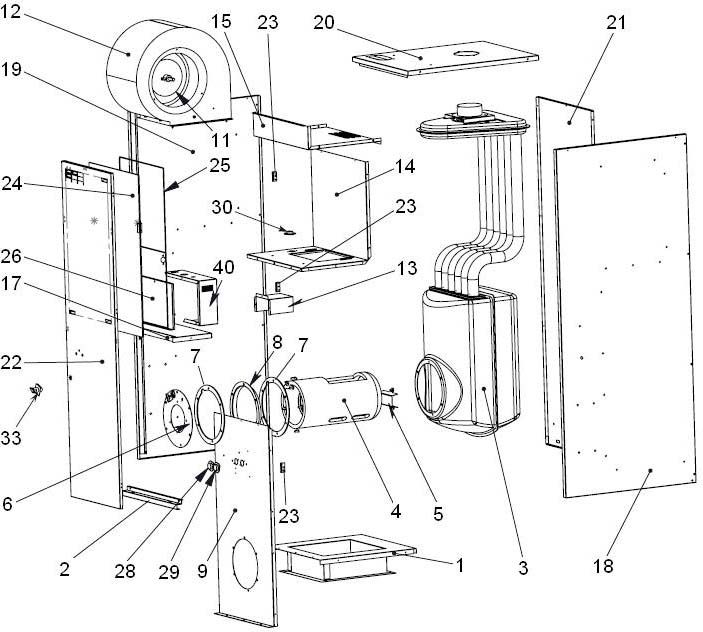

# DESCRIPTION MFG # PART # PRICE
1 Panel - Bottom Support M0030804R -
2 Panel - Bottom Front 264860 -
3 HE Assy - Complete M0031201 -
4 Combustion Chamber 660609 -
5 Bracket - Chamber 383720 -
6 Plate - Burner 383690 -
7 Gasket - HE 689528 233134 $11.68
8 Ring - Comb. Chamber 383600 233135 $16.05
9 Panel - HE M0030805R -
10 Top Insulation - HE 689970 -
11 Motor - Blower (AO Smith) 904502 102079 $345.42
12 Blower Assy - Complete 903866 238006 $798.32
13 Harness - Motor Blower 262980R -
14 Blower Deck 290481 -
15 Partition - Upper 290491 -
16 Shield - Fan Limit 290501 -
17 Shelf 290511 -
18 Panel - Right Side M0030801R -
19 Panel - Left Side M0030802R -
20 Panel - Top 290601 -
21 Panel - Back M0030803 -
22 Door Assy - Complete M0031001R -
23 Hinge Assy 301308000 -
24 Filter 669073 F-10 $ 8.52
25 Retainer - Filter 669647 230138 $35.09
26 Cover - Control Box 386321 -
27 Control Box 386720 -
28 Limit Switch - Main (160 F) 626553 230141 $29.34
29 Limit Switch - Fan (115 F) 626552 -
30 Limit Switch - Deck (225 F) 626465 238177 $26.24
31 Flex Hose - Burner (Not Shown) 663734 238187 $37.94
32 Clamp - Hose 606208 -
33 Latch Assy 103887000 230175 $30.64
34 Brand Label - Miller 687013 -
35 Brand Label - Intertherm 687012 -
36 Gasket - Burner (Not Shown) 688982 -
37 Receptacle - (Not Shown) 632482 230180 $18.98
38 Switch - Door (Not Shown) 632125 233115 $30.16
39 Switch - ON/OFF (Not Shown) 632337 233056 $ 7.33
Show More
