CMF SERIES COUNTERFLOW FURNACE

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU CMF
$0.00
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
CMF SERIES COUNTERFLOW FURNACE
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

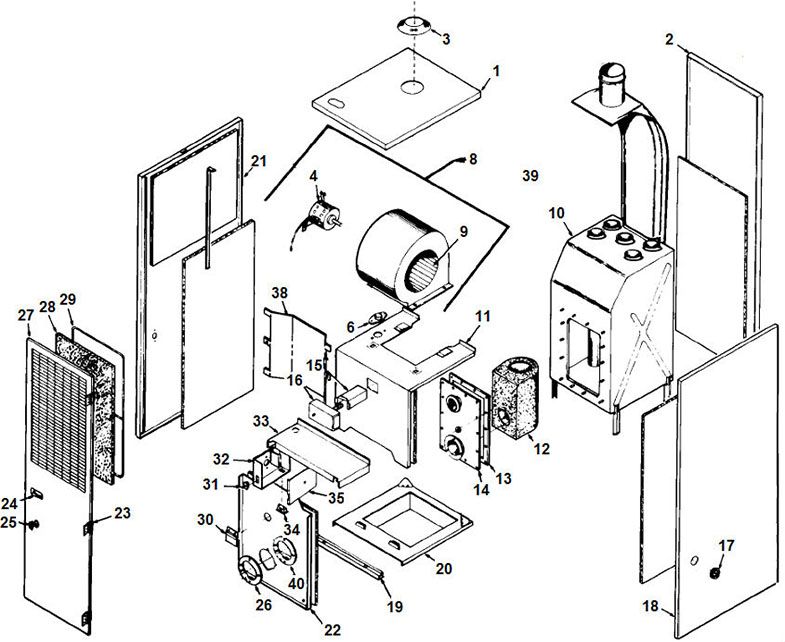

# DESCRIPTION MFG # PART # PRICE
1 Panel - Top 244630 -
2 Panel Assembly - Rear 244570 -
3 Collar - Flue Pipe 20076300 -
4 Motor - (65) 105326001
Motor - (80) 305313000
Motor - (100) 304418000
5 Wire Harness - Blower Motor (Not Shown) 262980 -
6 Limit Switch - Aux. 300609008 238176 $44.77
7 Receptacle - Aux. Limit 302255008 -
8 Blower Assembly - (65) 104952002 -
Blower Assembly - (80) 902364 238006 $798.32
Blower Assembly - (100) 304794000 -
9 Blower Wheel - (65) 104703001 230253 $118.88
Blower Wheel - (80) 304074000 230253 $118.88
Blower Wheel - (100) 304093000 -
10 Heat Exchanger Assembly 103780000 230166 $3597.50
11 Blower Deck Assembly 244610 -
12 Combustion Chamber 901818 238181 $98.21
13 Gasket - Burner Plate 301205000 230239 $33.97
14 Burner Plate Weldment 103788000 -
15 Shield - Fan & Limit 103708000 -
16 Control - Fan & Limit 300602002 -
17 Grommet 631670 -
18 Panel Assembly - Right 244580 -
19 Bottom Front Pan 244530 -
20 Bottom Pan Weldment 244520 -
21 Panel Assembly - Left 244590 -
22 Panel Assembly - Division 244600 -
23 Hinge 301308000 -
24 Name Label 668734 -
25 Latch Assembly 103887000 230175 $30.64
26 Gasket - Burner 300001000 230218 $ 9.26
27 Door Assembly 352830 -
28 Filter 669073 F-10 $ 8.52
29 Retainer - Filter 302257000 -
30 Door - Observation 244502 -
31 Switch 304629000 -
32 Junction Box Weldment 244540 -
33 Divider - Vestibule 352992 -
34 Receptacle 103278000 -
35 Cover - Junction Box 244560 -
38 Baffle - Sound 104663000 -
39 Seal - Replacement Door (Not Shown) 728483 -
40 Gasket - Burner 688982 -
41 Kit - Stud Replacement (Not Shown) 104300000 -
42 Burner Flexible Hose (Not Shown) 663734 -
43 Clamp - Hose (Not Shown) 606208 -
