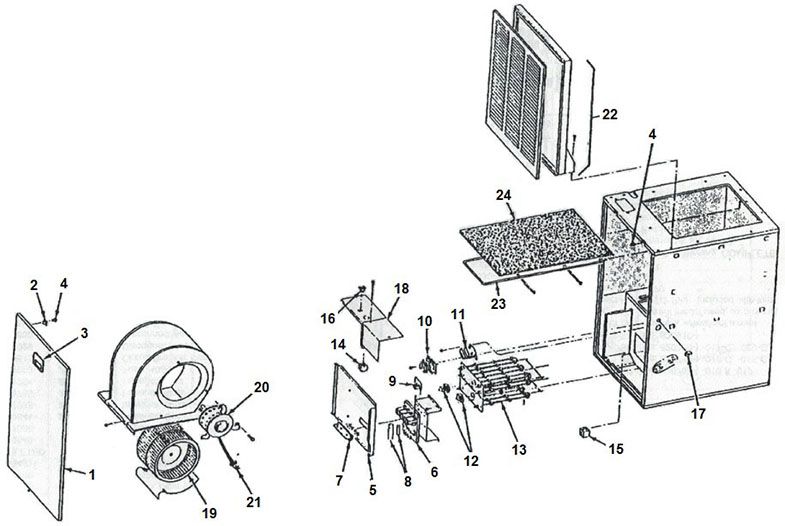

CME A Furnace Diagram
+2

CME "A" SERIES - ELECTRIC FURNACE

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU CME
$0.00
CME-010HA-3, CME-012HA-3, CME-015HA-3, CME-017HA-3, CME-020HA-3, CME-023HA-3
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
CME "A" SERIES - ELECTRIC FURNACE
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
Brand: MILLER
# DESCRIPTION MFG # PART # PRICE
1 Panel Door - COMPLETE (Includes Items 2 & 3) 901670- -
2 Receptable - Latch 668420- 231280 $ 6.53
3 Handle - Door 668671- -
4 Strike - Latch 668421- 231281 $ 5.84
5 Door - Control Panel: For -010 Models
Door - Control Panel: For -012, -015, -017, -020 & -023 Models
431550-
431560-
-
-
6 Conversion Kit - Circuit Breaker (2-Pole) 902513- 239820 $321.07
Disconnect Assy. - f/012, 015 and 017) 621029- -
Disconnect Assy. - f/020 and 023) 621030- -
Conversion Kit - Circuit Breaker (4-Pole) 902514- 239821 $401.44
7 Interlock - Safety (2-Pole): For -010 Models 620540- -
Interlock - Safety (4-Pole): Old Style 620541- -
Interlock - Safety (4-Pole): New Style 621035- -
8 Fuse - 60 Amp: (2) For -010, -015 & -017 Models;
(4) For -020 7 -023 Models
631755- -
Fuse - 40 Amp: (2) For -012, -015 & -017 Models 631754- -
9 Lugs - Bussing: Standard For -012, -015 & -017 Models /
Optional For -020 & -023 Models (N/A on -010 Models) (sold per each)
900965- -
10 Sequencer - Replacement (2 & 3 Stage): For -010, -012, -015 & -017 Models 901075- 239763 $84.62
Sequencer - Replacement (4 Stage): For -020 & -023 Models 901076- 239764 $89.60
11 Transformer - 20 VA 620857- -
12 Limit - D.P. / 145° (1): All Models 626261- 238229 $30.43
Limit - S.P. / 140° (1): -015 & -017 626259- 238228 $32.27
Limit - D.P. / 140° (1): -020 & -023 626260- 238227 $61.76
13 Element Assembly - 5.0 kw, @ 240 V -
(1) For -015 Models 432731- 239828 $148.22
Element Assembly - 5.4 kw, @ 240 V -
(1) For -017 Models 432732- 239830 $168.30
Element Assembly - 10.0 kw, @ 240 V -
(1) For -010, -015 & -023 Models (2) For -020 Models 432721- 239831 $270.02
Element Assembly - 10.8 kw, @ 240 V - -
(1) For -017 Models 432722- 239835 $303.55
Element Assembly - 11.6 kw, @ 240 V -
(1) For -012 & -023 Models 432723- 239836 $303.55
14 Connector Receptacle - (12 Socket) 631727- -
15 Lug - Ground 631638- -
16 Switch - APSR ("ON"/"AUTO" Air Control) 631677- -
17 Bushing - 1/2" Diameter 631460- -
18 Cover - Raceway 225550- -
19 Wheel - Air Circulator: For Single-Speed Blowers 667117- 230253 $118.88
20 Motor - No 620700 - COMPLETE Includes Intergrated Mounting Brackets) For -010 & -012 Models
Motor - No 620710 - COMPLETE Includes Intergrated Mounting Brackets) For -015 & -017 Models
Motor - No 620720 - COMPLETE Includes Intergrated Mounting Brackets) For -020 & -023 Models
901292

901293

901294
238097

238097

238097
$582.34

$582.34

$582.34
21 Connector - Plug (12 Pin) 631756- -
22 Grille & Frame Assembly - (Single Package)
Grille & Frame Assembly - (Bulk Package - 4 each)
450041- Grille
348961- Frame Assembly
901688-
901669-

-
-

23 Retainer - Filter 668412- -
24 Filter - Return Air (FB-1620) 668347- 2488626 $ 2.99
