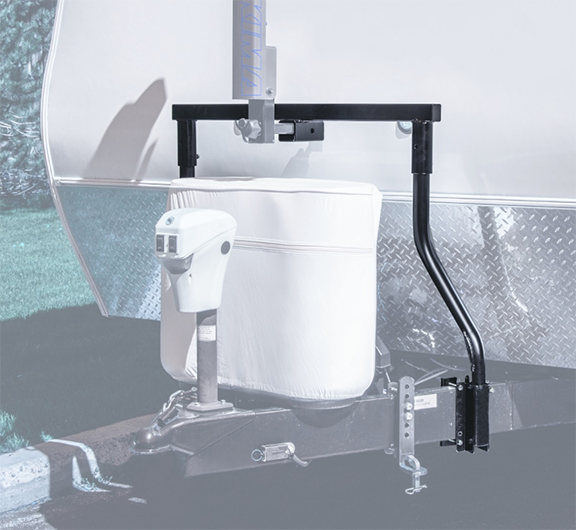

BIKE BUNK

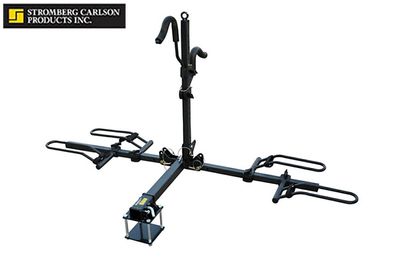

All steel design supports up to 100 lbs. Critical Dimensions: 33.5″ from the top of your A-frame to the top of the Bike Bunk cross tube, 29” from the top of your A-frame to the bottom of the receiver tube on the cross tube. Due to the bent design on the vertical posts, lower pockets can be mounted on your A-frame at widths varying from 14″ to 55″. Max A-frame bar height of 6″. If you have propane tanks installed and the bike bunk cross bar is located above them, one of three things can be done to allow you to remove your tanks for refill or to access valves without removing the cross tube. Replace your existing cover with a soft vinyl cover, allowing access to your LP valves or to remove LP tanks without having to remove the cross bar. Replace your existing cover with a flip-top hard plastic cover to access your LP valves. You will need to remove the cross bar to remove cover and refill LP tanks. Leave the tank cover off for direct access to your LP tanks. If you have an Airstream, please note the clearance does not accommodate the 30 gal covered LP tanks. Bike rack not included. See our Post Mount and Platform Mount Bike Racks.
