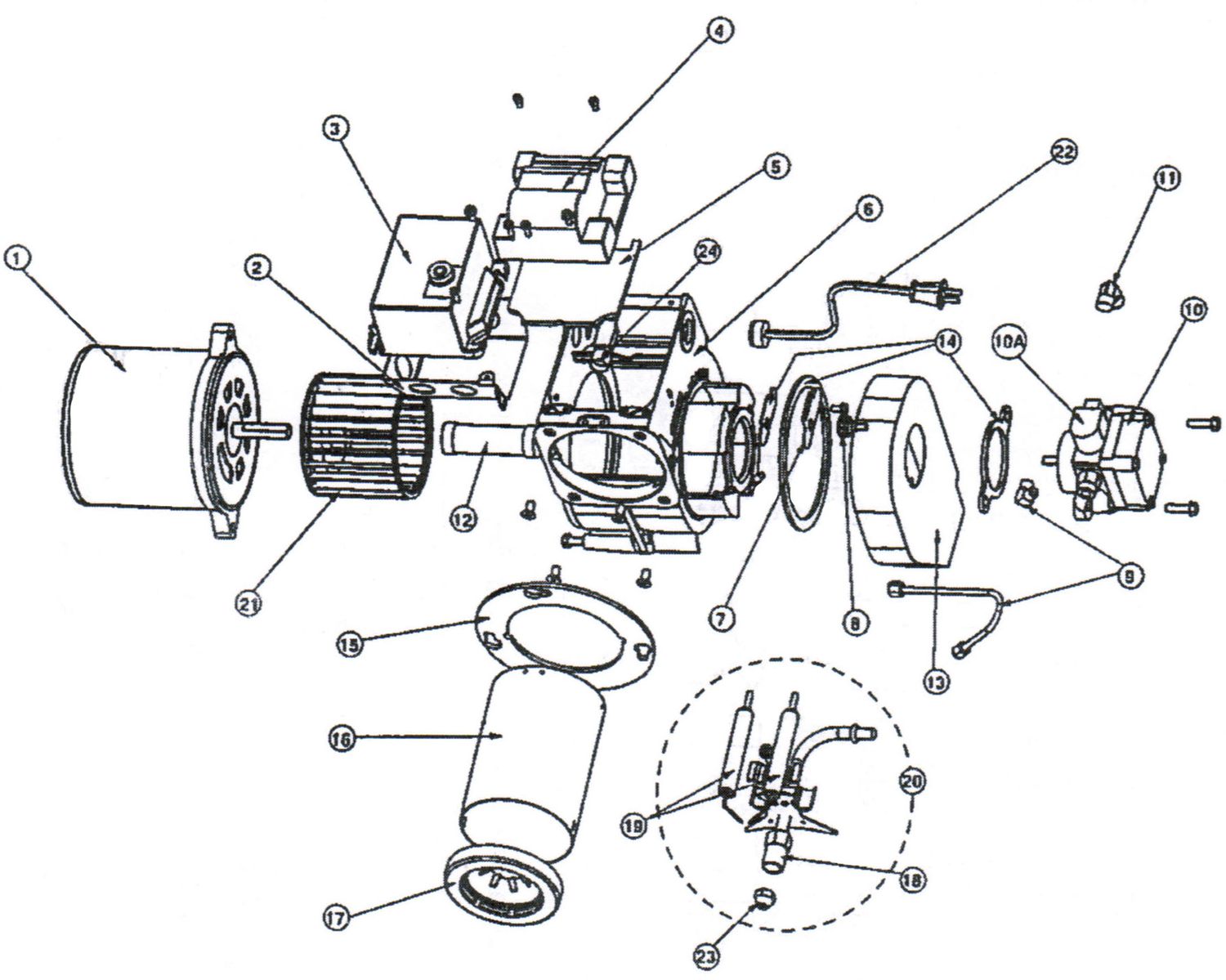

AF-10 Diagram
+2

BECKET OIL BURNER - ND1001 (AF-10)

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU AF-10
$0.00
CMF2, CMF80, CMF100
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
BECKET OIL BURNER - ND1001 (AF-10)
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
# DESCRIPTION MFG # PART # PRICE
1 Motor - PSC 21805U 621945 -
2 Box - Mounting 660591 -
3 Primary Control - (HW) 7456U 624647 -
4 Transformer - 51771U 621943 -
5 Gasket Kit - (Transformer) 660914 -
6 Housing 660282 -
7 Plate - Escutcheon 660592 -
8 Locknut 660593 -
9 Oil Line Kit 660594 230324 $173.26
10 Fuel Pump - Clean cut 622090 -
10A Soleniod Valve Stem Kit - 21877U 624648 -
11 Elbow - Street 660595 -
12 Coupling Kit 660596 239814 $39.25
13 Inlet Air Box Assembly 660928 239813 $130.93
14 Gasket Kit - (Inlet Box) 660915 -
15 Flange - Mounting 660597 239802 $52.37
16 Air Tube 661127 239803 $148.53
17 Burner Head - (All Models)(F3 Head) 660468 -
18 Nozzle Adapter 660059 -
19 Electrode Kit 660917 -
20 Gun Drawer Assy 660600 230183 $168.64
21 Blower Wheel 660048 -
22 Cord - Power 634568 -
23 Nozzle - (0.60 GPH) 660677 -
Nozzle - (0.65 GPH) 660681 -
24 Flame Detector - (WR) 660602 -
Flame Detector - (HW) 660603 231373 $93.42
25 Gasket - Burner Mounting (N/S) 660604 230218 $ 9.26
26 Oil Burner Assembly - Complete 75 904607 230219 $1823.90
