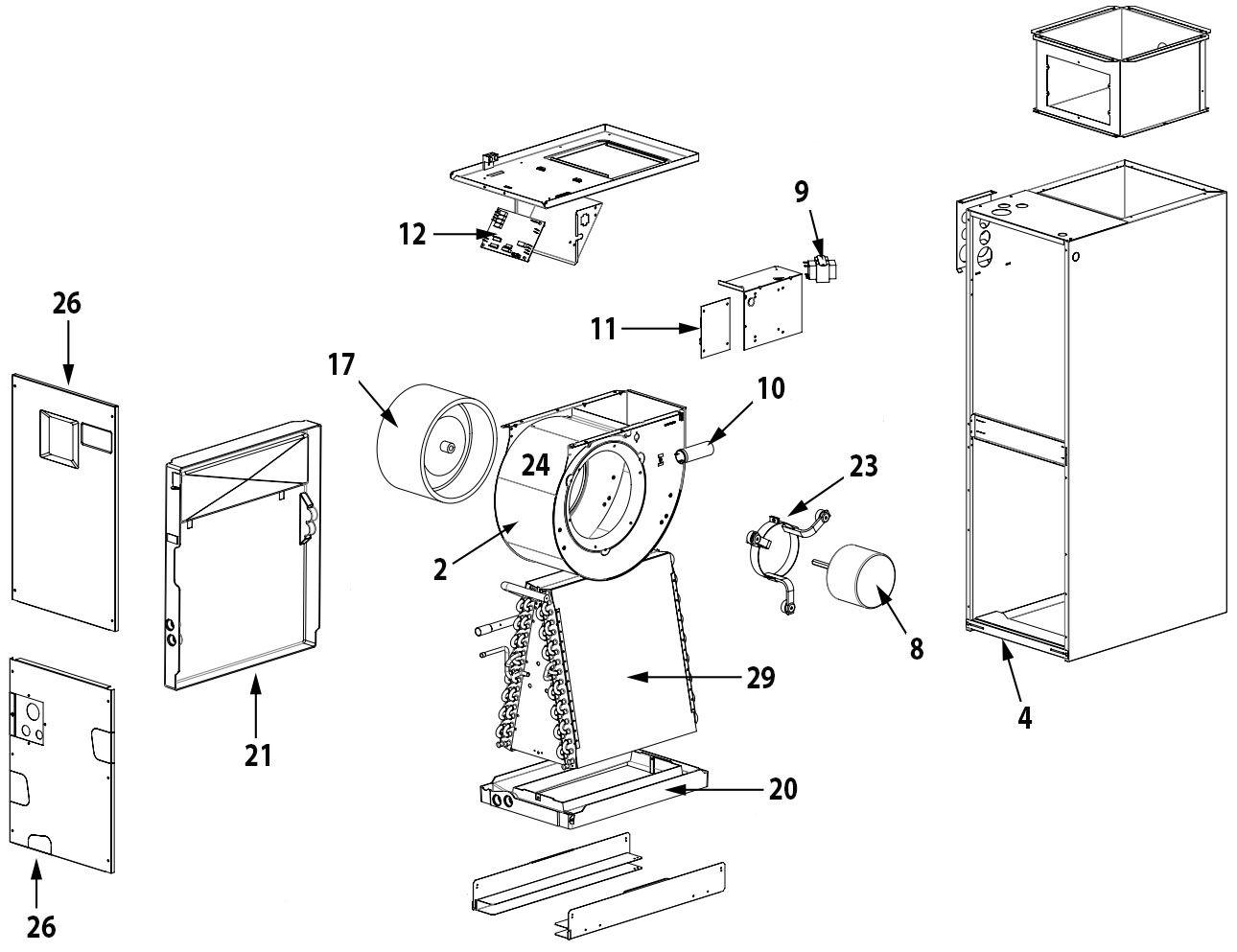

B6EMMX Diagram
+2

B6EMMX SERIES - Air Handler

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU B6EMMX
$0.00
B6EMMX24K-A, B6EMMX24K-B, B6EMMX30K-A, B6EMMX30K-B, B6EMMX36K-B, B6EMMX42K-B, B6EMMX48K-C, B6EMMX60K-C
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
B6EMMX SERIES - Air Handler
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details
# DESCRIPTION
BSEMMX
24K-A
BSEMMX
X24K-B
BSEMMX
X30K-A
BSEMMX
X30K-B
BSEMMX
X36K-B
BSEMMX
X42K-B
BSEMMX
X48K-C
BSEMMX
X60K-C
PART # PRICE
921155 921156 921157 921158 921159 921160 921162 921163
1 Plate - Close-Off (Not Shown) 226420R 226420R 226420R 226420R 226420R 226420R 226420R 226420R -
2 Blower Housing 297210R 297217R 297210R 297217R 297217R 297217R 297219R 297219R -
3 Panel - Top 921877 921878 921877 921878 921878 921878 921879 921879 -
4 Door- Filter 921874 921875 921874 921875 921875 921875 921876 921876 -
5 Plate- Tube Close-Off (Not Shown) 921880 921880 921880 921880 921880 921880 921880 921880 -
6 Harness - FSHE/VSHE, Upper (Not Shown) 2C0251R 2C0251R 2C0251R 2C0251R 2C0251R 2C0251R 2C0251R 2C0251R -
7 Harness - FSHE, Lower (Not Shown) 2C0252R 2C0252R 2C0252R 2C0252R 2C0252R 2C0252R 2C0252R 2C0252R -
8 Motor - Blower 622500R 622500R 622500R 622500R 622500R 622500R 622501R 622501R -
9 Transformer 622336R 622336R 622336R 622336R 622336R 622336R 622336R 622336R -
10 Capacitor - - - - - - - - -
11 Board - Control 624736R 624736R 624736R 624736R 624736R 624736R 624736R 624736R -
12 Board - Motor Control 624756R 624756R 624756R 624756R 624756R 624756R 624756R 624756R -
13 Dual Grounding Lug - (Not Shown) 632235R 632235R 632235R 632235R 632235R 632235R 632235R 632235R -
14 Plug - Drain Pan (Not Shown) 663351R 663351R 663351R 663351R 663351R 663351R 663351R 663351R -
15 Dist - Assy (Not Shown) 664588R 663588R 664588R 664588R 664588R 664588R 664588R 664588R -
16 Plug - Circular, Plastic 1-3/4" (Not Shown) 663710R 663710R 663710R 663710R 663710R 663710R 663710R 663710R -
17 Wheel - Blower
Wheel - Blower
667251R
-
-
667258R
667251R -
667258R
-
667258R
-
667258R
667280R
-
667280R
-
-
230257

$107.01
18 Rod - Coil Support (Not Shown) 669100R 669100R 669100R 669100R 669100R 669100R 669100R 669100R -
19 Valve - TXV (Not Shown)
Valve - TXV (Not Shown)
Valve - TXV (Not Shown)
Valve - TXV (Not Shown)
Valve - TXV (Not Shown)
Valve - TXV (Not Shown)
669564R
-
-
-
-
-
669564R
-
-
-
-
-
-
669565R
-
-
-
-
-
669565R
-
-
-
-
-
-
669566R
-
-
-
-
-
-
669567R
-
-
-
-
-
-
669568R
-
-
-
-
-
-
669578R
107330
107331
107332
107333
107334
-
$150.58
$150.58
$152.19
$145.33
$137.82
-
20 Drain Pan - Vertical 669855R 669855 669855R 669855R 669856R 669856R 669857R 669857R -
21 Drain Pan - Horizontal
Drain Pan - Horizontal
669919R
-
-
669920R
669919R
-
-
669920R
-
669920R
-
669920R
669921R
-
669921R
-
-
102100

$203.50
22 Paint - Gray Spray (Not Shown) 903598 903598 903598 903598 903598 903598 903598 903598 -
23 Belly-Band 913871 903489 913871 903489 903489 903489 903489 903489 -
24 Blower - Assembly 921850 921865 921850 921865 921865 921865 921862 921862 -
25 Electrical Assembly - (Not Shown) M006
3802R
M006
3802R
M006
3802R
M006
3802R
M006
3802R
M006
3802R
M006
3802R
M006
3802R
-
26 Doors 921867 921868 921867 921868 921869 921869 921870 921870 -
27 Set of Wires - (Not Shown) 921883 921883 921883 921883 921883 921883 921883 921883 -
28 Fuse - 3 AMP (Not Shown) 632261R 632261R 632261R 632261R 632261R 632261R 632261R 632261R 233102 $10.21
29 Coil - Replacement
Coil - Replacement
Coil - Replacement
921482
-
-
-
921483
-
921482
-
-
-
921483
-
-
921484
-
-
921484
-
-
-
921486
-
-
921486
108250
-
108254
$1044.27

$1737.46
Tube Kit - (for replacement coil) 921732 921733 921732 921733 921734 921734 921736 921736 -
TXV Kit - (for replacement coil)
TXV Kit - (for replacement coil)
TXV Kit - (for replacement coil)
TXV Kit - (for replacement coil)
920668A
-
-
-
920668A
-
-
-
-
920669A
-
-
-
920669A
-
-
-
-
920670A
-
-
920671A
-
-
-
-
-
920672A
-
920673A
-
-
108266
-
108268
107339
$160.06

$174.46
$168.26
