B6BMM0 SERIES - AIR HANDLER

Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
SKU B6BMM
$0.00
B6BMM-024K-A, B6BMM-024K-B, B6BMM-030K-A, B6BMM-030K-B, B6BMM-036K-B, B6BMM-042K-B, B6BMM-048K-B, B6BMM-048K-C, B6BMM-060K-C
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
B6BMM0 SERIES - AIR HANDLER
Home/Store/MH CATALOG/HEATING & COOLING/MILLER / NORDYNE / INTERTHERM ILLUSTRATIONS
Product Details

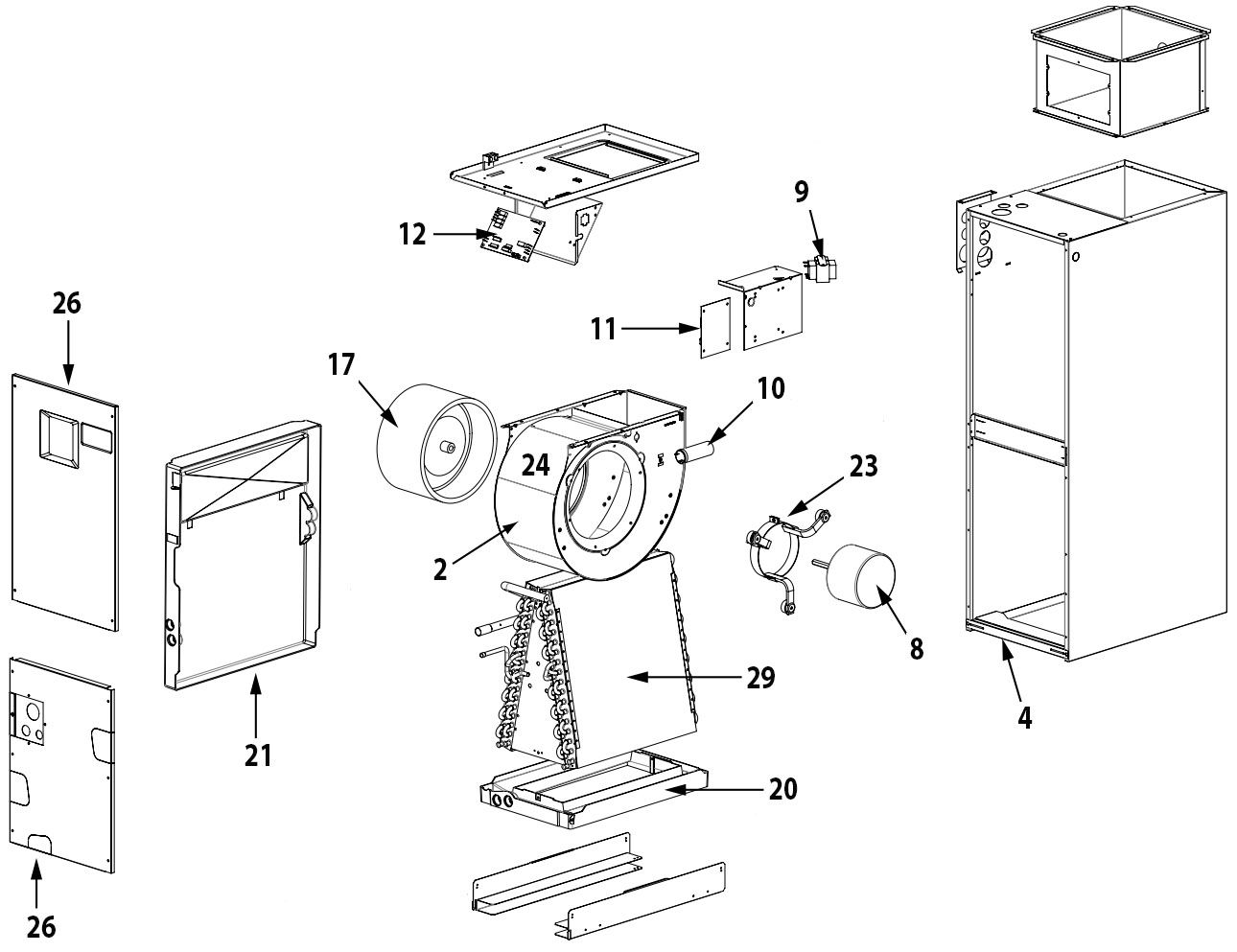

# DESCRIPTION B6BMM
024K-A
B6BMM
024K-B
B6BMM
030K-A
B6BMM
030K-B
B6BMM
036K-B
B6BMM
042K-B
B6BMM
048K-B
B6BMM
048K-C
B6BMM
060K-C
PART # PRICE
921145 921146 921147 921148 921150 921151 921152 921153 921154
1 Plate - Close-Off (Not Shown) 226420R 226420R 226420R 226420R 226420R 226420R 226420R 226420R 226420R -
2 Blower Housing 297210R 297212R 297210R 297212R 297212R 297212R 297212R 297214R 297219R -
3 Panel - Top 921877 921878 921877 921878 921878 921878 921878 921879 921879 -
4 Door- Filter 921874 921875 921874 921875 921875 921875 921875 921876 921876 -
5 Plate- Tube Close-Off (Not Shown) 921880 921880 921880 921880 921880 921880 921880 921880 921880 -
6 Harness - FSHE/VSHE, Upper (Not Shown) - - - - - - - - 2C0251R -
7 Harness - FSHE, Lower (Not Shown) - - - - - - - - 2C0252R -
8 Motor - Blower 622257R 622257R 622264R 622258R 622258R 622260R 622260R 622261R 622501R -
9 Transformer 622336R 622336R 622336R 622336R 622336R 622336R 622336R 622336R 622336R -
10 Capacitor 622535R 622535R 622550R 622545R 622545R 622545R 622545R 622549R - -
11 Board - Control
Board - Control
624735R
-
624735R
-
624735R
-
624735R
-
624735R
-
624735R
-
624735R
-
624735R
-
-
624736R
101045
-
$113.06
-
12 Board - Motor Control - - - - - - - - 624756R -
13 Dual Grounding Lug - (Not Shown) 632235R 632235R 632235R 632235R 632235R 632235R 632235R 632235R 632235R -
14 Plug - Drain Pan (Not Shown) 663351R 663351R 663351R 663351R 663351R 663351R 663351R 663351R - -
15 Dist - Assy (Not Shown) 664593R 664593R 664593R 664593R 664593R 664593R 664593R 664593R 664593R -
16 Plug - Circular, Plastic 1-3/4" (Not Shown) 663710R 663710R 663710R 663710R 663710R 663710R 663710R 663710R - -
17 Wheel - Blower
Wheel - Blower
667251R
-
-
667037R
667251R -
667037R
-
667037R
-
667037R
-
667037R
667207R
-
667280R
-
-
231026

$101.92
18 Rod - Coil Support (Not Shown) 669100R 669100R 669100R 669100R 669100R 669100R 669100R 669100R 669100R -
19 Valve - TXV (Not Shown) - - - - - - - - - -
20 Drain Pan - Vertical
Drain Pan - Vertical
669919
-
-
669920R
669919R
-
-
669920R
-
669920R
-
669920R
-
669920R
669921R
-
669921R
-
-
102100

$203.66
21 Drain Pan - Horizontal 669855R 669855R 669855R 669855R 669855R 669856R 669856R 669857R 669857R -
22 Paint - Gray Spray (Not Shown) 903598 903598 903598 903598 903598 903598 903598 903598 903598 -
23 Belly-Band 913871 913871 913871 913871 913871 913871 913871 913871 903489 -
24 Blower - Assembly 921852 921858 921849 921854 921854 921866 921866 921847 921862 -
25 Electrical Assembly - (Not Shown) M006
3801R
M006
3801R
M006
3801R
M006
3801R
M006
3801R
M006
3801R
M006
3801R
M006
3801R
M006
3802R
-
26 Doors 921867 921868 921867 921868 921868 921869 921869 921870 921870 -
27 Set of Wires - (Not Shown) 921881 921881 921881 921881 921881 921881 921881 921881 921883 -
28 Fuse - 3 AMP (Not Shown) 632261R 632261R 632261R 632261R 632261R 632261R 632261R 632261R 632261R 233102 $10.21
29 Microchannel Coil
Microchannel Coil
Microchannel Coil
Microchannel Coil
921482
-
-
-
-
921483
-
-
921482
-
-
-
-
921483
-
-
-
921483
-
-
-
921484
-
-
-
921484
-
-
-
-
921485
-
-
-
-
921486
108250
-
108253
108254
$1044.27

$1471.76
$1737.46
Show More
