B6BM-X SERIES Air Handler
SKU B6BM-X
$0.00
B6BM-X24K-A, B6BM-X24K-B, B6BM-X30K-A, B6BM-X30K-B, B6BM-X36K-B, B6BM-X42K-B, B6BM-X48K-C, B6BM-X60K-C
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
B6BM-X SERIES Air Handler
Product Details

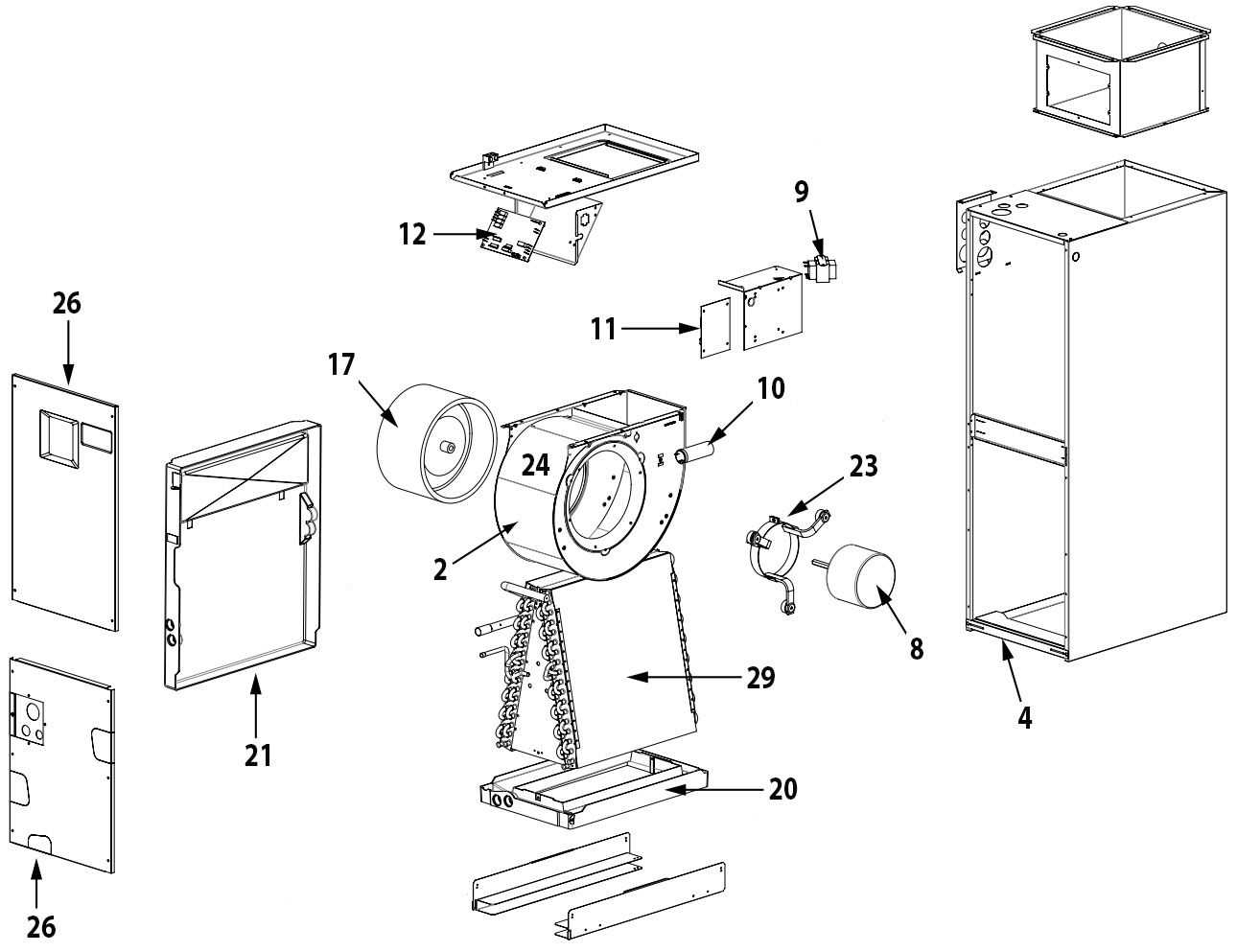

| # | DESCRIPTION | B6BM- X24K-A |
B6BM- X24K-B |
B6BM- X30K-A |
B6BM- X30K-B |
B6BM- X36K-B |
B6BM- X42K-B |
B6BM- X48K-C |
B6BM- X60K-C |
PART # | PRICE |
| 921312 | 921313 | 921314 | 921315 | 921316 | 921317 | 921318 | 921319 | ||||
| 1 | Plate - Close-Off (Not Shown) | 226420R | 226420R | 226420R | 226420R | 226420R | 226420R | 226420R | 226420R | - | |
| 2 | Blower Housing | 297210R | 297212R | 297210R | 297212R | 297212R | 297212R | 297214R | 297219R | - | |
| 3 | Panel - Top | 921877 | 921878 | 921877 | 921878 | 921878 | 921878 | 921879 | 921879 | - | |
| 4 | Door- Filter | 921874 | 921875 | 921874 | 921875 | 921875 | 921875 | 921876 | 921876 | - | |
| 5 | Plate- Tube Close-Off (Not Shown) | 921880 | 921880 | 921880 | 921880 | 921880 | 921880 | 921880 | 921880 | - | |
| 6 | Harness - FSHE/VSHE, Upper (Not Shown) | - | - | - | - | - | - | - | 2C0251R | - | |
| 7 | Harness - FSHE, Lower (Not Shown) | - | - | - | - | - | - | - | 2C0252R | - | |
| 8 | Motor - Blower | 622257R | 622257R | 622264R | 622258R | 622258R | 622260R | 622261R | 622501R | - | |
| 9 | Transformer | 622336R | 622336R | 622336R | 622336R | 622336R | 622336R | 622336R | 622336R | - | |
| 10 | Capacitor | 622535R | 622535R | 622550R | 622545R | 622545R | 622545R | 622549R | - | - | |
| 11 | Board - Control Board - Control |
624735R - |
624735R - |
624735R - |
624735R - |
624735R - |
624735R - |
624735R - |
- 624736R |
101045 - |
$113.06 - |
| 12 | Board - Motor Control | - | - | - | - | - | - | - | 624756R | - | |
| 13 | Dual Grounding Lug - (Not Shown) | 632235R | 632235R | 632235R | 632235R | 632235R | 632235R | 632235R | 632235R | - | |
| 14 | Plug - Drain Pan (Not Shown) | 663351R | 663351R | 663351R | 663351R | 663351R | 663351R | 663351R | - | - | |
| 15 | Dist - Assy (Not Shown) | 664256R | 663830R | 664257R | 664219R | 664219R | 664219R | 663586R | 663586R | - | |
| 16 | Plug - Circular, Plastic 1-3/4" (Not Shown) | 663710R | 663710R | 663710R | 663710R | 663710R | 663710R | 663710R | - | - | |
| 17 | Wheel - Blower Wheel - Blower |
667251R - |
- 667037R |
667251R | - 667037R |
- 667037R |
- 667037R |
667207R - |
667280 - |
- 231026 |
$101.92 |
| 18 | Rod - Coil Support (Not Shown) | 669100R | 669100R | 669100R | 669100R | 669100R | 669100R | 669100R | 669100R | - | |
| 19 | Valve - TXV (Not Shown) Valve - TXV (Not Shown) Valve - TXV (Not Shown) Valve - TXV (Not Shown) Valve - TXV (Not Shown) Valve - TXV (Not Shown) |
669564R - - - - - |
669564R - - - - - |
- 669565R - - - - |
- 669565R - - - - |
- - 669566R - - - |
- - - 669567R - - |
- - - - 669568R - |
- - - - - 669578R |
107330 107331 107332 107333 107334 - |
$150.58 $150.58 $152.19 $145.33 $137.82 - |
| 20 | Drain Pan - Vertical Drain Pan - Vertical |
669919 - |
- 669920R |
669919R - |
- 669920R |
- 669920R |
- 669920R |
669921R - |
669921R - |
- 102100 |
$203.50 |
| 21 | Drain Pan - Horizontal | 669855R | 669855R | 669855R | 669855R | 669856R | 669856R | 669857R | 669857R | - | |
| 22 | Paint - Gray Spray (Not Shown) | 903598 | 903598 | 903598 | 903598 | 903598 | 903598 | 903598 | 903598 | - | |
| 23 | Belly-Band | 913871 | 913871 | 913871 | 913871 | 913871 | 913871 | 913871 | 903489 | - | |
| 24 | Blower - Assembly | 921852 | 921858 | 921849 | 921854 | 921854 | 921856 | 921847 | 921862 | - | |
| 25 | Electrical Assembly - (Not Shown) | M006 3801R |
M006 3801R |
M006 3801R |
M006 3801R |
M006 3801R |
M006 3801R |
M006 3801R |
M006 3802R |
- | |
| 26 | Doors | 921867 | 921868 | 921867 | 921868 | 921869 | 921869 | 921870 | 921870 | - | |
| 27 | Set of Wires - (Not Shown) | 921881 | 921881 | 921881 | 921881 | 921881 | 921881 | 921881 | 921883 | - | |
| 28 | Fuse - 3 AMP (Not Shown) | 632261R | 632261R | 632261R | 632261R | 632261R | 632261R | 632261R | 632261R | 233102 | $10.21 |
| 29 | Coil - Replacement Coil - Replacement |
921951 - |
- 921952 |
921951 - |
- 921952 |
921953 - |
921953 - |
921955 - |
921955 - |
- 108257 |
$1125.81 |
| Tube Kit - (for replacement coil) | 921287 | 921288 | 921287 | 921288 | 921289 | 921289 | 921291 | 921291 | - | ||
| TXV Kit - (for replacement coil) TXV Kit - (for replacement coil) TXV Kit - (for replacement coil) TXV Kit - (for replacement coil) |
920668A - - - |
920668A - - - |
- 920669A - - |
- 920669A - - |
- - 920670A - |
- 920671A - - |
- - - 920672A |
- 920673A - - |
108266 - 108268 107339 |
$160.06 $174.46 $168.26 |
