ATWOOD HE0601
Home/Store/RV CATALOG/APPLIANCES/Refrigerator Diagrams
Product Details
Brand: ATWOOD

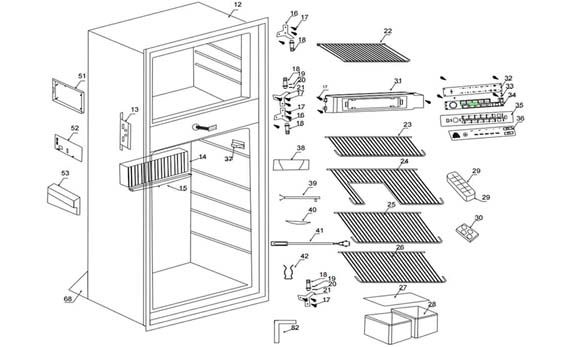

# Description MFG # Part # Price
0 Shelf Clips - Not Shown 14026 -
13 Latchplate - 14017 -
14 Fin - Aluminum 14051 -
15 Tray Assy - Drip 14027 -
16 Cabinet Hinge - Top (Includes 16-18) 14013 -
Cabinet Hinge - Bottom (Includes 18-20) 14014 -
21 Hinge Kit - Cabinet (Includes 17-21) 14052 -
22 Shelf - Freezer 14025 -
23 Shelf - Top Cabinet Narrow 14021 -
24 Shelf - Mid Cabinet Notched 14022 -
25 Shelf - Mid Cabinet 14030 -
27 Shelf - Plastic Crisper 14024 -
28 Bins - Crisper 14031 -
30 Tray - Egg 14015 -
31 Panel Assm - Display Board (Includes 31-36 & 17) 14004 -
32 Display Board PCB - 14003 -
37 Switch - Door 14045 -
41 Thermister Kit - (Includes 41 & 42) 14029 -
51 Powerboard Box - (Includes 51 & 53) 14034 -
52 Powerboard PCB - 14002 -
68 Bracket - Bottom Back 14058 -

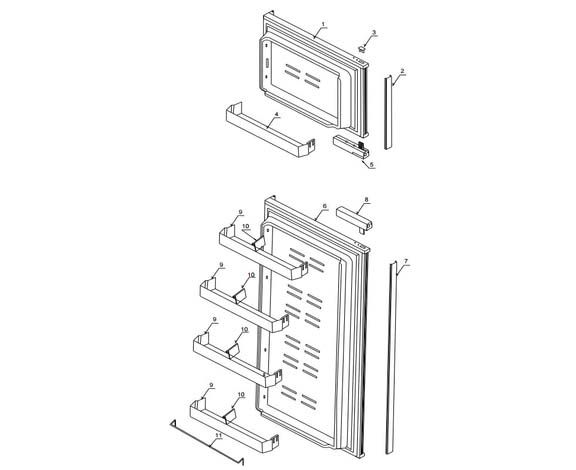

# Description MFG # Part # Price
0 Door Panel - Cabinet, 6 CU FT, Black (Not Shown) 14062 -
0 Door Panel - Freezer, Black (Not Shown) 14063 -
0 Door Panel Set - 6 CU FT, Black (Not Shown) 14065 -
1 Door Assm - Freezer (Includes 2 & 3) 14007 -
2 Panel Retainer - Freezer Door 14010 -
4 Bin - Freezer Door 14019 -
5 Handle Assm - Upper Door 14005 -
6 Cabinet Door Assm - 6 CU FT (Includes 7 & 3) 14008 -
7 Panel retainer - Cabinet Door, HE-0601 14011 -
8 Handle Assm - Lower Door 14006 -
9 Bin - Cabinet Door 14018 -
10 Spacer - Bin 14020 -
11 Retainer - Wire Bottle 14060 -

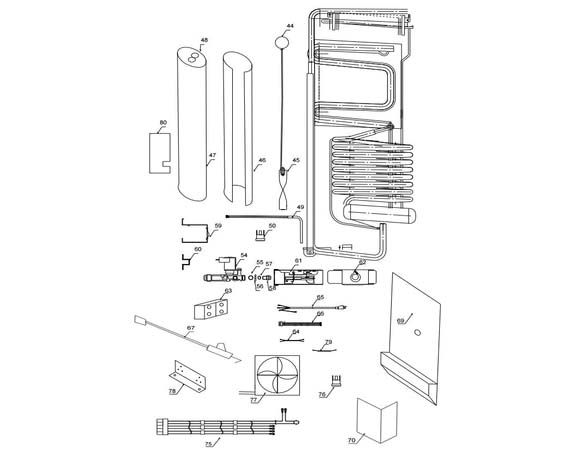

# Description MFG # Part # Price
43 Cooling System Replacement - 6 CU FT - NLA (Includes items 44-48 & 80) 14049 -
44 Canister Assm - 6 CU FT (Includes Items 44-48 & 80) 14043 -
49 Element - Heating 120V 300W 14044 -
50 Switch - Thermal Cutoff (TCO) 14042 -
54 Gas Valve Assm - (Includes 54-55 & 57-58) 14035 -
58 Adapter Assm - Orifice (Jet) 14048 -
60 Bracket - Gas Valve 14016 -
61 Tube - Burner 14038 -
62 Bracket Assm - Burner (Includes 59) 14039 -
63 Terminal Block - +12VDC 14054 -
64 Wire - DC Connection 14055 -
64 Cord - Power 14056 -
66 Wire - Gas Valve Connection 14057 -
67 Wire - Spark Electrode use 14068 or 14069 14036 -
Service Kit - Electrode (Old Style) 14068 -
Service Kit - Electrode (New Style) 14069 -
70 Windshield - Burner Box 14040 -
77 Fan - 14046 -
Fan Kit Assm - (Includes 75-78) 14047 -
79 Wire - Grounding 14037 -

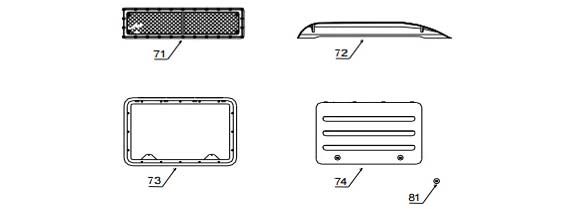

# Description MFG # Part # Price
71 Vent Assm - Roof (White) use 3311236.000 13004 -
Vent Assm - Roof (Grey) 13005 -
Vent Assm - Roof (Black) 13006 -
72 Vent Assm - Roof (White) use 3311236.000 13004 -
Vent Assm - Roof (Grey) 13005 -
Vent Assm - Roof (Black) 13006 -
73 Vent Assm - Side (White) 13001 -
Vent Assm - Side (Grey) 13002 -
Vent Assm - Side (Black) 13003 -
73 Vent Assm - Side (White) 13001 -
Vent Assm - Side (Grey) 13002 -
Vent Assm - Side (Black) 13003 -
