ATWOOD GCH6A10E
SKU GCH6A10E
$0.00
GCH6A10E
Available Components
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
ATWOOD GCH6A10E

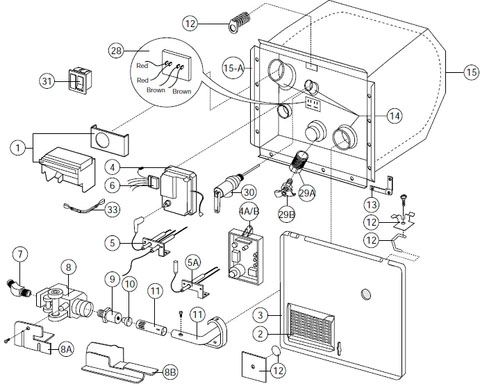

Product Details
| # | Description | MFG # | Part # | Price |
| 1 | Flue Box & Gasket | 90960 | - | |
| 2 | Grille - Only (New Style Door) | 92640 | - | |
| 3 | Door - White - 6 Gal. Use 91386 | 91502 | - | |
| Door - Access - 6 Gal. PW | 91386 | 140058 | $59.81 | |
| Cover - Access - Use 91514 | 91507 | 140054 | $79.10 | |
| Door - Col. White - 6 Gal. | 91514 | - | ||
| 4 | Circuit Board - Use 93851 | 91226 | - | |
| 4B | PC Board Potted - Combo Use 91365 | 93851 | 140004 | $263.44 |
| Potted Circuit Board Kit - w/Fuse | 91365 | 140004 | $263.44 | |
| 5 | Electrode - (Local Sense) | 93868 | 140152 | $43.73 |
| 6 | Harness - Wiring Combo Use Dometic 93315 | 93191 | - | |
| 7 | Elbow - 45 Degree (3/8 x 3/8) | 91044 | - | |
| 8 | T-Stat - Gas Use 93870 | 93869 | - | |
| Valve - White Rogers Use 93844 | 93870 | - | ||
| Solenoid Valve - White Rogers See Notes For Use#s | 93844 | - | ||
| Gas Valve Assembly - w/Orifice 6 Gal. | 92078 | 140188 | $199.73 | |
| 8A | Bracket - For 6 Gal Gas Va;lve Use 94787 - Use with 93870 | 93243 | - | |
| 8B | Bracket - Gas Valve - One Piece | 94787 | - | |
| 9 | Holder - Orifice | 91563 | - | |
| 10 | Orifice - Main Burner Use Dometic Part# 92743 | 92742 | - | |
| 11 | Burner - Main | 91638 | 140010 | $41.47 |
| 12 | Hardware Kit - Door | 91858 | 140101 | $18.90 |
| 13 | Brackets - Corner | 91928 | - | |
| 14 | Kit - Ring & Gasket | 96010 | 140041 | $35.82 |
| 15 | Tank Cover - Bottom Use 93100 | 92220 | - | |
| Tank Cover - Top Use 93100 | 92221 | - | ||
| Kit - Tank Cover | 93100 | - | ||
| 15A | Drawn Pan - Electronic | 91802 | - | |
| 28 | Eco / T-Stat - Assy | 91447 | 140046 | $19.85 |
| 29A | Plug - Drain 1/2 Use 91857 | 91561 | - | |
| Plug - Drain 1/2 (2 Pk) | 91857 | 140102 | $ 9.07 | |
| 30 | Valve - Pressure Relief (1/2 NPT 150 PSI) | 91604 | 140012 | $32.94 |
| 31 | Switch Kit - 12 VDC - Combo | 91230 | 140371 | $15.34 |
| 33 | Thermal Cut-Off - 190 Degree | 93866 | 140150 | $28.80 |
| NS | Fuse - 2 AMP Mini | 90145 | - | |
| NS | Fuse - 2 AMP Mini | 90145 | - | |
| NS | Kit - Inner Tank | 91053 | - | |
| NS | Junction Box - 110V | 91222 | - | |
| NS | T-Stat - 130 Degree - Front Mount | 91470 | 140011 | $16.85 |
| NS | Rubber Grommet - Gas Line | 92610 | - | |
| NS | Cover Kit - Tank | 93100 | 140050 | $39.99 |
| NS | Thermostat - Electronic Adj | 93105 | 140016 | $56.59 |
| NS | Relay Kit - T-Stat | 93849 | 140007 | $17.58 |
| NS | Element - Use 92249 | 91160 | - | |
| NS | Element & Gasket Kit - 110V (Screw In) - NLA | 92249 | - |
